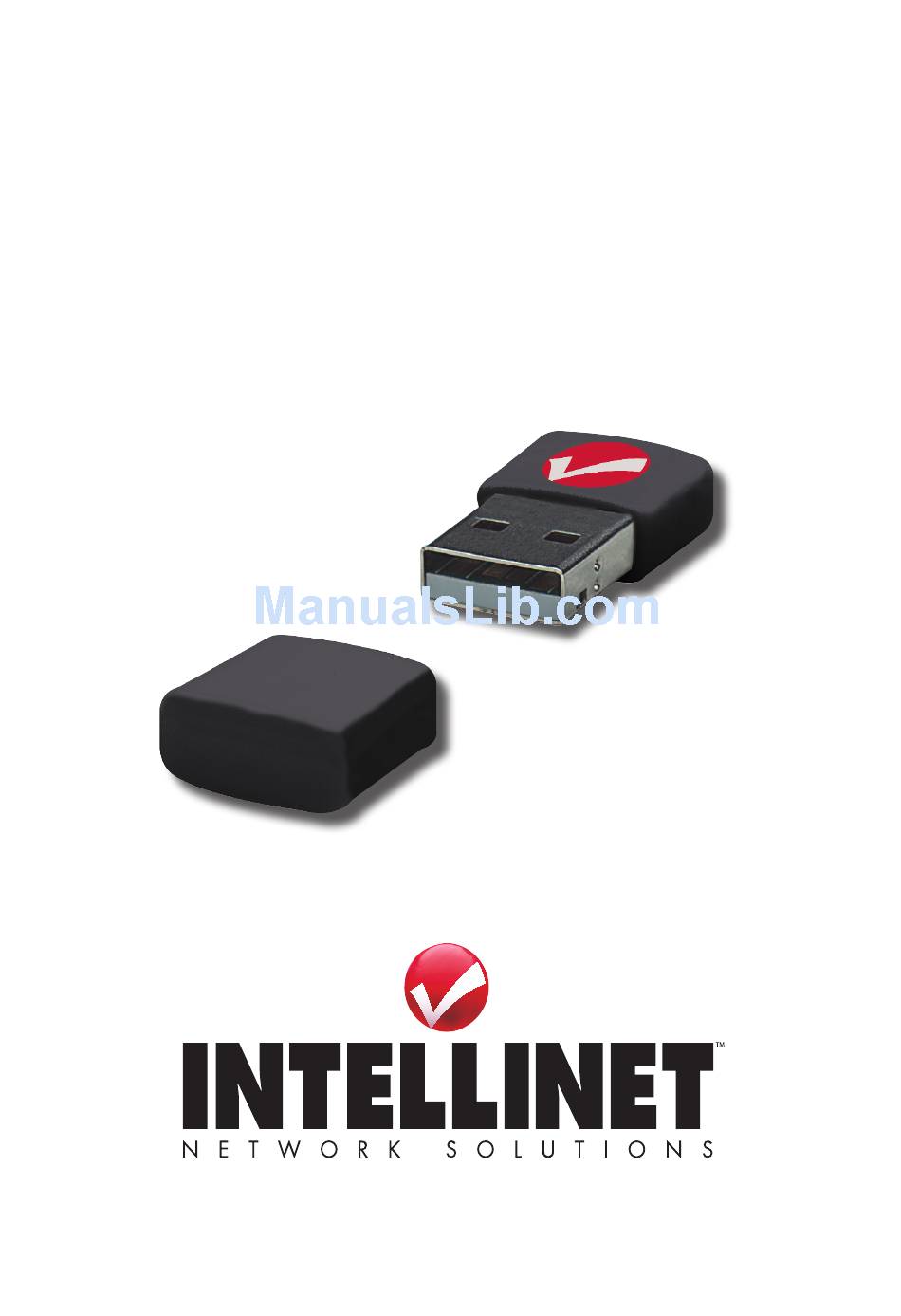

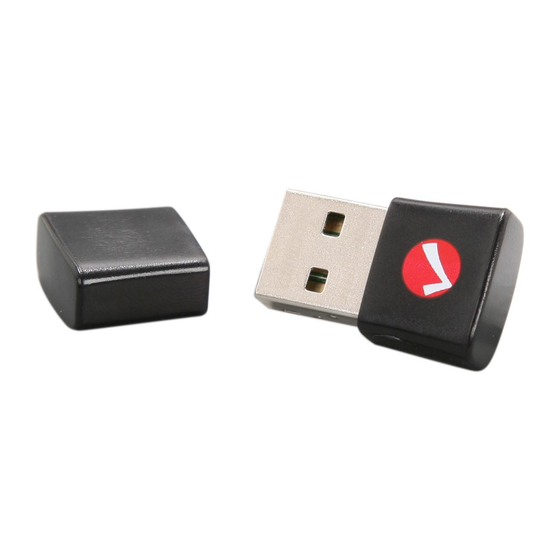

- Page 1 Wireless 150N UsB MiNi AdApter User MANUAl Model 524773 INT-524773-UM-1009-01...
- Page 2 Thank you for purchasing the INTellINeT NeTWoRK SolUTIoNS Wireless ™ 150N USB Mini Adapter, Model 524773. This ultra-compact high-speed adapter lets you connect your notebook or desktop PC to wireless networks faster than ever before, with link speeds of up to 150 Mbps.
-
Page 3: Table Of Contents
CoNteNts inStallation ....................5 Installing the driver and Utility ..............5 Connecting to a Wireless Access Point ..........7 ConFiguration utility ................10 General ....................11 Profile ....................12 Available Network ................16 Status ....................17 Statistics ....................18 Wi-Fi Protected Setup ................18 2.6.1 Network Setup Using PIN Input Config ........18 2.6.2 Network Setup Using Push Button Config ......20 SoftAP ....................21... -
Page 4: Fcc Caution
FCC Caution This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Installation
Utility screens displays, click “Next.” intellinet netWorK SolutionS Wireless 150n uSB mini adapter driver and utility The InstallShield Wizard will install the INTellINeT NeTWoRK SolUTIoNS Wireless 150N USB Mini Adapter driver and Utility on your computer. To continue, click “Next.”... - Page 6 4. When the next screen intellinet netWorK SolutionS displays, click “Install” to begin the installation. on any of the screens where they appear, click “Back” to return to a previous screen; click “Cancel” to exit the wizard. 5. The Setup Status screen...
-
Page 7: Connecting To A Wireless Access Point
“Open Config Utility” option from the popup menu. 2. When the Utility screen intellinet netWorK SolutionS Wireless 150n uSB mini adapter utility displays, click on the Available Network menu tab, then double-click the... - Page 8 Windows Zero Configuration Option for Vista Windows Vista users can connect to a wireless access point using the Windows Zero Configuration option. 1. Go to Start, then Control Panel on the desktop, then select Network and Internet. 2. With the Network and Internet screen displayed, select “Connect to a...
- Page 9 3. Highlight the access point you want to use (if it’s shown), then click “Connect.” 4. If it’s an unnamed access point (i.e., the SSId of the wireless AP is hidden), you’ll be prompted to input its name, which must be entered exactly —...
-
Page 10: Configuration Utility
6. once the message “Successfully connected...” (between your computer and the wireless AP you selected) displays, click “Close” to start the network connection. 2 CoNfigUrAtioN Utility The Configuration Utility is a powerful application that helps you configure the Wireless 150N USB Mini Adapter and monitor the link status and the statistics during the communication process. -
Page 11: General
Windows Zero Config: Select to configure the adapter using Windows XP Zero Configuration. 2.1 general This screen is primarily for checking connection-related items and information about the selected adapter, some of which — Status, Speed, Signal Strength, intellinet netWorK SolutionS utililty INTellINeT NeTWoRK Sol HiMom CONfIGURATION... -
Page 12: Profile
2.2 Profile This screen helps you manage the networks you connect to frequently. By creating and using profiles, you can avoid the need to re-establish settings each time you make a connection. intellinet netWorK SolutionS utililty INTellINeT NeTWoRK Sol CONfIGURATION... - Page 13 Available Profile(s): This list shows the preferred networks for the wireless connection. You can add, remove, edit and duplicate the preferred networks, and you can also set one of the networks as the default connection. Add/Remove/Edit: Click with a profile selected to make desired changes. Duplicate: Click to create a new profile with the same settings as the current one.
- Page 14 mode (connecting to another wireless adapter in the WLAN without an access point or router) vs. Infrastructure mode (which connects through an AP or router). Channel: This setting is only available for Ad Hoc mode. Select the radio channel used for the network you’re connecting to. Network Authentication: This setting needs to be consistent with the wireless networks the adapter is intended to be connected to.
- Page 15 • TKIP (Temporal Key Integrity Protocol) changes the temporal key every 10,000 packets. (A packet is a kind of message transmitted over a network.) This ensures much greater security than standard WeP security. • AES has been developed to ensure the highest degree of security and authenticity for digital information.
-
Page 16: Available Network
SolutionS utililty INTellINeT NeTWoRK Sol CONfIGURATION... -
Page 17: Status
This screen shows information about the manufacturer, driver version, settings of the wireless network the adapter is connecting to (helpful if you don’t know this when you’re trying to establish a connection), linking time and link status. intellinet netWorK SolutionS utililty INTellINeT NeTWoRK Sol INTELLINET NETWORK SOLUTIONS... -
Page 18: Statistics
You can get the real-time information about packet transmissions and the receiving status during wireless communications from this screen. To update the statistics values, click “Reset.” intellinet netWorK SolutionS utililty INTellINeT NeTWoRK Sol 2.6 Wi-Fi Protected Setup (WPS) Wi-Fi Protected Setup (WPS) is the latest wireless network technology and makes wireless network setup very simple. - Page 19 SolutionS utililty INTellINeT NeTWoRK Sol 2. Click “Pin Input Config (PIN)” and the prompt at right will display. Click “Yes” to select a specific wireless access point or click “No” to start the PIN method of WPS. 3. If you click “Yes,” the prompt at right will display.
-
Page 20: Network Setup Using Push Button Config
4. A Status screen will display to indicate the progress of the procedure, which can take up to two minutes or so. If a wireless access point with the correct PIN code is found, you’ll be connected to it. 2.6.2 netWorK SetuP uSing PuSh Button ConFig (PBC) 1. -
Page 21: Ap General / Properties Settings
SolutionS utililty INTellINeT NeTWoRK Sol CONfIGURATION... -
Page 22: Softap
The Wireless 150N USB Mini Adapter can also be used as a wireless access point. On any of the menu screens, go to Mode(M) and select “Access Point.” 2.7.1 general intellinet netWorK SolutionS utililty INTellINeT NeTWoRK Sol SSID: The SSID (up to 32 printable ASCII... -
Page 23: Ap Advanced
2.7.2 AP ADVANCED intellinet netWorK SolutionS utililty INTellINeT NeTWoRK Sol Beacon Interval: Specify the duration between beacon packets (milliseconds). The range for the beacon period is 20-1000 milliseconds, with a typical value of 100. DTIM Period: This is the sending interval of the AP’s traffic broadcast. The default value is 3 beacons. -
Page 24: Ap Statistics
You can get the real-time information about packet transmissions and the receiving status during wireless communications from this screen. To update the statistics values, click “Reset.” intellinet netWorK SolutionS utililty INTellINeT NeTWoRK Sol 2.7.4 iCS To connect to the Internet through this adapter using SoftAP, you need to make a bridge between SoftAP and the Internet connection. -
Page 25: Specifications
3 speCifiCAtioNs Standards • IEEE 802.11b (11 Mbps Wireless LAN) • IEEE 802.11g (54 Mbps Wireless LAN) • IEEE 802.11e (QoS Enhancement WMM) • Upward compatible to IEEE 802.11n draft 2.0 (150 Mbps Wireless LAN) general • Interface: Hi-Speed USB 2.0 •... - Page 26 INTELLINET NETWORK SOLUTIONS ™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
