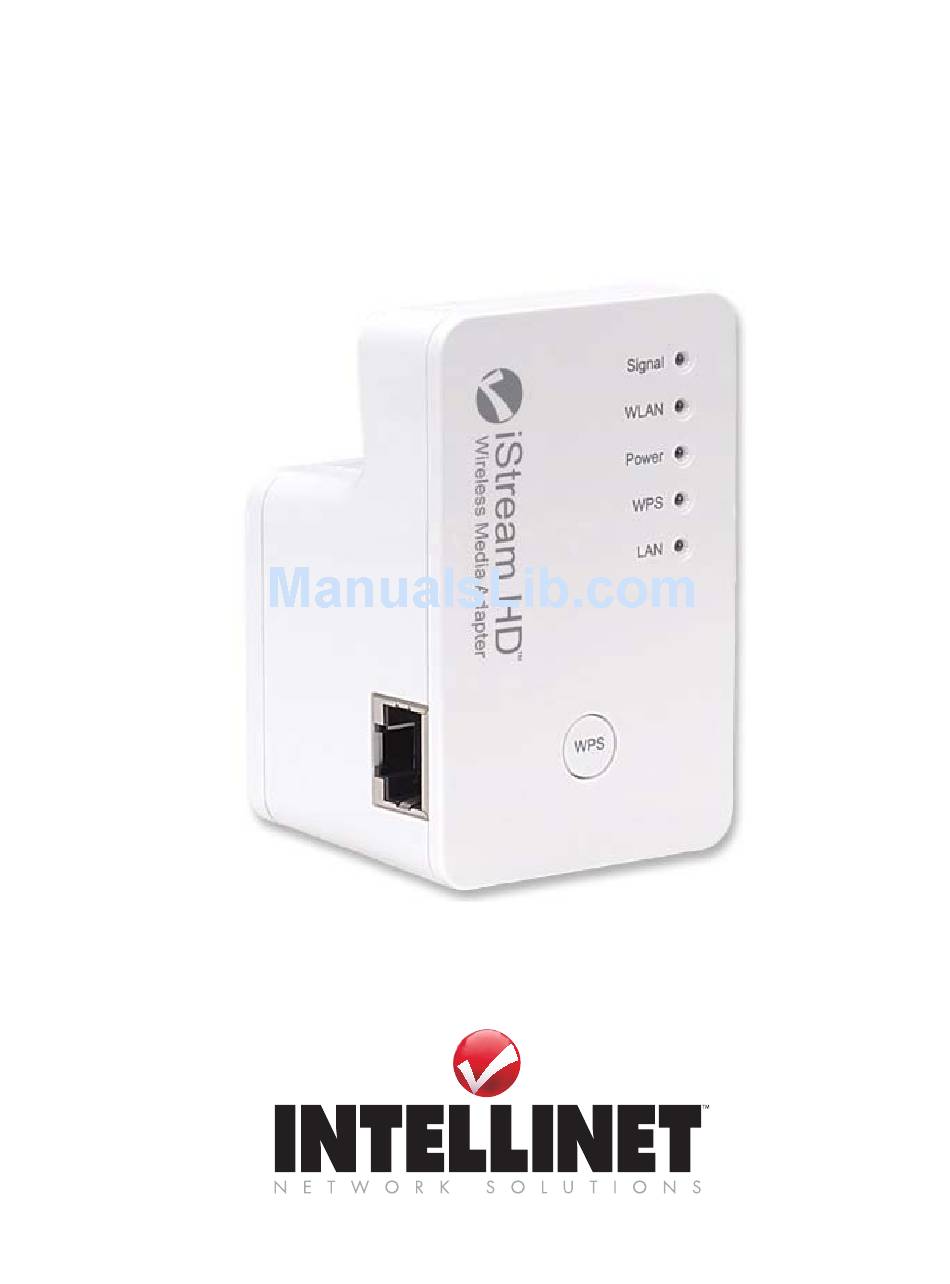

- Page 1 TREAM Wireless 300N Media Adapter USER MANUAL MODEL 525282 INT-525282-UM-0212-01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..................3 What Is the iStream HD Adapter? ............... 3 Package Contents ..................3 HARDWARE OVERVIEW ................4 Device Status LEDs ................... 5 RJ45 Network Port ..................6 WPS Push-Button ..................6 Power On / Off Switch ................6 Power Outlet Connector ................ -
Page 3: Introduction
INTRODUCTION What Is the iStream HD Adapter? Thank you for purchasing the Intellinet Network Solutions iStream HD™ Wireless Media Adapter. The iStream HD is the ideal solution for connecting your Web TV (IPTV), gaming console or other Ethernet-ready media device to your wireless home network. -
Page 4: Hardware Overview
HARDWARE OVERVIEW - 4 -... -
Page 5: Device Status Leds
Device e Status LEDs The iStre eam adapt ter allows disabling the LEDs s complete ely via the e configura ation interface e. See cha pter “Con figuration n Options” ” for detail ls. So, if the LED Ds do not light up t there is no o need to... -
Page 6: Rj45 Network Port
RJ45 Network Port The iStream adapter is equipped with a high-speed network port, which is designed to connect your Internet-ready TV, Blu-ray player or gaming console to the iStream adapter. You can use the included network cable for that purpose. Of course, should you require a longer connection between the iStream adapter and your device, it is no problem to use any standard Ethernet network cable that meets or exceeds the Cat5 specification. -
Page 7: Installation
INSTAL LLATION The iStre eam Media a Adapter can be in stalled in one of tw wo ways. T The first w involves the befor e-mention ned WPS, while the second (w we call it t the manu method) uses a m more tradit tional setu up process... - Page 8 n your rou uter, locat te and pre ess the WP utton. The e picture il llustrates the locatio f the WPS button on n an Intell linet wirel outer. ress the W WPS button n on the iS Stream ad dapter for r two seco nds.
-
Page 9: Manual Installation
Manua l Install lation If you ne eed to inst tall the iSt tream HD adapter m manually, you will n need to ha ave the following g items be efore you c can begin u need to know the e name of your wire eless netw... - Page 10 unch your r Web brow wser and direct it t to http://i streamset tup. In ca se this ls, you ca n also ent tp://192.1 168.2.254 password window w will be disp played. Ke ey in user name “ad dmin” and “1234”...
- Page 11 If y your wirel ess netwo ork is secu ured by an n encrypti on key, y ou will be esented w with the sc reen belo w. Enter t the passw word (pass sphrase) fo or your reless netw work here Note: You ne eed to type...
- Page 12 move the network cable from m your mputer’s L LAN port a and conne ect to the twork por rt of your g gaming co onsole, Blu y player, I Internet-r eady TV o or any oth hernet-rea ady device ext, power r on that d device and...
-
Page 13: Advanced Configuration Menu
ADVA NCED C CONFIG GURAT TION M This chap pter expla ains the ad dvanced c configurati ion menu of your iS Stream HD Wireless Media Ad dapter. Note: Th here is no n need to acc ess these f functions un nless you w wish to upgr... - Page 14 4. Select “Internet Protocol Version 4” from the list and click “Properties.” 5. Enter the information as shown below, and then click “OK” to save the settings. Windows XP: 1. Double-click the “Network Connections” icon in the control panel. 2. Right-click the connection (e.g., Local Area Connection) and select “Properties.” 3.
- Page 15 4. Enter the information as shown below, and then click “OK” to save the settings. Mac OS X: 1. Open the “System Preferences” page. 2. In the Internet & Network section, click the Network icon. 3. Select either Built-in Ethernet or Airport, depending on how you connect to the iStream adapter, then click “Configure…...
- Page 16 4. Set the value for Configure IPv4 to “Manually” and enter 192.168.2.50 in the IP Address field. Click “Apply Now” (not shown in screen shot) to save the settings. - 16 -...
-
Page 17: Accessing The Advanced Configuration Menu
Accessing the Advanced Configuration Menu Open a Web browser and go to the page http://istreamsetup. In case this link does not work, try http://192.168.2.254. A password request window will open up. The default user name is “admin”; the default password is “1234.” It is recommended to change the password in the advanced settings. - Page 18 Next, you’ll be looking at the main screen of the iStream HD interface. This page provides information about the operational status of the device. It shows to which wireless network the iStream HD adapter is currently connected to, which firmware or runtime code is installed and other information. The page also allows checking to see if a new firmware version is available for your iStream HD adapter.
-
Page 19: Advanced Configuration Menu Options
Advanced Configuration Menu Options The Quick Setup pages allow connecting the iStream HD to a wireless network. Refer to chapter “Installation -> Manual Installation” for details. Item Description Fragment Threshold The fragmentation threshold is used to set the maximum size of a packet that a client will send. - Page 20 Password settings: By default, accessing the iStream HD advanced configuration does not require a password. To prevent someone from overwriting some settings, you can enter a new password here. Current Password: Enter the current password (default = 1234) here. New Password: Type in the new password. Re-Enter password: Type in the new password again.
- Page 21 The Restore to Factory Default function should be used if you wish to overwrite the entire configuration with the original factory default values. This is recommended after you upgrade the firmware. Click the “Reset” button to start the process and confirm your decision by clicking “OK”...
- Page 22 After the upgrade you should reset the iStream HD to factory default values (see above). In the event that the iStream HD seems to be performing poorly, a reboot of the adapter may help resolve the problem. The System Restart function is designed to let you do exactly that without physically touching the device.
- Page 23 FACTORY RESET The iStream HD Wireless Media Adapter can be reset to the original factory default settings two ways. Option 1: Factory reset via advanced configuration menu. See chapter “Advanced configuration menu options” for details. Option 2: Hardware reset The iStream HD adapter must be powered on. Push the WPS button for 15 seconds, and then release it.
-
Page 24: Troubleshooting
TROUBLESHOOTING Symptom How to address The Power LED is not lit. Make sure that the power switch on the iStream HD is set to the “On” position. In addition, check and make sure that the power outlet provides power. The LAN LED does not light Check the network connection between the iStream HD and the Ethernet port of the device you’re connecting. - Page 25 Symptom How to address Can I use the iStream HD Indeed you can. Simply set up the iStream HD as usual and as a wireless adapter for connect it to the computer’s network port when finished. my computer? iStream HD now acts as a wireless adapter for your computer. The signal LED flashes The flashing LED means that the signal strength is too weak to rapidly and there is no...
- Page 26 … and when you repeat the test in the morning you’re getting something like this … … it means that the bottleneck is your Internet connection, and not your local wireless network. Contact your Internet service provider to troubleshoot the issue. 2.
-
Page 27: Addendum
ADDENDUM PlayStation3 Network Setup 1. Connect an Ethernet cable from the iStream network port to the PS3 system. 2. Select (Settings) > (Network Settings). 3. Select [Internet Connection Settings]. Select [Yes] when a confirmation screen is displayed stating that you will be disconnected from the Internet. -
Page 28: Wii Network Setup
5. Select “Test Xbox LIVE Connection.” Wii Network Setup 1. Install a Wii LAN adapter (for instructions, click here) 2. From the Wii Main Menu, select the Wii icon from the bottom left. 3. Select "Wii Settings" to access the "Wii System Settings" menu. 4. -
Page 29: Specifications
SPECIFICATIONS • IEEE 802.11b (11 Mbps Wireless LAN) • IEEE 802.11g (54 Mbps Wireless LAN) • IEEE 802.11e (QoS Enhancement WMM) • IEEE 802.11n (300 Mbps Wireless LAN) General • LAN port: RJ45 10/100 Mbps data port • LAN port with Auto MDI/MDI-X •... -
Page 30: Safety And Regulatory Notices
SAFET TY AND R REGULA ATORY N NOTICE This equip pment has s been tes sted and f found to c comply wit th the lim its for a Class B co omputing device pu ursuant to o Subpart B of Part 15 of FCC C rules, which are... -
Page 31: Warranty Information
WARRANTY INFORMATION Deutsch Garantieinformationen finden Sie hier unter www.intellinet-network.com/warranty. English For warranty information, go to www.intellinet-network.com/warranty. Español Si desea obtener información sobre la garantía, visite www.intellinet-network.com/warranty. Français Pour consulter les informations sur la garantie, rendezvous à l’adresse www.intellinet-network.com/warranty. Italiano Per informazioni sulla garanzia, accedere a www.intellinet-network.com/warranty. - Page 32 INTELLINET NETWORK SOLUTIONS™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com © IC INTRACOM. All rights reserved. INTELLINET is a trademark of IC INTRACOM, registered in the U.S. and other countries.
