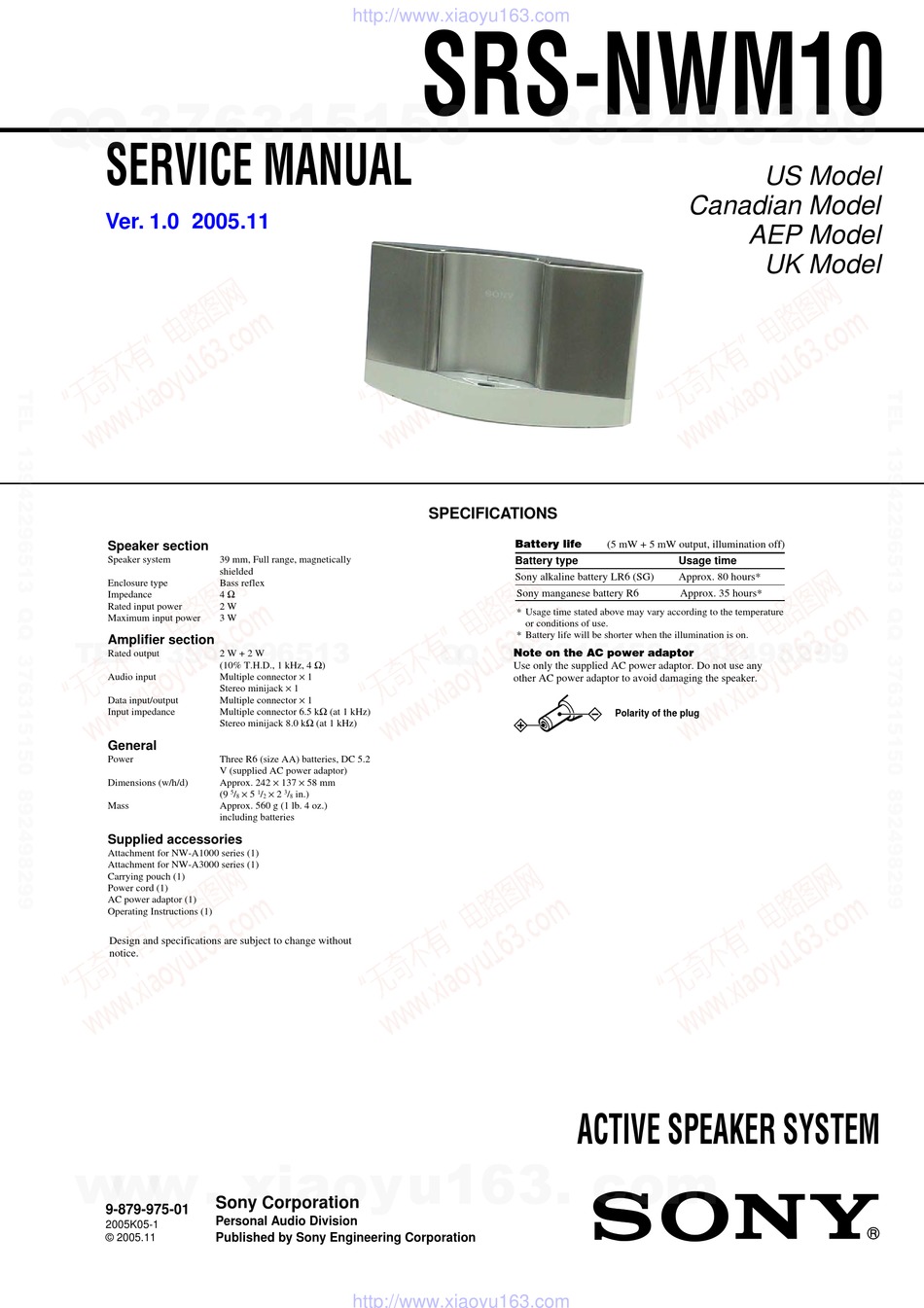

SERVICE MANUAL
Ver. 1.0 2005.11
Speaker section
Speaker system
39 mm, Full range, magnetically
shielded
Enclosure type
Bass reflex
4 Ω
Impedance
Rated input power
2 W
Maximum input power
3 W
TE
L 13942296513
Amplifier section
Rated output
2 W + 2 W
(10% T.H.D., 1 kHz, 4 Ω)
Multiple connector × 1
Audio input
Stereo minijack × 1
Multiple connector × 1
Data input/output
Input impedance
Multiple connector 6.5 kΩ (at 1 kHz)
Stereo minijack 8.0 kΩ (at 1 kHz)
General
Power
Three R6 (size AA) batteries, DC 5.2
V (supplied AC power adaptor)
Approx. 242 × 137 × 58 mm
Dimensions (w/h/d)
(9
Mass
Approx. 560 g (1 lb. 4 oz.)
including batteries
Supplied accessories
Attachment for NW-A1000 series (1)
Attachment for NW-A3000 series (1)
Carrying pouch (1)
Power cord (1)
AC power adaptor (1)
Operating Instructions (1)
Design and specifications are subject to change without
notice.
www
.
Sony Corporation
9-879-975-01
Personal Audio Division
2005K05-1
Published by Sony Engineering Corporation
© 2005.11
http://www.xiaoyu163.com
× 5
× 2
5
/
1
/
3
/
in.)
8
2
8
x
ao
y
i
http://www.xiaoyu163.com
SRS-NWM10
8
SPECIFICATIONS
Battery life
Battery type
Sony alkaline battery LR6 (SG)
Sony manganese battery R6
* Usage time stated above may vary according to the temperature
Q Q
or conditions of use.
3
6 7
1 3
* Battery life will be shorter when the illumination is on.
Note on the AC power adaptor
Use only the supplied AC power adaptor. Do not use any
other AC power adaptor to avoid damaging the speaker.
ACTIVE SPEAKER SYSTEM
u163
.
2 9
9 4
2 8
Canadian Model
AEP Model
(5 mW + 5 mW output, illumination off)
Usage time
Approx. 80 hours*
Approx. 35 hours*
1 5
0 5
8
2 9
9 4
Polarity of the plug
m
co
9 9
US Model
UK Model
2 8
9 9
