SRS-NWM10
QQ
3 7 63 1515 0

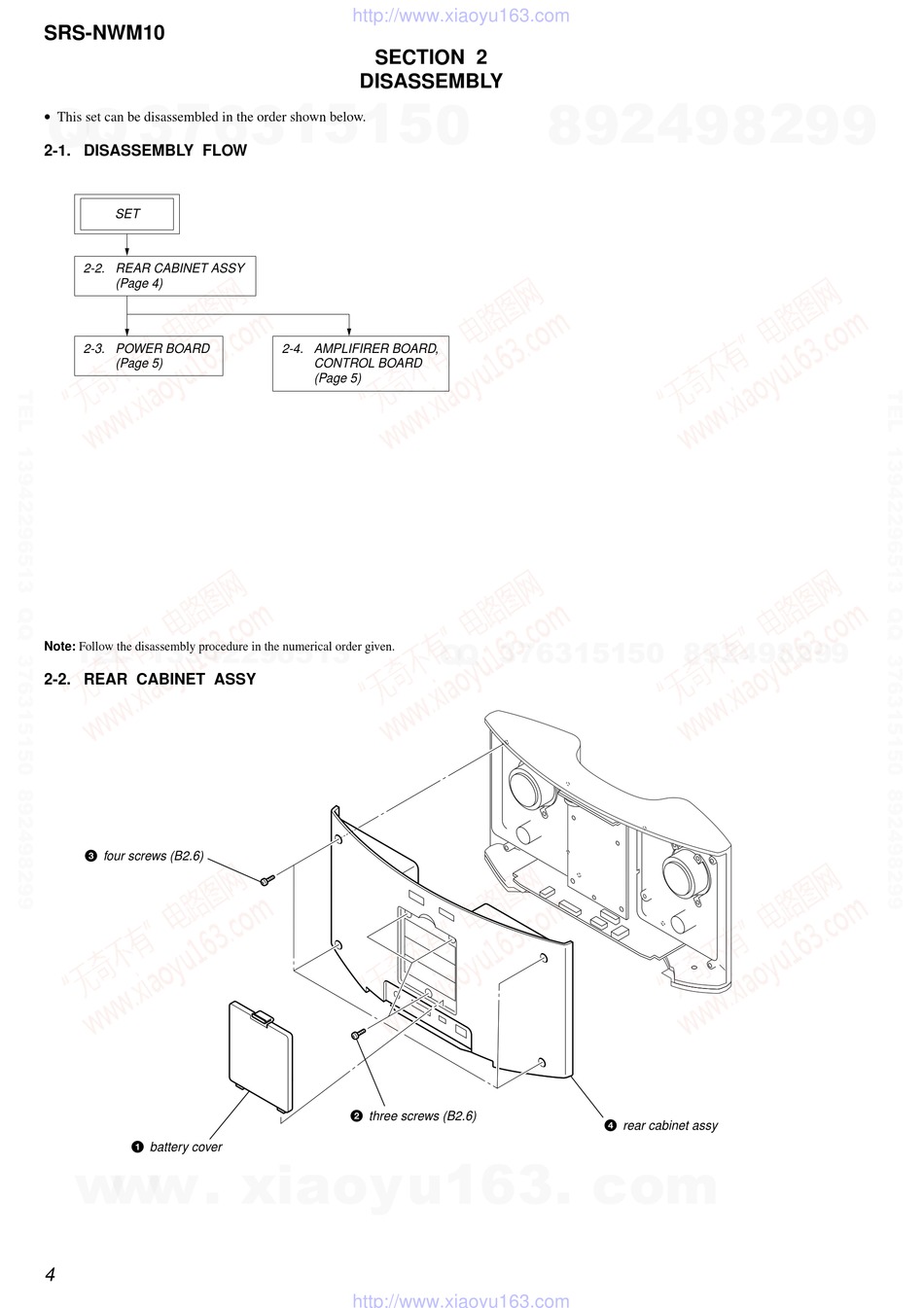

• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SET
2-2. REAR CABINET ASSY
(Page 4)
2-3. POWER BOARD
(Page 5)
TE
L 13942296513
Note: Follow the disassembly procedure in the numerical order given.
2-2. REAR CABINET ASSY
3 four screws (B2.6)
www
1 battery cover
.
4
http://www.xiaoyu163.com
SECTION 2
DISASSEMBLY
2-4. AMPLIFIRER BOARD,
CONTROL BOARD
(Page 5)
2 three screws (B2.6)
x ao u163
y
i
http://www.xiaoyu163.com
2 9
8
Q Q
3 6 7 1 3 1 5
4 rear cabinet assy
