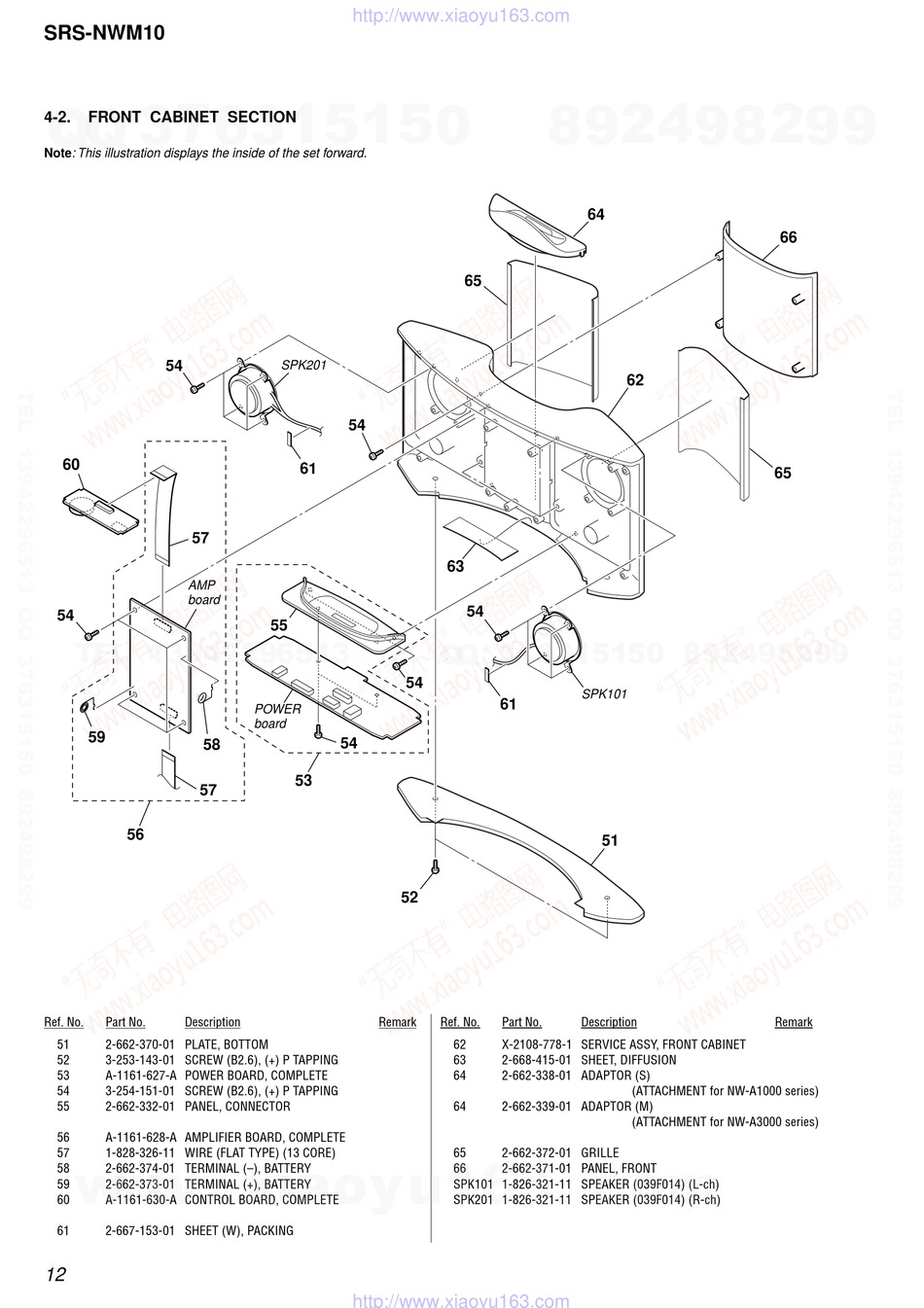

4-2. FRONT CABINET SECTION
Note : This illustration displays the inside of the set forward.
54
60
57
AMP
board
54
TE
L 13942296513
59
58
57
56
Ref. No. Part No. Description
51 2-662-370-01 PLATE, BOTTOM
52 3-253-143-01 SCREW (B2.6), (+) P TAPPING
53 A-1161-627-A POWER BOARD, COMPLETE
54 3-254-151-01 SCREW (B2.6), (+) P TAPPING
55 2-662-332-01 PANEL, CONNECTOR
www
56 A-1161-628-A AMPLIFIER BOARD, COMPLETE
57 1-828-326-11 WIRE (FLAT TYPE) (13 CORE)
58 2-662-374-01 TERMINAL (–), BATTERY
.
59 2-662-373-01 TERMINAL (+), BATTERY
60 A-1161-630-A CONTROL BOARD, COMPLETE
61 2-667-153-01 SHEET (W), PACKING
12
http://www.xiaoyu163.com
SPK201
54
61
55
54

POWER

board
54
53
52
Remark
x ao u163
y
i
http://www.xiaoyu163.com
2 9
8
64
65
63
54
Q Q
3 6 7 1 3 1 5
SPK101
61
51
Ref. No. Part No. Description
62 X-2108-778-1 SERVICE ASSY, FRONT CABINET
63 2-668-415-01 SHEET, DIFFUSION
64 2-662-338-01 ADAPTOR (S)
64 2-662-339-01 ADAPTOR (M)
co
65 2-662-372-01 GRILLE
66 2-662-371-01 PANEL, FRONT
.
SPK101 1-826-321-11 SPEAKER (039F014) (L-ch)
SPK201 1-826-321-11 SPEAKER (039F014) (R-ch)
9 4 2 8
66
62
65
0 5 8 2 9 9 4 2 8
Remark
(ATTACHMENT for NW-A1000 series)
