Generator Placement

Fascia Installation (If Applicable)

•
Locate the four threaded black rubber bumpers
supplied with the loose parts.
•
Remove the four rubber mounts from the bag and
screw them into threaded holes located inside the
end pieces of the fascia (two each) opposite one
another (A).
•
Once the mounts are installed, snap one of the end
pieces into one of the front / rear pieces of fascia.
Repeat this action with the other two remaining
pieces of fascia.
NOTE: Do not assemble all four pieces together at this
point (B).
•
Place both assemblies at the base of the generator
and fit the rubber mounts into the lifting holes in the
generator base (C).
•
Once aligned, snap together the two remaining
connection points.
A

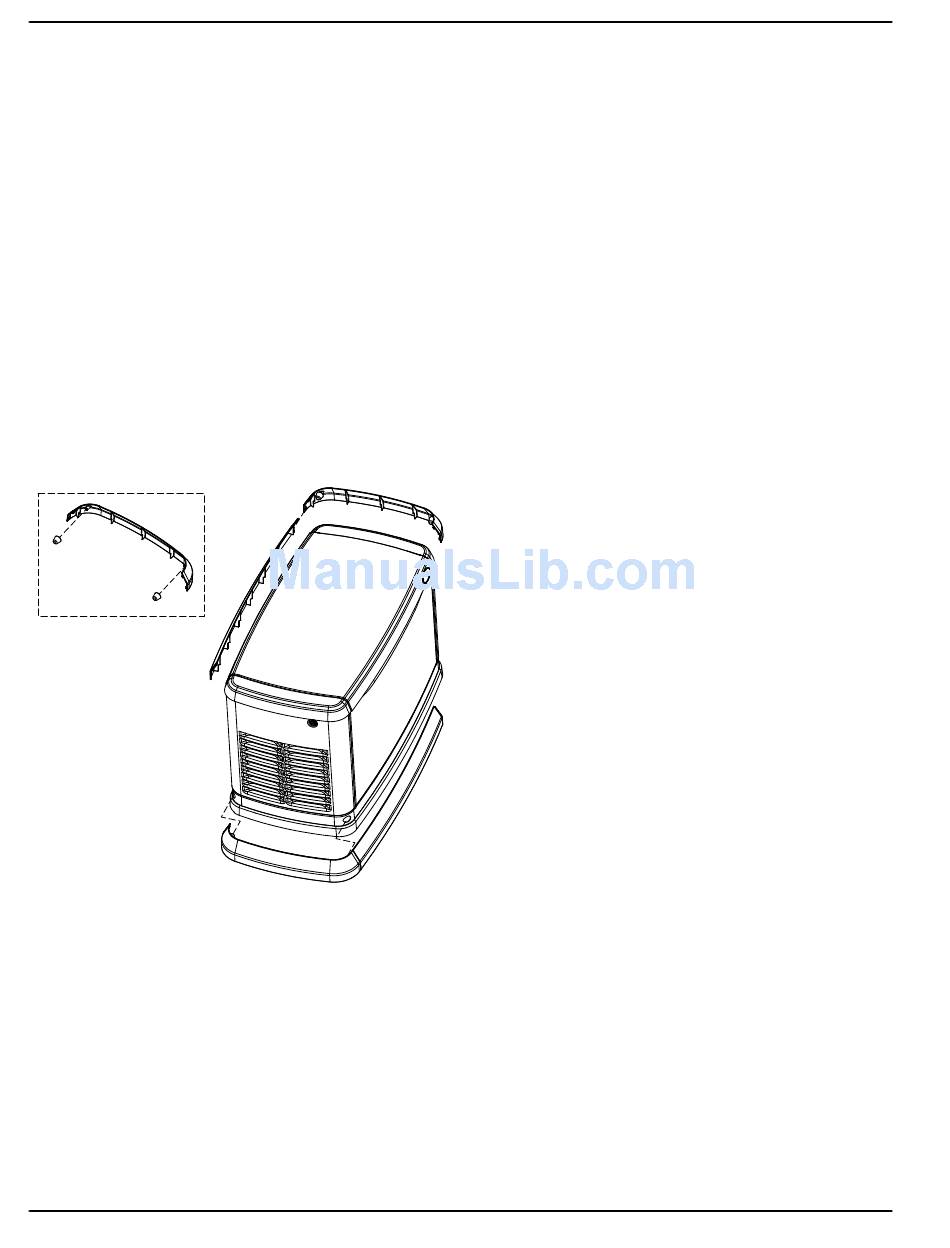

Figure 4-3. Fascia Installation
