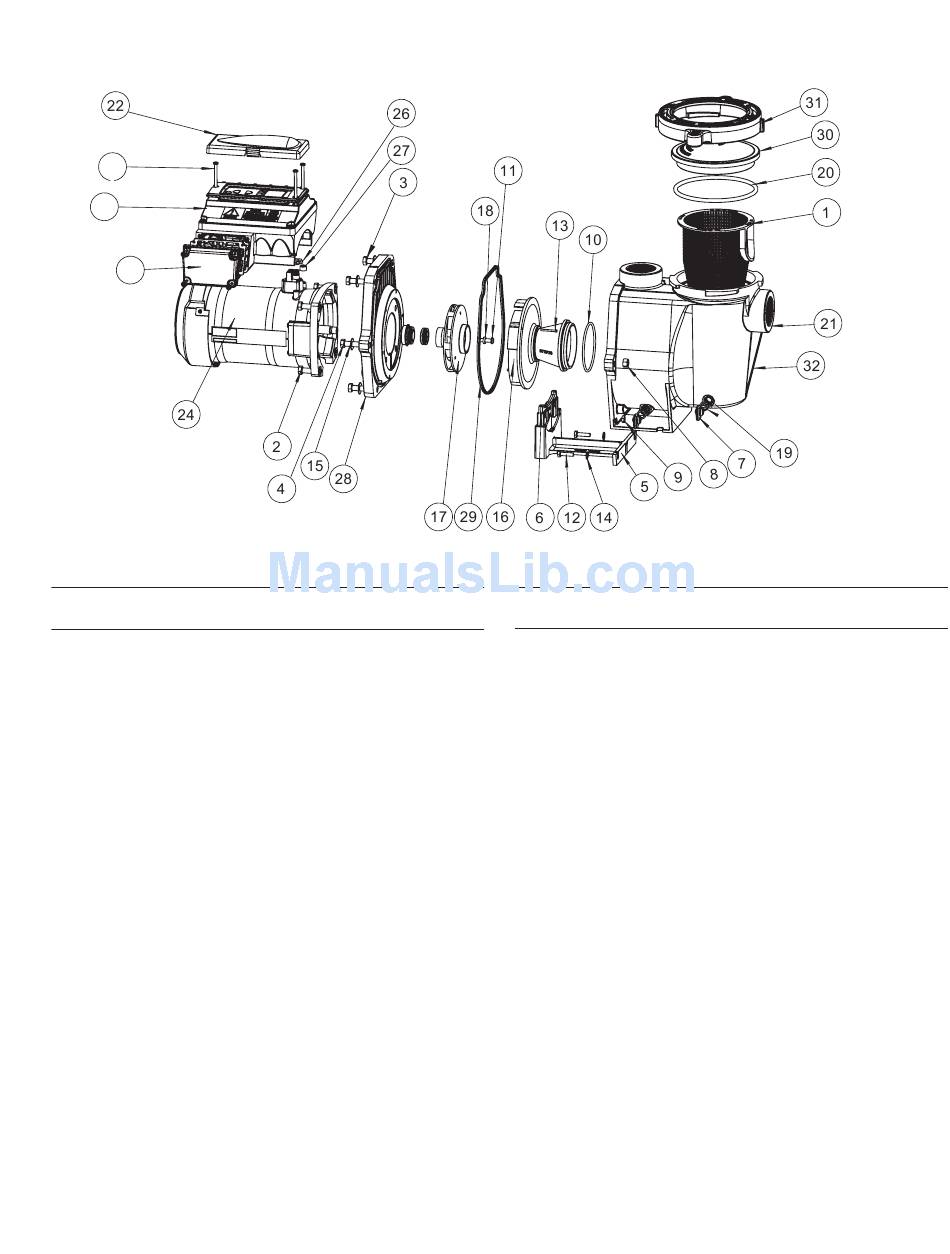

Illustrated Parts List

25
23
33

Replacement Parts

Item Part Description
No. No.
1 070387 BASKET AQ & WF
2 070429 BOLT HEX HD, 2-56x0.875 s/s,
(QTY 4)
3 070430 BOLT 3/8 - 16 X 1¼ HEX CAP 18-8 s/s,
(QTY 4)
4 070431 BOLT 3/8 -16 X 2 HEX CAP 18-8 s/s,
(QTY 2)
5 070927 FOOT WF - PUMP MOTOR SUPPORT
6 070929 FOOT INSERT WF PUMP
7 071131 PLUG DRAIN WFE (Almond) (QTY 2)
8 071403 NUT 3/8 - 16 BRASS NICKEL PLATED,
(QTY 2)
9 071406 NUT ¼ - 20 HEX s/s (QTY 2)
10 355227 O-RING 238, 3.484x0.139, Buna-N 70
11 071652 SCREW ¼-20 X 1 LH PHILLIPS PAN
MS 18-8 s/s
12 071657 SCREW ¼ - 20 X 1 in. HEX CAP 18-8 s/s,
(QTY 3)
13 071660 SCREW SET 4-40 X 1-1/8 WFE SCKT
CAP 18-8 s/s (QTY 2)
14 072183 WASHER FLAT ¼ X 5/8 20 GA THICK
18-8 s/s (QTY 2)
15 072184 WASHER 3/8 ID X 7/8 OD .05 THICK
18-8 s/s, (QTY 6)
(*) PRIOR TO MID SUMMER 2011 USE 350082 CONTROL COVER ASSEMBLY. P/N ON INSIDE COVER.
(**) NOT SERVICEABLE PARTS
Item Part Description
No. No.
16 072928 DIFFUSER ASSEMBLY WFE 12
17 073131 IMPELLER WFE 12 1000 SER
18 075713 RUBBER WASHER WFE PUMP
19 192115 O-RING 112, 0.487x0.103
Buna-N 70 (QTY 2)
20 350013 O-RING LID CH/WF 2-436
21 350015 HOUSING WFE (Almond)
22* 400100 CONTROL COVER ASSEMBLY
23** 350721 INTELLIFLO VAR-SPD MTR DRV 3.2KW
24** 350105S VFD MOTOR 3.2 KW PMSM
25 350107 SCREW 10-24 X 3¼ in. PH MS 18-8 s/s,
(QTY 3)
26 350108 INTELLIFLO DRIVE GASKET
27 350142 SPACER CAP (QTY 3)
28 350202 SEAL PLATE KIT, WFE ALMOND
29 357100 GASKET SANTOPRENE MOLDED
30 357151 LID SEE THRU WF
31 357199 CLAMP CAM & RAMP WF (Almond)
32 357243 POT WF ASSY (Almond)
33 350621 COVER ASSEMBLY, FWC
INTELLIFLO ® VF Variable Flow Pump Installation and User's Guide
43
