I/O Setup Menu
I/O Setup Menu manages your input/output source signals to their corresponding channels, please refer to the following
steps for manual setup or adjustments

Channel Setup

Default Channel assignment:
The CH1 to B matches cross-points button 1 to B.
CH1: HDMI IN 1
Corresponding Button/Channel to Channel
Source Selection
English
CH2: HDMI IN 2 CH3: HDMI / SDI IN
Use ← → to select I/O SETUP option.
●
Use ↑ ↓ to select "CHANNEL SETUP"; press "ENTER"
●
to confirm selection.
CH4: HDMI / SDI IN 4
Available Selections:
● Digital HDMI In 1~4: HDMI Input source 1 through 4.
● SDI IN 3 & 4
● Multi-Zoom 1~4 (M1~M4): Reserve space for Multi-
Zoom composing; maximum 4; only assignable from
Multi-Zoom composing.
● DSK: Contents of this channel will be displayed when
DSK is activated.
● Disable (X): The cross-point button is not assigned
(No function).

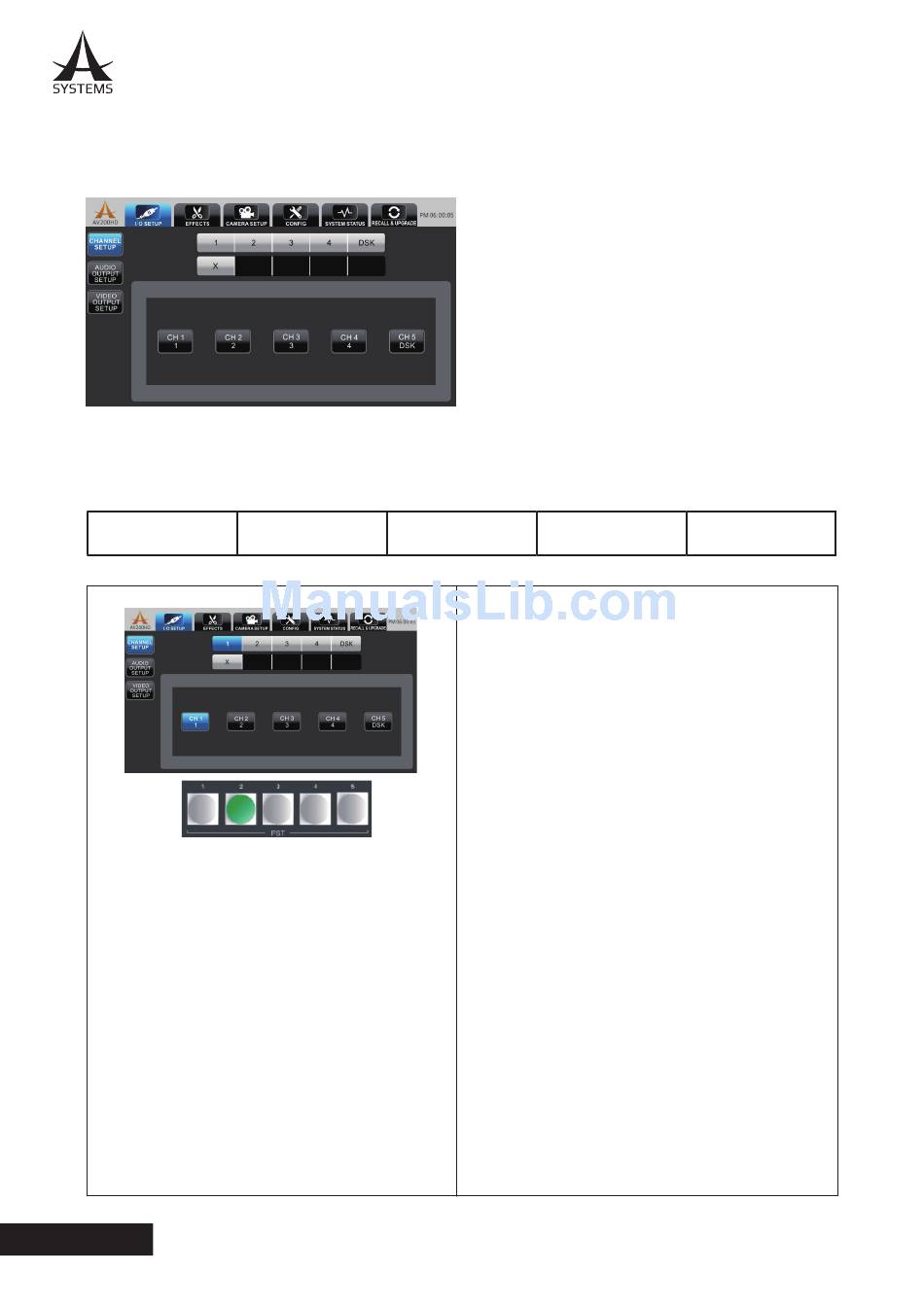

Channel Setup:
1. Use directional buttons (←→) to select a channel for
configuration, cursor location is identified with the Blue
button or directly pressing corresponding PST/EFFECT
keys.
2. Use SEL knob to select input source from the top menu;
if selected source is already taken by other channel,
overriding will leave the other channel input blank; press
ENTER to confirm selection.
36
CH5: DSK
