Summary of Contents for A SYSTEMS AV50

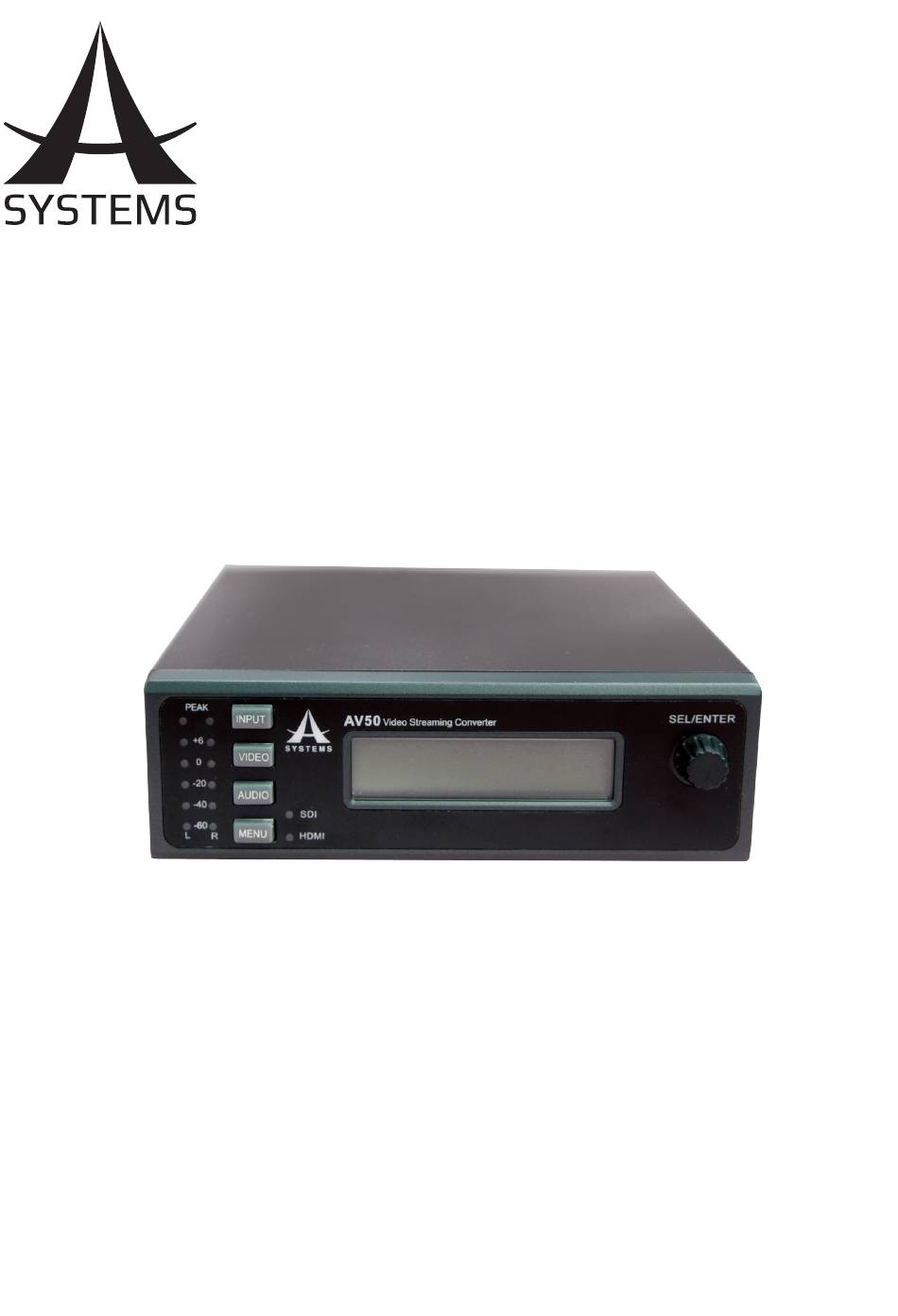

- Page 1 User’s Manual High Definition 2-Channel Web Video Switcher & Converter AV50...
- Page 2 AV50 IMPORTANT SAFETY INSTRUCTIONS Read these instructions – All the safety and operating instructions should be read before this building-in space such as a book case or similar product is operated. unit, and remain a well ventilation conditions at Keep these instructions – The safety and open site.
-
Page 3: Table Of Contents
Power Up .......................3 Video Connections ..................4 Audio Connections ..................4 Computer Connection..................4 Connection Diagrams ..................5 Installation Precautions .................7 Operating Precautions ...................8 AV50 Front and Rear Panels .................9 Settings......................10 Audio ......................10 Video ......................10 Setup Menu ....................11 Firmware Upgrade ..................12 Specifications ....................13 Asystems reserves the right to alter any information contained within this manual without prior notice. -
Page 4: Overview
● The AV50 is a ultra compact 2-channel video mixer with webstreaming converter supporting high definition video streaming (1080p). ● Connect to your Mac or Windows computer to use the AV50 as a virtual webcam, allowing live streaming through most popular platforms. -
Page 5: Check The Included Items
As noted above, Asystems have included a DC power adapter for powering the AV50. Connect the adapter’s BNC head to the DC IN connector and the AC end into a suitable power source. When the AV50 is powered up, the front panel LCD screen will turn on and light up (depending on your backlight settings). -
Page 6: Video Connections
The next step is to simply set your AV50 as your default webcam in your software. This is done simply in the software’s main set up menu. For example, in Skype the option can be found in the “Audio/Video”... -
Page 7: Connection Diagrams
(Virtual Webcam) Camera The above is a typical setup example of the AV50. In this example, two cameras are connected to the video inputs with the two loop through connectors being used as a source display for each. The program output is sent for broadcasting. An analog mixer is connected to the stereo Line In connectors while a separate microphone is connected directly to the AV50. - Page 8 Computer (Virtual Webcam) The AV50 can act simply as a means to inject your broadcast into a live stream. In this example, the video mixer’s program output is connected directly to the AV50’s video input, then looped out for broadcast. The AV50’s only job in this example is to take the broadcast signal and stream it through the internet.
-
Page 9: Installation Precautions
● Install the unit on a sufficiently strong, stable and level surface for use. ● Ensure a space of at least 100 mm (4 inches) around the unit. While the AV50 won’t run hot in general, keeping all sides of the unit free from obstructions is advisible. -
Page 10: Operating Precautions
AV50 OPERATING PRECAUTIONS In addition to heeding the points presented in the “Safety Instructions” and “Installation Precautions” sections, the following precautions should also be observed to guarantee user safety and the longevity of the system. Handle with extreme care. When the product is to be discarded ●... -
Page 11: Av50 Front And Rear Panels
11. SDI Output: This is the main program output. 12. WEBCAM: This USB-C connector was for connection of a Windows or Mac computer. The AV50 is recognized and works as a virtual webcam within applications that are compatible with such devices. -
Page 12: Settings
There are three main settings menus, accessed via the VIDEO, AUDIO and MENU buttons on the front of the AV50. Settings can be viewed/adjusted on the LCD screen. Rotate the Set/Enter control to scroll through menus and push the control to confirm. -
Page 13: Setup Menu
SETUP MENU Push the MENU button to access the few system settings of the AV50. These include Device ID, Backlight, Recall, Tally and FW Upgrade. The Device ID comes in There are three options for... -
Page 14: Firmware Upgrade
4. Updating progress will be displayed on screen. Once the update is complete, the AV50 will revert back to the default screen. 5. If no firmware files are found, the AV50 will inform you as such. Push the SET/ENTER control to continue. -
Page 15: Specifications
AV50 SPECIFICATIONS Spec Type Details 1080p24/25/30/50/60 1080i50/60 HDMI In 720p50/60 (170MHz HDMI) 480i/p60 576i/p50 1080p24/25/30/50/60 1080i50/60 SDI In 720p50/60 (3G-SDI) 480i/p60 Video 576i/p50 3G-SDI PGM Out SDI Out 1080p60 max, same as input 3G-SDI PGM Out SDI Loop Out 1080p60 max, same as input... - Page 16 www.asystems-sys.com...
