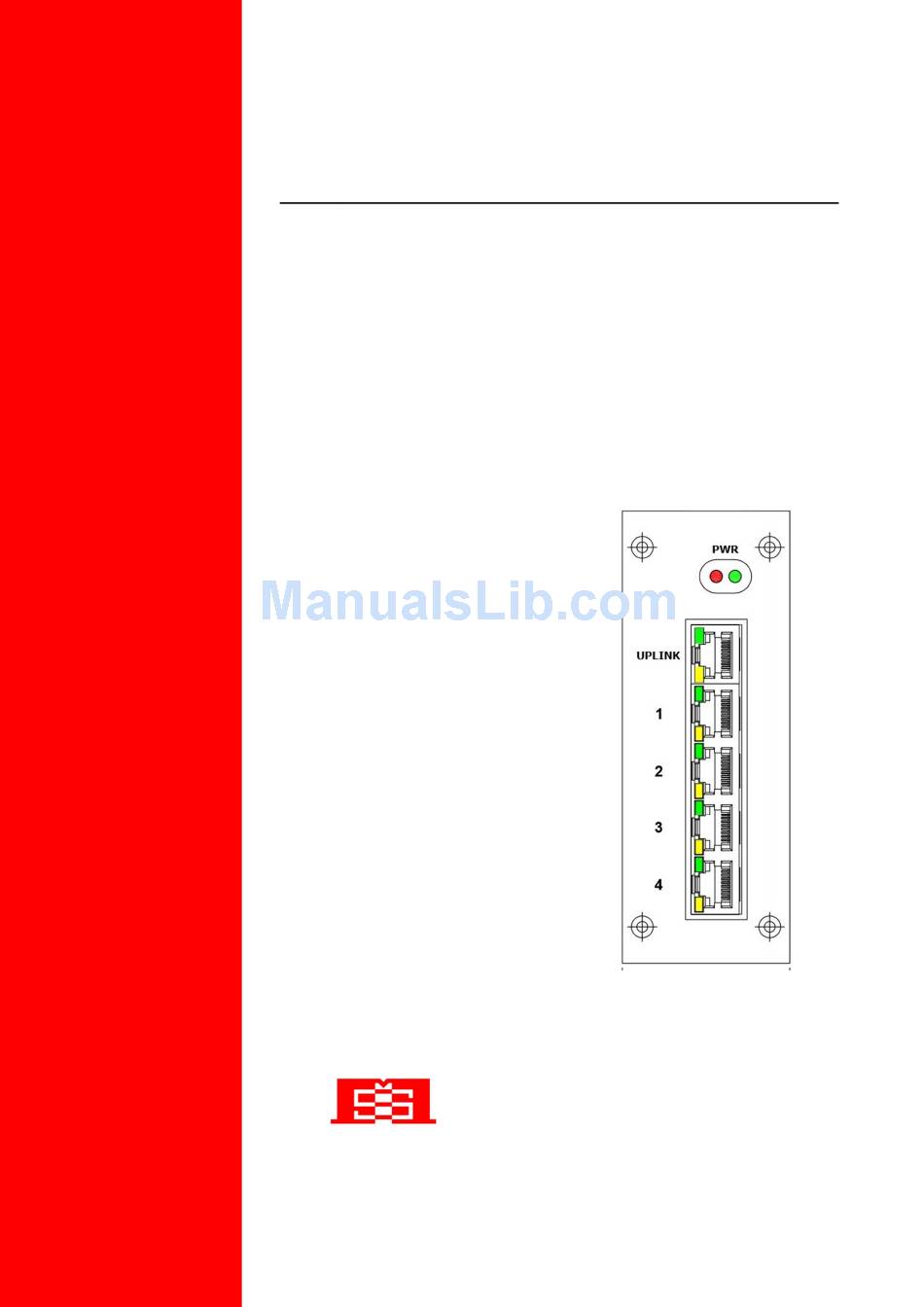

- Page 1 DIN-SW5G44x4 5 Port PoE Switch & Extender (Repeat Ethernet and PoE) USER’S MANUAL MSTRONIC CO., LTD.
-
Page 2: General Information
User’s Manual DIN-SW5G44x4 series 1. General Information The DIN-SW5G PoE (Power Over Ethernet) Switch family provides four 10M/100M/1000M TX ports with PoE PSE function plus one 10M/100M/1000M TX up-link port with PoE PD function. It accepts power from PoE power souring equipment (PSE) and delivers power to PoE powered device (PD), which are compliant with IEEE802.3af and IEEE802.3at standard to receive and... - Page 3 User’s Manual DIN-SW5G44x4 series *POWER LED STATUS Description Power Green LED ON when power input (DC IN on top panel or UPLINK on front panel) has valid power supplied. The indicator is unused for the model No power supplied. *SWITCH LED (the upper indicator on each RJ45)
-
Page 4: Power Wiring
The PoE switch family allows it to be powered by another PoE source on port UPLINK as a PoE repeater or extender. For DIN-SW5G44x4 is 44~57VDC. For PoE operation, make sure your power supply can offer at least 75W for 4x 802.3af PoE port, or 150W for 4x 802.3at PoE port. - Page 5 * Data pair D plus V-/V+ on line 7 and 8 The terminal block on the top panel should be wired as detailed below: *For 48VDC typical model(DIN-SW5G44x4) The input voltage must be in the range of 44 to 57VDC if running for 802.3af operation.
- Page 6 User’s Manual DIN-SW5G44x4 series Input Voltage Input Voltage Model (Port Output voltage 802.3af/at Isolated (TOP) UPLINK) 44-57VDC 44-57VDC No input (non-regulated) 44-57VDC DIN-SW5G44A4 No input 44-57VDC (non-regulated) DIN-SW5G44B4 Higher voltage DIN-SW5G44D4 output 44-57VDC 44-57VDC (TOP or Port UPLINK) *Ethernet Port Wiring...
- Page 7 User’s Manual DIN-SW5G44x4 series Pin 6 Pin 6 Pin 4 Pin 4 Pin 5 Pin 5 Pin 7 Pin 7 Pin 8 Pin 8 Cross-over Cabling Pin 1 Pin 3 Pin 2 Pin 6 Pin 3 Pin 1 Pin 6...
- Page 8 User’s Manual DIN-SW5G44x4 series Alternative A Alternative A Alternative B Conductor (MDI-X) (MDI) (All) Negative Vport Positive Vport Negative Vport Positive Vport Positive Vport Negative port Positive Vport Positive Vport Positive Vport NegativeVport Negative Vport Negative Vport Be sure the twisted pair cable is bound with the standard RJ-45 pin, especially the pins 4, 5, 7 and 8.
-
Page 9: Model Information
User’s Manual DIN-SW5G44x4 series *Network Application The PoE Switch can receive power from a PoE midspan and provide power to the PD which follows the IEEE 802.3af/at standard in the network. The PoE Switch can be installed in a more appropriate position for better performance to extend Ethernet to 200 meters. -
Page 10: Technical Specifications
User’s Manual DIN-SW5G44x4 series 4. Technical Specifications Standards IEEE802.3/IEEE802.3u standards/IEEE802.3ab (10 base-T/100base-TX/1000base-T) Ports 5 ports with PoE (4 PSE & 1 PD), support auto-crossover & auto-polarity Transmission speed 1000Mbps (1000base-T).100 Mbps (100base-TX), 10 Mbps(10base-T) Auto-negotiation Switch technology store-and-forward Protocols CSMA/CD Flow control IEEE802.3x (full-duplex), back pressure (half-duplex) - Page 11 *Link/Activity (Green ON/ Green Blinking @1000Mbps, Yellow/Yellow Blinking @10M/100Mbps) *PoE (Yellow) port 1-4 ON - PD detect Port UPLINK DIN-SW5G44x4 ON – 4 pair power, Blinking-2 pair power *POWER Green-normal, Red-alarm Power input Port UPLINK (UPLINK) from network switch or midspan, or optional DC power supply.
- Page 12 User’s Manual DIN-SW5G44x4 series Operating temperature -20℃~ +70℃ Operation humidity 90% relative humidity, non-condensing Storage temperature -40℃~+85℃ Dimension 125mm(H)x46mm(W)x102mm(D) DIN RAIL Mounting MSTRONIC CO., LTD.
