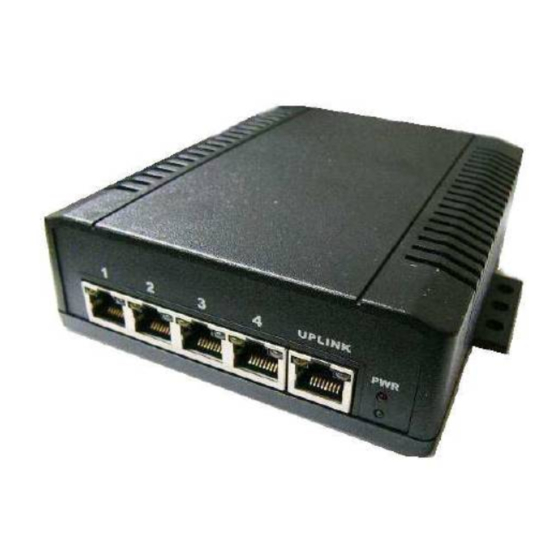

- Page 1 PSE-SW5G44BB 5 Port PoE Switch & Extender (Repeat Ethernet and PoE) USER’S MANUAL MSTRONIC CO., LTD.
-
Page 2: General Information
PSE-SW5G44BB 1. General Information The PSE-SW5G44BB PoE (Power Over Ethernet) Switch provides four 10M/100M/1000M TX ports with 802.3at PoE PSE function. It plus one 10M/100M/1000M TX up-link port with 802.3bt PoE PD function that accepts power from PoE power souring equipment (PSE) and delivers power to PoE powered device (PD) through the traditional UTP or STP cable. - Page 3 No PD is detected on this port. UPLINK (P5) Yellow Powered via all 4 data pairs. PoE (PD) Yellow Powered via 2 data pairs. Blanking (1,2,3,6 or 4,5,7,8 are all acceptable). No power is detected on this port. MSTRONIC CO., LTD.
- Page 4 * Data pair B plus V-/V+ on line 3 and 6 * Data pair C plus V+/V- on line 4 and 5 * Data pair D plus V-/V+ on line 7 and 8 The terminal block on the rear panel should be wired as detailed below: MSTRONIC CO., LTD.
- Page 5 Port 5 provides Power Device function that receive power from 4 pairs or 2 pairs Ethernet cable. The following tables describe the wiring diagram of straight-through and crossover cabling. The crossover cables simply cross-connect the transmit lines at each end to the receive lines at the opposite end. MSTRONIC CO., LTD.
- Page 6 If a port LED is off, go back and check for connectivity problems between that port and the network device connected. The maximum cable length for 10/100/1000BaseT with Cat 5 twisted pair cables is typically 100m (328 ft.). MSTRONIC CO., LTD.
- Page 7 IEEE 802.3af/at standard in the network. The PoE Switch can be installed in a more appropriate position for better performance to extend Ethernet to 200 meters. The following figure is an example of a network application for the PoE Switch. MSTRONIC CO., LTD.
- Page 8 User’s Manual PSE-SW5G44BB MSTRONIC CO., LTD.
-
Page 9: Technical Specifications
Pin assignment: *B mode: data pair A (1,2), data pair B (3,6), data pair C plusV+(4,5), data pair D plus V-(7,8) Port 5, 4 pairs PD Maximum PoE Output Port 1-4: IEEE802.3af – 16.8W IEEE802.3at – 35W MSTRONIC CO., LTD. - Page 10 5W when without PD loading Input Power consumption 0.190A 0.104A 0.061A 0.056A Power efficiency 85% at full load (@48V typical) Operating temperature -20℃~ +75℃ Operation humidity 90% relative humidity, non-condensing Storage temperature -40℃~+85℃ Dimension 40mm(H)x118mm(W)x150mm(D) DIN RAIL Mountable MSTRONIC CO., LTD.
- Page 11 User’s Manual PSE-SW5G44BB MSTRONIC CO., LTD.
