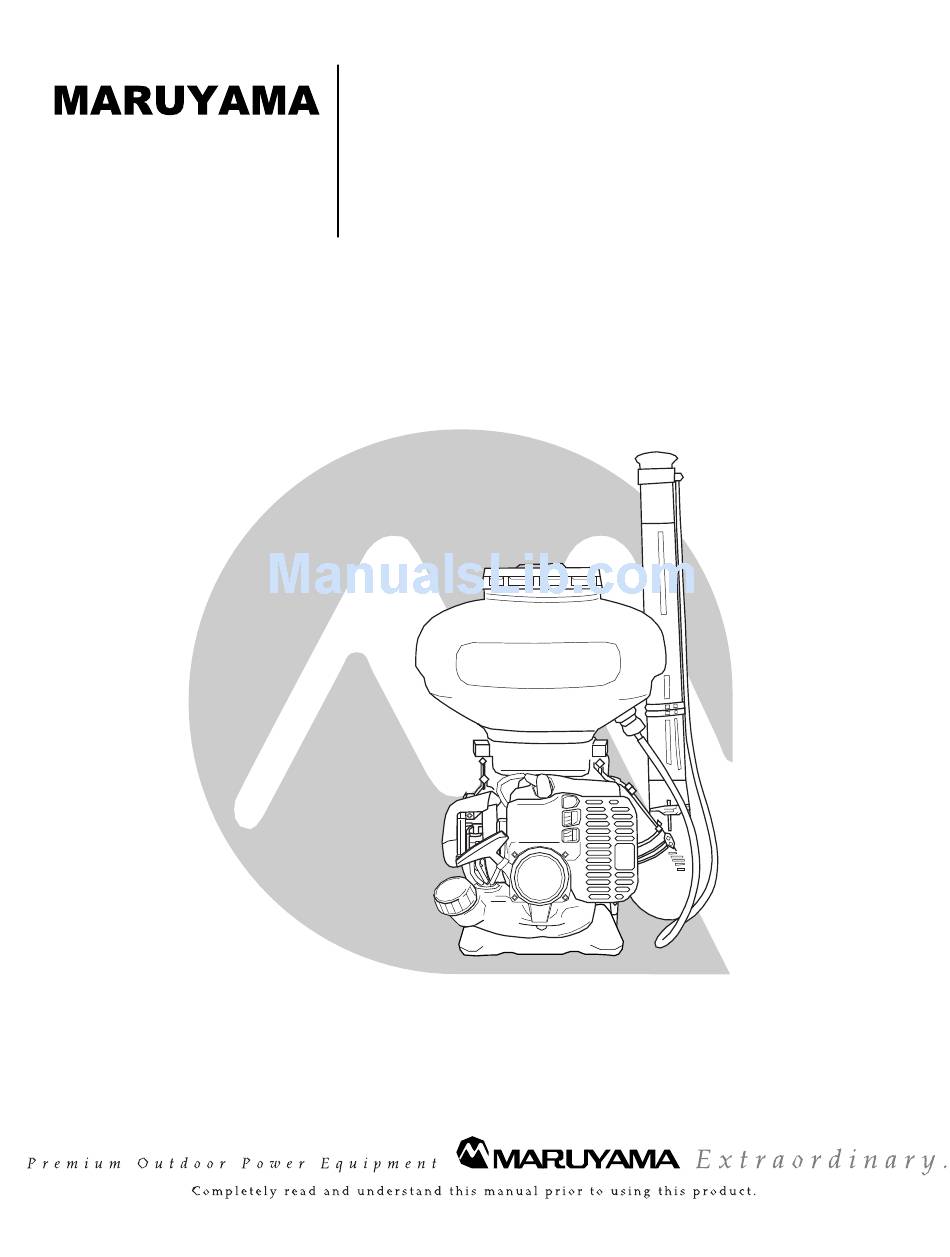

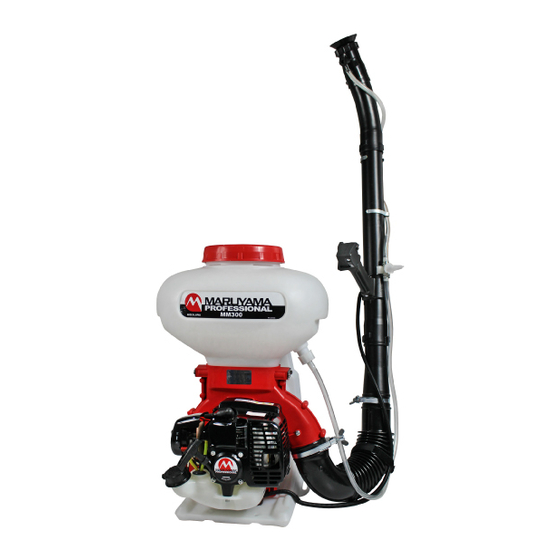

  • Page 1 WNER'S/ PERAT R'S MANUAL ister...

  • Page 2: Limited Warranty Statement

    Maruyama Mfg. Co., Inc. is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
  • Page 3 This warranty provides you with specific legal rights, which may vary from state to state. It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain warranty service.

  • Page 4: Maintenance Requirements

    These warranty periods will begin on the date the small off-road engine is purchased by the initial purchaser. If any emission-related part on your engine is defective, the part will be replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.
  • Page 5 MANUFACTURER'S WARRANTY COVERAGE: The 1995 and later small off-road engines are warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by Maruyama Manufacturing Company, Inc. OWNER'S WARRANTY RESPONSIBILITIES: (a) As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual.
  • Page 6 Important safety instructions will be identified by the following safety symbol: Failure to comply with the instructions in this manual may result in serious injury or death. For additional assistance, contact any local authorized Maruyama dealer or Maruyama U.S., Inc., 4770 Mercantile Drive, suite100, Fort Worth, TX 76137 U.S.A.

  • Page 7: Operating Techniques

    WARNING Read and understand this Owner's/Operator's Manual before using this product. Be thoroughly familiar with the proper use of this product. Do not allow children to operate this product. It is not a toy. Never allow adults to operate the unit without first reading the Owner's / Operator's Manual.

  • Page 8: Specifications

    Attachiments (Standard) Flexible Pipe, Swivel Pipe Straight Pipe, Bent Pipe, Mist Nozzle The MARUYAMA MISTER comes with an Owner's / Operator's Manual and a Warranty Registration Card. Assembly and attachment of the throttle lever bracket and blower pipes are required.
  • Page 9 NAME OF EACH PART CHEMICAL TANK ENGINE THROTTLE SWIVEL PIPE LEVER BAND MIST NOZZLE BAND BENT PIPE MIST COCK MIST HOSE STRAIGHT PIPE FLEXIBLE PIPE FUEL TANK STOP RING RECOIL STARTER HOSE BAND PIPE JOINT 1. Attach pressure pipe to pipe joint in lid. 2.

  • Page 10: Before Operation

    Failure to add oil to the gasoline or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which will void your warranty. For your fuel premix, only use Maruyama 50:1 2-Cycle Oil or a quality oil designed for 2-cycle air- cooled engine.
  • Page 11 When refilling the fuel tank, clean around the fuel tank cap to prevent dirt and debris for entering the tank during cap removal. Always shake the premix fuel container momentarily before filling the fuel tank. Always use a spout or funnel when fueling to reduce fuel spillage. Only fill the tank to within 1/2 inch from the top of the tank.
  • Page 12 Be sure the mister is correctly assembled and all fasteners and fittings are properly secured. THROTTLE LEVER THROTTLE LEVER Before operating the mister, release the knob, adjust the throttle grip to theposition in the illustration, and tighten knob to secure in place. When the mister is strapped to the back of the operator, the throttle lever of is located on the tube.

  • Page 13: Operating Instructions

    "CHOKE LEVER" fully upward to the RETURN LINE". open position. Allow the engine to "WARM-UP" at less than 1/2 speed. If a MARUYAMA engine fails to start after following the above procedures, contact an authorized MARUYAMA dealer. — 12 —...
  • Page 14 OPERATION Pull in the collar Set the “Diffusing” or “Far-reading” of the mist nozzle. Loosen When the engine has warmed-up, the mister can be positioned on the back of the operator. Pull out the collar Diffusing Far-reaching 1. Mist cock 2.
  • Page 15 WARNING To prevent overheating and engine seizure, cooling air comes from the intake grille of the fan housing and is pushed by the blower fan through an opening in the fan housing over the cylinder fin area, taking away combustion heat. The grille and cylinder fins must be kept clean of grass, dust and any debris.
  • Page 16 REGULAR MAINTENANCE Before each use, the mister should be inspected for proper assembly and fitness of all components. All fasteners should be checked for correct tightness. Always inspect for fuel leaks. WARNING Do not attempt to start or operate a mister that indicates a fuel leak. AIR FILTER SPARK PLUG Maintenance Interval...

  • Page 17: Fuel Filter

    FUEL FILTER CYLINDER COOLING FINS Maintenance Interval Maintenance Interval The fuel filter should be cleaned and inspected The cylinder cooling fins should be cleaned for damage after each 20 hours of operation. after every 25 hours of operation, or once a The fuel filter should be replaced after every week, whichever comes first.
  • Page 18 5. Remove and clean the tail, gasket and spark arrester with a safety solvent and a stiff The MARUYAMA mister will provide maximum brush. If any part cannot be thoroughly performance for many hours, if it is maintained cleaned, it must be replaced.

  • Page 19: Troubleshooting

    Clogged spark arrester or exhaust port. Clean spark arrester or exhaust port. Blower pipes clogged, loose or damaged. Unclog or tighten or replace If further assistance is required, contact your local authorized Maruyama service dealer. MAINTENANCE PERIOD Every Every Every...
  • Page 20 Maruyama U.S., Inc. 4770 Mercantile Drive, suite100, Fort Worth, TX 76137 U.S.A. Phone 940-383-7400 Fax 940-383-7466 ® www.maruyama-us.com P/N 275107-01 15.04 TAP/F...
