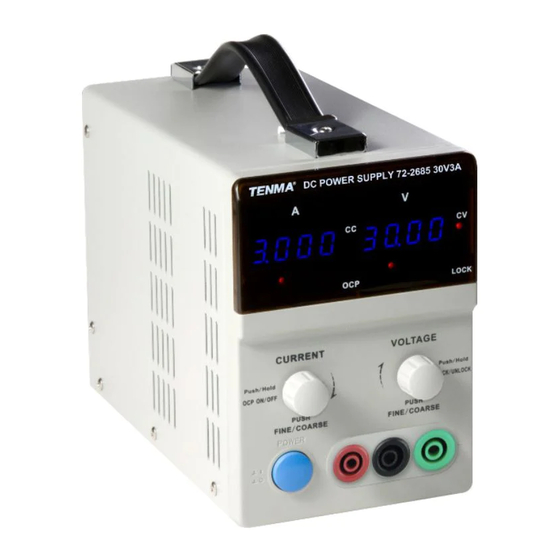

Digital-Control and Programmable
DC Power Supply
Models: 72-2685, 72-2690, 72-2695, 72-2700,
72-2705, 72-2710, 72-2715 & 72-2720
Details
Safety Instructions
Front Panel
Voltage and Current Adjustment Knob Operation
Operation of LOCK Function
Operation of Over Current Protection
Specifications
Remote Control
Page Number
2
3
3
5
5
6
7
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tenma 72-2685
Summary of Contents for Tenma 72-2685
-
Page 1: Dc Power Supply
Digital-Control and Programmable DC Power Supply Models: 72-2685, 72-2690, 72-2695, 72-2700, 72-2705, 72-2710, 72-2715 & 72-2720 WHAT'S INSIDE? Details Page Number Safety Instructions Front Panel INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF Voltage and Current Adjustment Knob Operation ELECTRICAL & ELECTRONIC EQUIPMENT... - Page 2 • Temperature: 0 to 40°C (32 to 104°F) • Location: Indoor Storage • Relative humidity: <70% Environment • Temperature: -10 to 70°C (14 to 158°F) Fuse Type Model 220/230V 110/120V 72-2685/72-2705 T4A/250V T2A/250V 72-2690/72-2710 T5A/250V T3A/250V 72-2695/72-2715 T5A/250V T3A/250V 72-2700/72-2720...
- Page 3 3. Constant current mode. Output 0=Of, 1=On N/AN/A 4. Constant voltage mode 9. *IDN? 5. Over current protection active. Description: Returns the 72-2685 identification. 6. Panel LOCK indicator. Example: *IDN? 7. Adjustment knob for current. 10. RCL<NR1> 8. Adjustment knob for voltage.
- Page 4 Multi-threaded TTY. *DIN? This should return the identification information: Manufacturer, model name, software version. TENMA 72-2705 Vx.xx KD Series Remote Control Syntax V2.0 Command format: VSET<X>:<NR2> Command Details 1. VSET: Command header 1. ISET<X>:<NR2>...
-
Page 5: Specifications
≤150ppm ≤150ppm Interfaces USB RS232, for models 72-2705, 72-2710, 72-2715 & 72-2720 164mm Accessories User manual x1, power cord x1, USB cable (72-2705, 72-2710, 72-2715, 72-2720) Weight & Dimensions (WxHxD) 72-2685, 72-2690, 72-2695, 72-2700: 110x156x260mm 72-2685: 4kg, 72-2690: 4.8kg 271mm...
