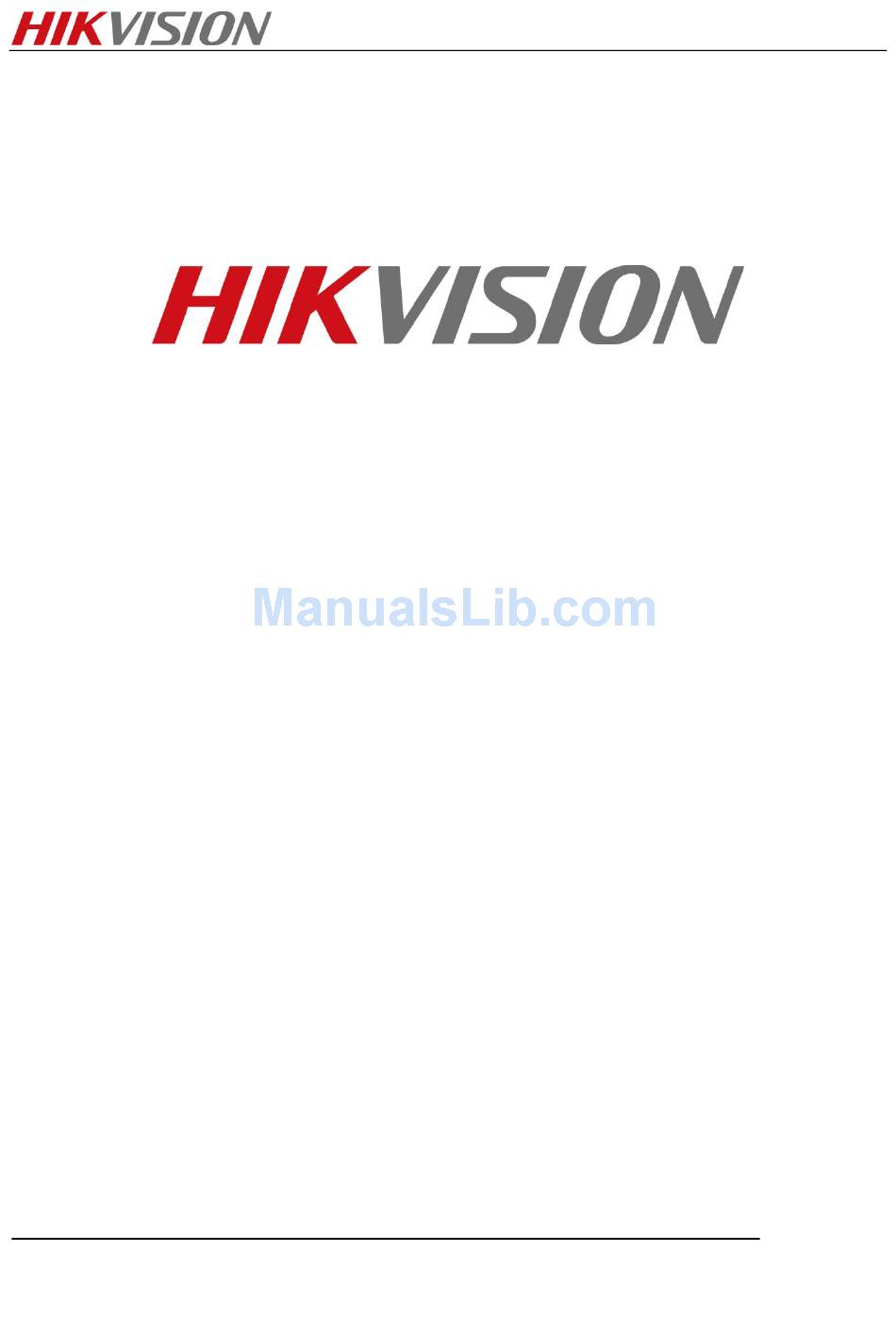

Hikvision Technical Manual
Speed Dome
Technical Manual
©2006 – 2012 by HIKVISION. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2DF1-574D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-2DF1-574D

Summary of Contents for HIKVISION DS-2DF1-574D

  • Page 1 Hikvision Technical Manual Speed Dome Technical Manual ©2006 – 2012 by HIKVISION. All rights reserved.
  • Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...

  • Page 3: Key Feature

     H.264/MJPEG video compression and the latest DaVinci processing chip and platform  Built-in Web server  SD/SDHC card local storage  Dual stream  Multiple network protocols supported: TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,RTSP,PPPoE,SMTP,NTP(FTP,SNMP optional ) ©2006 – 2012 by HIKVISION. All rights reserved.
  • Page 4 Pan Range 360°endless Pan Manual Speed: 0.1° -300° /s, Pan Speed Pan Preset Speed: 540°/s Pan and Tilt Tilt Range -5°-90°(Auto Flip) Tilt Manual Speed: 0.1°-240° /s, Tilt Speed Tilt Preset Speed: 400°/s ©2006 – 2012 by HIKVISION. All rights reserved.
  • Page 5 3 Levels: Administrator, Camera control, Live view only Security User authentication (ID and PW), Measures Host authentication (MAC address) Client Camera Pan /Tilt, Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode. ©2006 – 2012 by HIKVISION. All rights reserved.
  • Page 6 Various mounting modes optional Φ220×299.2mm (Φ8.66”×11.78”)(Outdoor) Dimension Φ183.4×247mm(Φ7.22”×9.72”) (Indoor) Φ245×240mm(Φ9.65”×9.45”) (In-ceiling) Weight 5Kg (11.02Ibs) (approx.) Long-arm wall mount: DS-1614ZJ; Indoor short-arm wall mount: DS-1615ZJ Mount Option Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ ©2006 – 2012 by HIKVISION. All rights reserved.
  • Page 7 Hikvision Technical Manual Dimension Outdoor Indoor ceiling Bore Size Unit: mm Accessories DS-1614ZJ Long-arm Wall Mount Bracket ©2006 – 2012 by HIKVISION. All rights reserved.

This manual is also suitable for:

Ds-2df1-5704dDs-2df1-5734d
