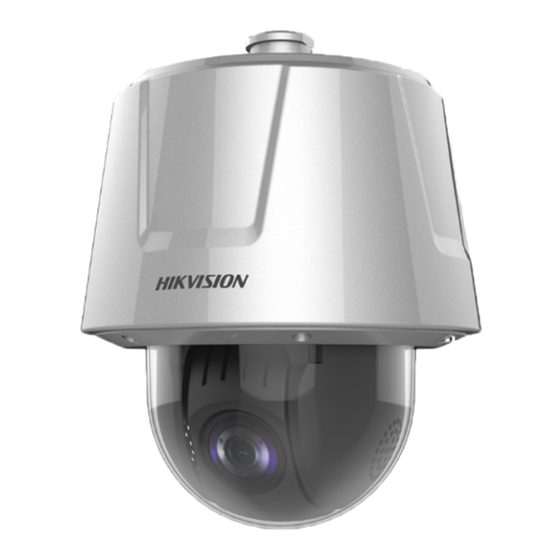

HIKVISION DS-2DT6232X-AELY User Manual

HIKVISION DS-2DT6232X-AELY User Manual

Network speed dome
Table of Contents

Advertisement

Quick Links

Network Speed Dome
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for HIKVISION DS-2DT6232X-AELY

  • Page 1 Network Speed Dome User Manual...
  • Page 2 With the philosophy of "Technology for the Good", Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
  • Page 3 Network Speed Dome User Manual control, selecting a suitable network environment (the Internet or Intranet) where video products are connected, establishing and constantly optimizing network security. Video products have made great contributions to the improvement of social security around the ●...
  • Page 4 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 5 Network Speed Dome User Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
  • Page 6: Table Of Contents

    Network Speed Dome User Manual Contents Chapter 1 Overview ........................1 1.1 Product Introduction ......................1 1.2 Key Function .......................... 1 1.3 System Requirement ......................2 Chapter 2 Device Activation and Accessing ................. 3 2.1 Activate Device ........................3 2.1.1 Activate Device via Web Browser .................. 3 2.1.2 Activate via SADP ......................
  • Page 7 Network Speed Dome User Manual 3.5.1 Set Face Picture Library ....................17 3.5.2 Set Face Picture Comparison ..................18 3.5.3 View Face Comparison Result ..................19 3.6 Capture Target with Feature ....................19 3.6.1 Set Detection Rule ...................... 20 3.6.2 Overlay and Capture ....................20 3.6.3 Advanced Parameters ....................
  • Page 8 Network Speed Dome User Manual 5.1 Live View Parameters ......................37 5.1.1 Start and Stop Live View ..................... 37 5.1.2 Aspect Ratio ........................ 37 5.1.3 Live View Stream Type ....................37 5.1.4 Quick Set Live View ..................... 37 5.1.5 Select the Third-Party Plug-in ..................38 5.1.6 Start Digital Zoom .......................
  • Page 9 Network Speed Dome User Manual 6.1.11 Smoothing ......................... 45 6.2 Audio Settings ........................45 6.2.1 Audio Input ......................... 45 6.2.2 Environmental Noise Filter ..................46 6.3 Two-way Audio ........................46 6.4 ROI ............................46 6.4.1 Set ROI ........................46 6.5 Display Info. on Stream ......................47 6.6 Display Settings ........................
  • Page 10 Network Speed Dome User Manual 7.3.3 View and Download Picture ..................62 Chapter 8 Event and Alarm ....................... 63 8.1 Basic Event ........................... 63 8.1.1 Set Motion Detection ....................63 8.1.2 Set Video Tampering Alarm ..................65 8.1.3 Set Exception Alarm ....................66 8.1.4 Set Alarm Input ......................
  • Page 11 Network Speed Dome User Manual 10.1.2 Multicast Discovery ....................84 10.2 Port ............................ 85 10.3 Port Mapping ........................86 10.3.1 Set Auto Port Mapping ....................86 10.3.2 Set Manual Port Mapping ..................86 10.3.3 Set Port Mapping on Router ..................87 10.4 SNMP ..........................
  • Page 12 Network Speed Dome User Manual 11.8 View Open Source Software License .................. 97 11.9 Set Live View Connection ....................97 11.10 Time and Date ........................97 11.10.1 Synchronize Time Manually ..................97 11.10.2 Synchronize Time by Satellite ................. 97 11.10.3 Set NTP Server ......................98 11.10.4 Set DST ........................
  • Page 13: Chapter 1 Overview

    Network Speed Dome User Manual Chapter 1 Overview 1.1 Product Introduction The F Series Network Speed Dome is an integration of HD camera, PTZ motion control module, and video content analysis algorithms, ideal for remote monitoring. The device has basic PTZ functions, such as presets, scans, and target tracking, and smart functions, such as Road Traffic, Face Capture and Smart Event.
  • Page 14: System Requirement

    Network Speed Dome User Manual The device supports PTZ functions, such as presets, scans, patrol, smart tracking and power-off memory. 1.3 System Requirement Your computer should meet the requirements for visiting and operating the product. Recommended Specifications Operating System Microsoft Windows XP/ Windows 7/ Windows 8/ Windows 10 Mac OS 10.13 or later Intel®...
  • Page 15: Chapter 2 Device Activation And Accessing

    Network Speed Dome User Manual Chapter 2 Device Activation and Accessing To protect the security and privacy of the user account and data, you should set a login password to activate the device when access the device via network. Note Refer to the user manual of the software client for the detailed information about the client software activation.
  • Page 16: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should belong to the same subnet.
  • Page 17: Access Device Via Web Browser

    Network Speed Dome User Manual 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP. 3) Input the admin password and click Modify to activate your IP address modification. 2.2 Access Device via Web Browser Before You Start Check the system requirement to confirm that the operating computer and web browser meets...
  • Page 18: Admin Password Recovery

    Network Speed Dome User Manual Operating System Web Browser Operation → Network Service to enable WebSocket or Websockets for normal view. Display and operation of certain functions are restricted. For example, Playback and Picture are not available. For detailed restricted function, refer to the actual device.
  • Page 19 Network Speed Dome User Manual Go to Configuration → System → Security → Security Service , and enable Enable Illegal Login Lock. Illegal Login Attempts and Locking Duration are configurable. Illegal Login Attempts When your login attempts with the wrong password reach the set times, the device is locked. Locking Duration The device releases the lock after the setting duration.
  • Page 20: Chapter 3 Smart Function

    Network Speed Dome User Manual Chapter 3 Smart Function 3.1 Allocate VCA Resource VCA resource offers you options to enable certain VCA functions according to actual needs. It helps allocate more resources to the desired functions. Steps 1. Go to Open Platform → VCA Resource . 2.
  • Page 21 Network Speed Dome User Manual 4. Click Area Settings to set the detection rule. 5. Select a detection scene from the drop-down list and change the Scene Name as required. The device supports multiple detection scenes with independent detection parameters. 6.
  • Page 22: Picture Settings

    Network Speed Dome User Manual 11. Set linkage method. See Linkage Method Settings . Direction Select the vehicle moving directions that trigger alarms. What to do next Go to Picture to search and view the captured pictures. When you select File Type as Vehicle Detection, you can search the pictures by license plate No.
  • Page 23: Advanced Parameters

    Network Speed Dome User Manual Note See Set Camera Info to set Device No. and Camera Info. FTP Picture Name Default and Custom are available. When Custom is selected, you can choose the information to form the picture file name. 3.3.3 Advanced Parameters The version of license plate recognition algorithm is shown.
  • Page 24: Set Auto Face Capture Rule

    Network Speed Dome User Manual Note This function is only supported by certain device models. ● To enable this function, you may need to select Face Capture on VCA Resource page. See ● Allocate VCA Resource for details. 3.4.1 Set Auto Face Capture Rule After setting the face capture rules and algorithm parameters, the device captures faces and triggers linkage actions automatically.
  • Page 25 Network Speed Dome User Manual Click to draw the distance on live image, or input values in the text fields of Min. Pupil Distance and Max. Pupil Distance. 6. Click Save. 7. Set arming schedule. See Set Arming Schedule . 8.
  • Page 26: Operate Manual Face Capture

    Network Speed Dome User Manual 3.4.2 Operate Manual Face Capture Capture the target face manually in live view image. Steps 1. Click Live View. 2. Click to start manual face capture. 3. Draw a frame to select the target face in live view image. The captured picture can be uploaded to the center.
  • Page 27: Face Capture Algorithm Parameters

    Network Speed Dome User Manual You can check desired items (Device No., Camera Info. and Capture Time) and adjust their order to display on captured pictures by See Set Camera Info to set Device No. and Camera Info. 3.4.4 Face Capture Algorithm Parameters It is used to set and optimize the parameters of the algorithm library for face capture.
  • Page 28 Network Speed Dome User Manual It is the similarity between the newly captured face and the picture in the duplicates removing library. When the similarity is higher than the value you set, the captured picture is regarded as a duplicated face and will be dropped. Duplicates Removing Library Grading Threshold It is the face grading threshold that triggers duplicates checking.
  • Page 29: Face Comparison

    Network Speed Dome User Manual Face Filtering Face Filtering Time It means the time interval between the camera detecting a face and taking a capture action. If the detected face stays in the scene for less than the set filtering time, capture will not be triggered.
  • Page 30: Set Face Picture Comparison

    Network Speed Dome User Manual Import face Click Import and select picture path. pictures in Note batch When you import face pictures in batch, the picture name is saved as the face name. For other face information, you should modify one by one manually.
  • Page 31: View Face Comparison Result

    Network Speed Dome User Manual Best The device captures and compares the target face continuously when the Comparison face target stays in the detection area, and upload the best scored face picture and related alarm information when the target face leaves the area. Quick The device capture and compares the target face when the face grading Comparison...
  • Page 32: Set Detection Rule

    Network Speed Dome User Manual 3.6.1 Set Detection Rule After the rules and algorithm parameters are set, the device captures targets of multiple types and triggers linkage actions automatically. Steps 1. Go to Open Platform → Capture Target with Feature → Rule . 2.
  • Page 33: Advanced Parameters

    Network Speed Dome User Manual Note Face Beautification slightly adjusts skin tone and reduces facial noise. Face Enhancement Check Face Enhancement and the device is able to capture better and clearer face pictures when it is dark. Background Picture Settings Comparing to target picture, background picture is the scene image offers extra environmental information.
  • Page 34 Network Speed Dome User Manual Note Remove Duplicated Faces, Face Picture Comparison, and Face Modeling cannot be turned on simultaneously, and the device can support only one function at a time. The last one you turned on can eventually take effect, and the other two turn off automatically. Similarity Threshold for Duplicates Removing It is the similarity between the newly captured face and the picture in the duplicates removing library.
  • Page 35: Smart Display

    Network Speed Dome User Manual It refers to the reference brightness of a face in the face exposure mode. If a face in the actual scene is brighter than the set reference brightness, the device lower the exposure level. If a face in the actual scene is darker than the set reference, the device increases the exposure level.
  • Page 36 Network Speed Dome User Manual Download Display Pictures Click and the device stores captured pictures to the browser cache. Hover the pointer over the icon to see the number of pictures in the cache. Click again to download the pictures in a package.
  • Page 37: Chapter 4 Ptz

    Network Speed Dome User Manual Chapter 4 PTZ PTZ is an abbreviation for pan, tilt, and zoom. It means the movement options of the camera. 4.1 PTZ Control In live view interface, you can use the PTZ control buttons to control the device panning, tilting, and zooming.
  • Page 38 Network Speed Dome User Manual Compatible The control speed is same as Keyboard Control Speed. Pedestrian Choose Pedestrian when you monitor the pedestrians. Non-motor Vehicle Choose Non-motor Vehicle when you monitor the non-motor vehicles. Motor Vehicle Choose Motor Vehicle when you monitor the motor vehicles.
  • Page 39: Set Preset

    Network Speed Dome User Manual Iris When the image is too dark, click the button to enlarge the iris. When the image is too bright, click the button to stop down the iris. 4.2 Set Preset A preset is a predefined image position. For the defined preset, you can call the preset No. to view the position.
  • Page 40: Set Patrol Scan

    Network Speed Dome User Manual Preset No. Function Preset No. Function Auto flip Set manual limits Back to origin Save manual limits Call patrol 1 Remote reboot Call patrol 2 Call OSD menu Call patrol 3 Stop a scan Call patrol 4 Start random scan Day mode Start frame scan...
  • Page 41: Set One-Touch Patrol

    Network Speed Dome User Manual Adjust the preset order. Note A patrol can be configured with 32 presets at most, and 2 presets at least. 4. Click OK to finish a patrol setting. 5. Repeat the steps above to configure multiple patrols. 6.
  • Page 42: Set Limit

    Network Speed Dome User Manual Note Recording stops when the space for pattern scan is 0%. 5. Click to complete one pattern scan path settings. 6. Click to call pattern scan. Stop pattern scan. Reset pattern scan path. Delete the selected pattern scan. Note If you need to delete all the pattern scans, go to Configuration →...
  • Page 43: Set Initial Position

    Network Speed Dome User Manual 4.6 Set Initial Position Initial position refers to the relative initial position of the device azimuth. You can set the initial position if you need to select one point in the scene as the base point. Steps 1.
  • Page 44: Set One-Touch Park

    Network Speed Dome User Manual 3. Set Park Time: the inactive time before the device starts park action. 4. Select Action Type according to your needs. 5. Select an Action Type ID, if you select patrol or preset as action type. When the action type is patrol, action type ID stands for patrol No.
  • Page 45: Set Device Position

    Network Speed Dome User Manual 4.10 Set Device Position Before You Start Go to Configuration → PTZ → Basic Settings → PTZ OSD to enable PT Status display. Steps 1. Go to Configuration → PTZ → Position Settings . 2. Select a PT Mode. Manual Use a direction indicating device to determine the North at the device location, and set the North for the device.
  • Page 46: Set Manual Compass

    Network Speed Dome User Manual 4.10.1 Set Manual Compass Use a direction indicating device to determine the North at the device location, and set the North for the device. Before You Start Use a direction indicating device to determine the north at the device location. Steps 1.
  • Page 47: Set Rapid Focus

    Network Speed Dome User Manual Steps 1. Go to Configuration → PTZ → Prioritize PTZ . 2. Set the priority signal and delayed time. Network The network signal controls the device with priority. RS-485 The RS-485 signal controls the device with priority. Delay It refers to the time interval of PTZ operation controlled by different signals.
  • Page 48 Network Speed Dome User Manual 9. Click Save.
  • Page 49: Chapter 5 Live View

    Network Speed Dome User Manual Chapter 5 Live View It introduces the live view parameters, function icons and transmission parameters settings. 5.1 Live View Parameters The supported functions vary depending on the model. 5.1.1 Start and Stop Live View Click Live View. Click to start live view.
  • Page 50: Select The Third-Party Plug-In

    Network Speed Dome User Manual 5.1.5 Select the Third-Party Plug-in When the live view cannot display via certain browsers, you can change the plug-in for live view according to the browser. Steps 1. Click Live View. 2. Click to select the plug-in. - When you access the device via Internet Explorer, you can select Webcomponents or QuickTime.
  • Page 51: Count Pixel

    Network Speed Dome User Manual 3. Click to disable this function. 5.1.9 Count Pixel It helps to get the height and width pixel of the selected region in the live view image. Steps 1. Click to enable the function. 2. Drag the mouse on the image to select a desired rectangle area. The width pixel and height pixel are displayed on the bottom of the live view image.
  • Page 52: Lens Initialization

    Network Speed Dome User Manual 5.1.12 Lens Initialization Lens initialization is used on the device equipped with motorized lens. The function can reset lens when long time zoom or focus results in blurred image. This function varies according to different models.
  • Page 53 Network Speed Dome User Manual TCP ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. It is suitable for the stable network environment. UDP is suitable for the unstable network environment that does not demand high video fluency.
  • Page 54: Chapter 6 Video And Audio

    Network Speed Dome User Manual Chapter 6 Video and Audio This part introduces the configuration of video and audio related parameters. 6.1 Video Settings This part introduces the settings of video parameters, such as, stream type, video encoding, and resolution. Go to setting page: Configuration →...
  • Page 55: Bitrate Type And Max. Bitrate

    Network Speed Dome User Manual 6.1.4 Bitrate Type and Max. Bitrate Constant Bitrate It means that the stream is compressed and transmitted at a comparatively fixed bitrate. The compression speed is fast, but mosaic may occur on the image. Variable Bitrate It means that the device automatically adjust the bitrate under the set Max.
  • Page 56: Profile

    Network Speed Dome User Manual H.264+ H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, you can estimate the HDD consumption by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes. When H.264+ is enabled, Max.
  • Page 57: I-Frame Interval

    Network Speed Dome User Manual 6.1.9 I-Frame Interval I-frame interval defines the number of frames between 2 I-frames. In H.264 and H.265, an I-frame, or intra frame, is a self-contained frame that can be independently decoded without any reference to other images. An I-frame consumes more bits than other frames.
  • Page 58: Environmental Noise Filter

    Network Speed Dome User Manual Audio Input Select MicIn for the built-in microphone, and LineIn for external audio pick-up device. Note MicIn is only supported by certain models. Input volume Adjust the volume of the audio input. 6.2.2 Environmental Noise Filter Set it as OFF or ON.
  • Page 59: Display Info. On Stream

    Network Speed Dome User Manual Before You Start Please check the video coding type. ROI is supported when the video coding type is H.264 or H. 265. Steps 1. Go to Configuration → Video/Audio → ROI . 2. Check Enable. 3.
  • Page 60: Scene Mode

    Network Speed Dome User Manual 6.6.1 Scene Mode There are several sets of image parameters predefined for different installation environments. Select a scene according to the actual installation environment to speed up the display settings. Image Adjustment By adjusting the Brightness, Saturation, Contrast and Sharpness, the image can be best displayed. Exposure Settings Exposure is controlled by the combination of iris, shutter, and gain.
  • Page 61 Network Speed Dome User Manual Focus Mode Auto The device focuses automatically as the scene changes. If you cannot get a well-focused image under auto mode, reduce light sources in the image and avoid flashing lights. Semi-auto The device focuses once after the PTZ and lens zooming. If the image is clear, the focus does not change when the scene changes.
  • Page 62 Network Speed Dome User Manual 2. Check Enable Supplement Light. 3. Click Save. 4. Go to Configuration → Image → Display Settings → Day/Night Switch to set supplement light parameters. Smart Supplement Light This feature uses smart image processing technology to reduce overexposure caused by supplement light.
  • Page 63: Image Parameters Switch

    Network Speed Dome User Manual Digital Noise Reduction is used to reduce the image noise and improve the image quality. Normal and Expert modes are selectable. Normal Set the DNR level to control the noise reduction degree. The higher level means stronger reduction degree.
  • Page 64: Mirror

    Network Speed Dome User Manual Note For Linked Scene configuration, refer to Scene Mode . 3. Click Save. Set Link to Preset You can set a preset to switch the image to a linked scene. Steps 1. Check Link to Preset. 2.
  • Page 65 Network Speed Dome User Manual Character Set Select character set for displayed information. If Korean is required to displayed on screen, select EUC-KR. Otherwise, select GBK. Displayed Information Set camera name, date, week, and their related display format. Text Overlay Set customized overlay text on image.
  • Page 66: Chapter 7 Video Recording And Picture Capture

    Network Speed Dome User Manual Chapter 7 Video Recording and Picture Capture This part introduces the operations of capturing video clips and snapshots, playback, and downloading captured files. 7.1 Storage Settings This part introduces the configuration of several common storage paths. 7.1.1 Memory Card You can view the capacity, free space, status, type, and property of the memory card.
  • Page 67 The device detects the status of Hikvision memory card. You receive notifications when your memory card is detected abnormal. Before You Start The configuration page only appears when a Hikvision memory card is installed to the device. Steps 1. Go to Configuration → Storage → Storage Management → Memory Card Detection .
  • Page 68: Set Ftp

    Network Speed Dome User Manual It shows the percentage of the remaining lifespan. The lifespan of a memory card may be influenced by factors such as its capacity and the bitrate. You need to change the memory card if the remaining lifespan is not enough. Health Status It shows the condition of your memory card.
  • Page 69: Set Nas

    Network Speed Dome User Manual Steps 1. Go to Configuration → Network → Advanced Settings → FTP . 2. Configure FTP settings. Server Address and Port The FTP server address and corresponding port. User Name and Password The FTP user should have the permission to upload pictures. If the FTP server supports picture uploading by anonymous users, you can check Anonymous to hide your device information during uploading.
  • Page 70: Emmc Protection

    Network Speed Dome User Manual Select file system protocol according to the operation system. Enter user name and password of the net HDD to guarantee the security if SMB/CIFS is selected. 3. Click Test to check whether the network disk is available. 4.
  • Page 71: Video Recording

    Network Speed Dome User Manual Picture Storage The ID of the picture storage region in the cloud video manager. Make Pool ID sure storage pool ID and the storage region ID are the same. 4. Click Test to test the configured settings. 5.
  • Page 72: Record Manually

    Network Speed Dome User Manual Event The video is recorded when configured event is detected. 4. Set schedule for the selected record type. Refer to Set Arming Schedule for the setting operation. 5. Click Advanced to set the advanced settings. Overwrite Enable Overwrite to overwrite the video records when the storage space is full.
  • Page 73: Capture Configuration

    Network Speed Dome User Manual 3. Click to play the video files. - Click to clip video files. - Click to play video files in full screen. Press ESC to exit full screen. Note Go to Configuration → Local , click Save clips to to change the saving path of clipped video files. 4.
  • Page 74: Capture Manually

    Network Speed Dome User Manual 7.3.2 Capture Manually Steps 1. Go to Configuration → Local . 2. Set the Image Format and saving path to for snapshots. JPEG The picture size of this format is comparatively small, which is better for network transmission.
  • Page 75: Chapter 8 Event And Alarm

    Network Speed Dome User Manual Chapter 8 Event and Alarm This part introduces the configuration of events. The device takes certain response to triggered alarm. 8.1 Basic Event 8.1.1 Set Motion Detection This function detects moving objects in the detection region and triggers linkage actions. Steps Note This function is not available when Smart Event is enabled.
  • Page 76 Network Speed Dome User Manual Figure 8-1 Set Rules Stop Drawing Stop drawing one area. Clear All Clear all the areas. 4. Optional: You can set the parameters of multiple areas by repeating the above steps. Expert Mode You can configure different motion detection parameters for day and night according to the actual needs.
  • Page 77: Set Video Tampering Alarm

    Network Speed Dome User Manual Sensitivity The higher the value of sensitivity is, the more sensitive the motion detection is. If scheduled image settings is enabled, the sensitivity of day and night can be set separately. 3. Select an Area and click Draw Area. Click and drag the mouse on the live image and then release the mouse to finish drawing one area.
  • Page 78: Set Exception Alarm

    Network Speed Dome User Manual Figure 8-3 Set Video Tampering Area 5. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for setting linkage method. 6. Click Save. 8.1.3 Set Exception Alarm Exception such as network disconnection can trigger the device to take corresponding action. Steps 1.
  • Page 79: Set Alarm Input

    Network Speed Dome User Manual IP Address Conflicted The IP address of current device is same as that of other device in the network. Illegal Login Incorrect user name or password is entered. 3. Refer to Linkage Method Settings for setting linkage method. 4.
  • Page 80: Set Intrusion Detection

    Network Speed Dome User Manual Detect sudden increase of sound intensity. Sensitivity and Sound Intensity Threshold are configurable. Note The lower the sensitivity is, the more significant the change should be to trigger the ● detection. The sound intensity threshold refers to the sound intensity reference for the detection. It is ●...
  • Page 81 Network Speed Dome User Manual 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy. Only targets whose size are between the maximum size and the minimum size trigger the detection. 1) Click Max. Size, and drag the mouse on live image. If you want to change the size, click the button and draw again.
  • Page 82: Set Line Crossing Detection

    Network Speed Dome User Manual 8.2.3 Set Line Crossing Detection Line crossing detection is used to detect the object movement of crossing a predefined line. When it occurs, the device takes linkage actions as response. Before You Start You need to enable Smart Event on the VCA Resource page to show the configuration page. See Allocate VCA Resource for instructions.
  • Page 83: Set Region Entrance Detection

    Network Speed Dome User Manual Figure 8-5 Draw Line 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy. Only targets whose size are between the maximum size and the minimum size trigger the detection.
  • Page 84 Network Speed Dome User Manual Before You Start You need to enable Smart Event on the VCA Resource page to show the configuration page. See Allocate VCA Resource for instructions. Steps 1. Go to Open Platform → Smart Event → Region Entrance Detection . 2.
  • Page 85: Set Region Exiting Detection

    Network Speed Dome User Manual Figure 8-6 Draw Area 8. Click Save. 9. Repeat above steps to set other regions. 10. Set arming schedule. See Set Arming Schedule . 11. Set linkage method. See Linkage Method Settings . 8.2.5 Set Region Exiting Detection Region exiting detection is used to detect the objects movement of exiting from a predefined area.
  • Page 86 Network Speed Dome User Manual 2) Click Detection Area. 3) Click on the live image to draw the boundaries of the detection area, and right click to complete drawing. 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy.
  • Page 87: Set Object Removal Detection

    Network Speed Dome User Manual 8.2.6 Set Object Removal Detection Object removal detection detects whether the objects are removed from the predefined detection area, such as exhibits on display. When it occurs, the device takes linkage actions as response. Before You Start You need to enable Smart Event on the VCA Resource page to show the configuration page.
  • Page 88: Set Unattended Baggage Detection

    Network Speed Dome User Manual Figure 8-8 Draw Area 8. Click Save. 9. Repeat above steps to set other regions. 10. Set arming schedule. See Set Arming Schedule . 11. Set linkage method. See Linkage Method Settings . 8.2.7 Set Unattended Baggage Detection Unattended baggage detection is used to detect the objects left over in the predefined area.
  • Page 89 Network Speed Dome User Manual 2) Click Detection Area. 3) Click on the live image to draw the boundaries of the detection area, and right click to complete drawing. 6. Optional: Set the minimum size and the maximum size for the target to improve detection accuracy.
  • Page 90: Set Tracking Parameters

    Network Speed Dome User Manual 8.2.8 Set Tracking Parameters Adjust the motion parameters of the device for better target tracking performance. Steps 1. Go to Open Platform → Smart Event → Advanced Parameters . 2. Optional: Check Tuning Mode. Note Tuning mode is to display the information that helps debugging the function.
  • Page 91: Chapter 9 Arming Schedule And Alarm Linkage

    Network Speed Dome User Manual Chapter 9 Arming Schedule and Alarm Linkage Arming schedule is a customized time period in which the device performs certain tasks. Alarm linkage is the response to the detected certain incident or target during the scheduled time. 9.1 Set Arming Schedule Set the valid time of the device tasks.
  • Page 92: Ftp/Nas/Memory Card Uploading

    Network Speed Dome User Manual Automatic Alarm Set the automatic alarm parameters, then the device triggers an alarm output automatically in the set arming schedule. Steps 1. Set automatic alarm parameters. Alarm Output No. Select the alarm output No. according to the alarm interface connected to the external alarm device.
  • Page 93: Send Email

    Network Speed Dome User Manual Refer to Set FTP to set the FTP server. Refer to Set NAS for NAS configuration. Refer to Set New or Unencrypted Memory Card for memory card storage configuration. 9.2.3 Send Email Check Send Email, and the device sends an email to the designated addresses with alarm information when an alarm event is detected.
  • Page 94: Notify Surveillance Center

    Network Speed Dome User Manual 9.2.4 Notify Surveillance Center Check Notify Surveillance Center, the alarm information is uploaded to the surveillance center when an alarm event is detected. 9.2.5 Smart Tracking Check Smart Tracking, and the device tracks the target when an alarm event is detected. Note This function is only supported by certain models.
  • Page 95: Chapter 10 Network Settings

    Network Speed Dome User Manual Chapter 10 Network Settings 10.1 TCP/IP TCP/IP settings must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other. Go to Configuration →...
  • Page 96: Multicast

    Network Speed Dome User Manual Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction. The valid value range of MTU is 1280 to 1500.
  • Page 97: Port

    Network Speed Dome User Manual 10.2 Port The device port can be modified when the device cannot access the network due to port conflicts. Caution Do not modify the default port parameters at will, otherwise the device may be inaccessible. Go to Configuration →...
  • Page 98: Port Mapping

    Network Speed Dome User Manual 10.3 Port Mapping By setting port mapping, you can access devices through the specified port. Before You Start When the ports in the device are the same as those of other devices in the network, refer to Port to modify the device ports.
  • Page 99: Set Port Mapping On Router

    Network Speed Dome User Manual 10.3.3 Set Port Mapping on Router The following settings are for a certain router. The settings vary depending on different models of routers. Steps 1. Select the WAN Connection Type. 2. Set the IP Address, Subnet Mask and other network parameters of the router. 3.
  • Page 100: Snmp

    Network Speed Dome User Manual 10.4 SNMP You can set the SNMP network management protocol to get the alarm event and exception messages in network transmission. Before You Start Before setting the SNMP, you should download the SNMP software and manage to receive the device information via SNMP port.
  • Page 101: Access To Device Via Pppoe Dial Up Connection

    Network Speed Dome User Manual By Client Software Add domain name to the client software. Refer to the client manual for specific adding methods. 10.6 Access to Device via PPPoE Dial Up Connection This device supports the PPPoE auto dial-up function. The device gets a public IP address by ADSL dial-up after the device is connected to a modem.
  • Page 102: Enable Hik-Connect Service On Camera

    Network Speed Dome User Manual Note Hik-Connect service should be supported by the camera. 10.7.1 Enable Hik-Connect Service on Camera Hik-Connect service should be enabled on your camera before using the service. You can enable the service through SADP software or Web browser. Enable Hik-Connect Service via Web Browser Follow the following steps to enable Hik-Connect Service via Web Browser.
  • Page 103: Set Up Hik-Connect

    - Visit https://appstore.hikvision.com to download the application according to your mobile phone system. - Visit the official site of our company. Then go to Support → Tools → Hikvision App Store . - Scan the QR code below to download the application.
  • Page 104: Set Isup

    Network Speed Dome User Manual Note The router should be the same one which your mobile phone has connected to. 9. Tap Add in the next interface to finish adding. For detailed information, refer to the user manual of the Hik-Connect app. 10.8 Set ISUP When the device is registered on ISUP platform (formerly called Ehome), you can visit and manage the device, transmit data, and forward alarm information over public network.
  • Page 105: Set Alarm Server

    Network Speed Dome User Manual 1. Go to Configuration → Network → Advanced Settings → Network Service . 2. Set network service. WebSocket & WebSockets WebSocket or WebSockets protocol should be enabled if you use Google Chrome 57 and its above version or Mozilla Firefox 52 and its above version to visit the device.
  • Page 106: Tcp Acceleration

    Network Speed Dome User Manual Steps 1. Go to Configuration → Network → Advanced Settings → Alarm Server . 2. Enter Destination IP or Host Name, URL, and Port. 3. Select Protocol. Note HTTP, HTTPS, and ISUP are selectable. It is recommended to use HTTPS, as it encrypts the data transmission during communication.
  • Page 107: Chapter 11 System And Security

    Network Speed Dome User Manual Chapter 11 System and Security It introduces system maintenance, system settings and security management, and explains how to configure relevant parameters. 11.1 View Device Information You can view device information, such as Device No., Model, Serial No. and Firmware Version. Enter Configuration →...
  • Page 108: Import And Export Configuration File

    Network Speed Dome User Manual 11.4 Import and Export Configuration File It helps speed up batch configuration on other devices with the same parameters. Steps 1. Export configuration file. 1) Go to Configuration → System → Maintenance → Upgrade & Maintenance . 2) Click Device Parameters and input the encryption password to export the current configuration file.
  • Page 109: View Open Source Software License

    Network Speed Dome User Manual Firmware Directory Locate the directory which the upgrade file belongs to. 3. Click Browse to select the upgrade file. 4. Click Upgrade. 11.8 View Open Source Software License Go to Configuration → System → System Settings → About Device , and click View Licenses. 11.9 Set Live View Connection It controls the remote live view connection amount.
  • Page 110: Set Ntp Server

    Network Speed Dome User Manual 2. Select Satellite Time Sync.. 3. Set Interval. 4. Click Save. 11.10.3 Set NTP Server You can use NTP server when accurate and reliable time source is required. Before You Start Set up a NTP server or obtain NTP server information. Steps 1.
  • Page 111: Security

    Network Speed Dome User Manual 2. Set the RS-485 parameters. Note You should keep the parameters of the device and the computer or terminal all the same. 3. Click Save. 11.12 Security You can improve system security by setting security parameters. 11.12.1 Authentication You can improve network access security by setting RTSP and WEB authentication.
  • Page 112: Set Ip Address Filter

    Network Speed Dome User Manual 11.12.2 Set IP Address Filter IP address filter is a tool for access control. You can enable the IP address filter to allow or forbid the visits from the certain IP addresses. IP address refers to IPv4. Steps 1.
  • Page 113: Set Https

    Network Speed Dome User Manual 11.12.4 Set HTTPS HTTPS is a network protocol that enables encrypted transmission and identity authentication, which improves the security of remote access. Steps 1. Go to Configuration → Network → Advanced Settings → HTTPS . 2.
  • Page 114: Set Qos

    Network Speed Dome User Manual Set Log Server The log server should support syslog (RFC 3164) over TLS. Before You Start Install client and CA certificates before configuration. Refer to Certificate Management for ● detailed information. Select certificates according to the requirement of the log server. If two-way authentication is ●...
  • Page 115: Ssh

    Network Speed Dome User Manual Select protocol and version according to router information. User name and password of server are required. Note If you set the Protocol to EAP-TLS, select the Client Certificate and CA Certificate. ● If the function is abnormal, check if the selected certificate is abnormal in Certificate ●...
  • Page 116 Network Speed Dome User Manual 3. Input certificate information. Note The input certificate ID cannot be the same as the existing ones. 4. Click OK to save and install the certificate. The created certificate is displayed in the Server/Client Certificate list. If the certificate is used by certain functions, the function name is shown in the column Functions.
  • Page 117 Network Speed Dome User Manual Install Other Authorized Certificate If you already has an authorized certificate (not created by the device), you can import it to the device directly. Steps 1. Go to Configuration → System → Security → Certificate Management . 2.
  • Page 118: User And Account

    Network Speed Dome User Manual Enable Certificate Expiration Alarm Steps 1. Check Enable Certificate Expiration Alarm. If enabled, you will receive an email or the camera links to the surveillance center that the certificate will expire soon, or is expired or abnormal. 2.
  • Page 119 Network Speed Dome User Manual Operators can be assigned all permission except for operations on the administrator and creating accounts. Modify Select a user and click Modify to change the password and permission. Delete Select a user and click Delete. Note The administrator can add up to 31 user accounts.
  • Page 120: Appendix A. Device Command

    Network Speed Dome User Manual Appendix A. Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for all Hikvision network cameras.
  • Page 121: Appendix B. Device Communication Matrix

    Network Speed Dome User Manual Appendix B. Device Communication Matrix Scan the following QR code to get device communication matrix. Note that the matrix contains all communication ports of Hikvision network cameras.
  • Page 122 UD24535B-B...

Table of Contents
