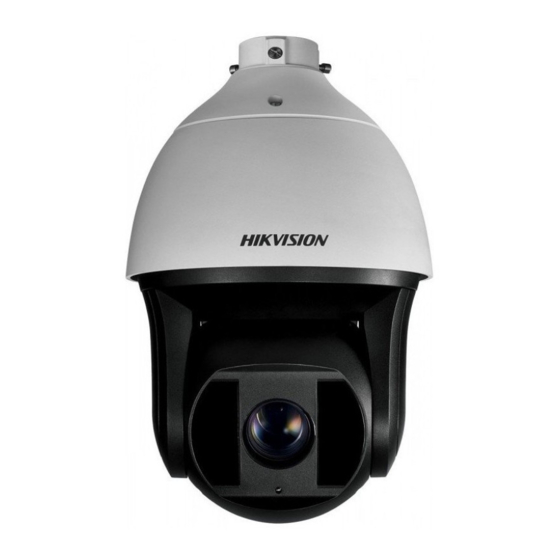

HIKVISION DS-2DF8223I-AEL Installation Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. Security Camera
  5. DS-2DF8223I-AEL
  6. Installation manual

HIKVISION DS-2DF8223I-AEL Installation Manual

Network speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Network Speed Dome
Installation Manual
UD.6L0201A1835A02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2DF8223I-AEL and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2DF8223I-AEL

Summary of Contents for HIKVISION DS-2DF8223I-AEL

  • Page 1 Network Speed Dome Installation Manual UD.6L0201A1835A02...
  • Page 2 Network Speed Dome Installation Manual Installation Manual About this Manual This Manual is applicable to 5-inch, 6.5-inch, 7-inch IR and 8-inch IR Network Speed Dome. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.

  • Page 3: Regulatory Information

    Network Speed Dome Installation Manual Regulatory Information FCC Information compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Safety Instruction

    Network Speed Dome Installation Manual Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. The precaution measure is divided into ‘Warnings’ and ‘Cautions’: Warnings: Serious injury or death may be caused if any of these warnings are neglected. Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.
  • Page 5 Network Speed Dome Installation Manual  Exposing the equipment to direct sun light, low ventilation or heat source such as heater or radiator is forbidden (ignorance can cause fire danger).  Do not aim the speed dome at the sun or extra bright places. A blooming or smear may occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.

  • Page 6: Table Of Contents

    Network Speed Dome Installation Manual Table of Contents Chapter 1 Installation............................1 Installation and Cabling ............................1 1.1.1 Installing the Type I Speed Dome ........................1 1.1.2 Installing the Type II Speed Dome ........................5 1.1.3 Installing the Type III Speed Dome ........................8 1.1.4 Installing the Type IV Speed Dome ........................

  • Page 7: Chapter 1 Installation

    Network Speed Dome Installation Manual Chapter 1 Installation Before you start: Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. Do not drag the waterproof cables as shown in Figure 1-1, otherwise the waterproof performance is affected.
  • Page 8 Network Speed Dome Installation Manual For Integrated 5-inch speed dome: Remove the protective foam, sticker and lens cover from the dome drive. As shown in Figure 1-4. Back Box Lens Cover Lower Dome Protective Foam Figure 1-2 Remove the Lower Dome Figure 1-3 Remove the sticker for Integrated 5-inch speed dome Figure 1-4 Remove the Sticker for Separate 5-inch speed dome 3.
  • Page 9 Network Speed Dome Installation Manual Micro SD Card Slot Figure 1-5 Micro SD Card Slot 4. Switch the Hi-PoE and PoE+ Modes. Power supply via Hi-PoE is supported by some speed dome series. The mode of PoE+ or Hi-PoE can be selected. Follow the steps below to switch the mode. Steps: 1) Push the lock to open the base plate, and you can see the PCB on the plate.
  • Page 10 Network Speed Dome Installation Manual Figure 1-7 Install the Bracket  For cement wall, you need to use the expansion screw to fix the bracket. The mounting hole of the expansion pipe on the wall should align with the mounting hole on the bracket. ...

  • Page 11: Installing The Type Ii Speed Dome

    Network Speed Dome Installation Manual  The bracket in Figure 1-7 is the recommended bracket for this series of speed dome, and a pendent adapter is required if any other bracket is selected. See Figure 1-10.  The dimension of pendant adapter is G1 Pendant Adapter Lock Screw Figure 1-10 Pendent Adapter...
  • Page 12 Network Speed Dome Installation Manual Back Box Lens Cover Sticker Lower Dome Protective Foam Figure 1-12 Remove the Protective Elements 3. Install the micro SD card of the speed dome. 2 types of the 6.5-inch speed dome structure are provided, as shown in the following figures;...
  • Page 13 Network Speed Dome Installation Manual 7. Secure the bracket with 4 hex nuts and washers Figure 1-14 Secure the Bracket 8. Install the speed dome to the bracket. 1) Hook the back box of the speed dome to the bracket with the safety rope. Route the cables through the bracket.

  • Page 14: Installing The Type Iii Speed Dome

    Network Speed Dome Installation Manual Pendant Adapter Lock Screw Figure 1-17 Pendent Adapter 1.1.3 Installing the Type III Speed Dome Steps: 1. Remove the protective sticker as shown in Figure 1-18. Protective Sticker Figure 1-18 Protective Sticker 2. Remove the cover on the back of the speed dome as shown in Figure 1-19. Insert the SD card to the SD card slot and install the cover back.
  • Page 15 Network Speed Dome Installation Manual SD CARD SD Card Slot Figure 1-19 SD Card Slot 3. Secure the bracket to the wall with four screws. For details, see step 6 in the section 1.1.1 Installing the Type I Speed Dome. Figure 1-20 Install the Bracket 4.
  • Page 16 Network Speed Dome Installation Manual Safety Rope Figure 1-21 Install the Speed Dome 4) Loosen the two lock screws on the bracket. 5) Install the speed dome to the bracket. Rotate the speed dome clockwise tightly. 6) Secure the two lock screws with the Allen wrench as shown in Figure 1-22. Figure 1-22 Secure the Speed Dome 5.

  • Page 17: Installing The Type Iv Speed Dome

    Network Speed Dome Installation Manual Pendant Adapter Lock Screw Figure 1-23 Pendent Adapter 1.1.4 Installing the Type IV Speed Dome Steps: 1. Remove the protective sticker as shown in Figure 1-24. Protective Sticker Figure 1-24 Remove Protective Sticker 2. Remove the cover on the back of the speed dome. Insert the SD card to the SD card slot and install the cover back.
  • Page 18 Network Speed Dome Installation Manual Figure 1-26 Secure the Bracket 4. Apply thread tape to the thread of the head cover and rotate the head cover to the bracket. Secure the head cover to the bracket with set screws (supplied). Figure 1-27 Secure the Head Cover 5.
  • Page 19 Network Speed Dome Installation Manual Figure 1-30 Route the Cables 9. Align the back box of the speed dome with the head cover. Use an Allen wrench to tighten the lock screws to secure the speed dome and the bracket. Lock Screws Figure 1-31 Secure the Speed Dome Remove the protective film of the IR or laser light after you finish installing.

  • Page 20: Connecting The Cables

    Network Speed Dome Installation Manual 1.1.5 Connecting the Cables Before you start: Please make sure the power of the dome is off before connecting the cables. The cable interfaces of speed dome are shown in the Figure 1-33. Please refer to the following figure for connecting the cables.

  • Page 21: Power Supply

    Network Speed Dome Installation Manual JQC- 3FG GND OUT Relay DC Load ( 10 A 250VAC) 30VDC ～220V AC Dome OUT(n) OUT(n) Dome Relay Output Relay Output OUT(n) OUT(n) Diagram (left) Diagram(right) Figure 1-34 Alarm Out Connections The alarm provides the relay output, and the external power supply is required when it connects to the alarm device.
  • Page 22 Network Speed Dome Installation Manual 1: Power Indicator 2: PORT Indicator 3:DATA&POWER OUT 4: DATA IN Network Speed Ethernet Dome Figure 1-35 Hi-PoE Connection Steps: 1. Connect the Hi-PoE module to the internet via the DATA IN interface with a network cable. 2.

  • Page 23: Chapter 2 Mounting Applications

    Network Speed Dome Installation Manual Chapter 2 Mounting Applications Before you start:  For cement wall, you need to use the expansion screw to fix the bracket. The mounting hole of the expansion pipe on the wall should align with the mounting hole on the bracket. ...

  • Page 24: In-Ceiling Mounting Applications

    Network Speed Dome Installation Manual bracket with expansion screws on the wall. 3. Secure the bracket with 4 hex nuts and washers. Figure 2-3 Drill Screw Holes 4. Install the speed dome to the bracket. Please refer to Section 1.1 Installation and Cabling for installation details.
  • Page 25 Network Speed Dome Installation Manual 2-5. 2. Remove the protective lens cover, foam and sticker from the dome drive. 3. Attach lower dome to the back box, and rotate clockwise to secure it. Protective Foam Back Box Lower Dome Protective Sticker Figure 2-5 Remove the Protective Accessory 4.
  • Page 26 Network Speed Dome Installation Manual Lock Lock Figure 2-7 Locks and Lock Screws 2) Push the back box into the mounting hole in the ceiling 3) Tighten the lock screws with the screwdriver and the locks will automatically rotate outwards to secure the in-ceiling bracket to the ceiling. Ceiling Lock Figure 2-8 Install the back box...

  • Page 27: Ceiling Mounting Applications

    Network Speed Dome Installation Manual 2.3 Ceiling Mounting Applications The ceiling mounting is only applicable to the indoor models of 5-inch speed dome. Before you start: The ceiling mounting is applicable to the indoor/outdoor solid ceiling construction. The followings are the mandatory precondition for ceiling mounting: ...

  • Page 28: Wiring For Ceiling Mounting Applications

    Network Speed Dome Installation Manual 2.3.2 Wiring For Ceiling Mounting Applications The cables of dome can be routed either from the top or the side of the back box, as shown in Figure 2-12. For the cables routed from the top of the back box, it is required to drill a cable hole in the ceiling.
  • Page 29 Network Speed Dome Installation Manual Figure 2-14 Secure the Mounting Base 7. Install the speed dome to the mounting base. 1) Route the cables for the speed dome. Align the bottom of the speed dome with the mounting base. 2) Line up the direction of arrow with the spring end of the mounting base. 3) Push the speed dome upwards and then forwards in the direction of arrow.

  • Page 30: Appendix

    Network Speed Dome Installation Manual Appendix Appendix 1 Lightning & Surge Protection This product adopts TVS plate lightning protection technology to avoid damage caused by pulse signal that is below 6000V, like instantaneous lighting stroke, surging, etc. According to the actual outdoor situation, necessary protection measures must be taken, besides ensuring the electrical safety.

  • Page 31: Appendix 2 Bubble Maintenance

    Network Speed Dome Installation Manual Appendix 2 Bubble Maintenance The bubble is a transparent plastic. The dust, oil and finger print, etc. will cause scratch or image blur. Please refer to the following method to clean the bubble.  Handling dust Use oil free soft brush or blowing dust ball to clean the dust.

  • Page 32: Appendix 3 Rs485 Bus Connection

    Network Speed Dome Installation Manual Appendix 3 RS485 Bus Connection  General Property of RS485 Bus According to RS485 industry bus standard, RS485 is a half-duplex communication bus which has 120Ω characteristic impendence; the maximum load ability is 32 payloads (including controller device and controlled device).
  • Page 33 Network Speed Dome Installation Manual Controller Figure A-4 Star Shape Connection For such case, the best way is adding a RS485 distributor. This product can effectively change the star-shape connection to which satisfies the requirement of RS485 industry standard, in order to avoid those problems and improve the communication reliability.
  • Page 34 Network Speed Dome Installation Manual Problem Possible Reasons To Solve the Problem 2. RS485+ or RS485-wire is 2. Change a RS485 wire. controlled broken. but not 3. The speed dome is too far away 3. Add a terminal resistor. smoothly. from the remote control device.

  • Page 35: Appendix 4 12Vdc Wire Gauge & Transmission Distance

    Network Speed Dome Installation Manual Appendix 4 12VDC Wire Gauge & Transmission Distance The following table describes the recommended max. distance adopted for the certain wire gauge when the loss rate of 12VDC voltage is less than 15%. For the DC driven device, the maximum voltage loss rate is 15% allowable.

  • Page 36: Appendix 5 24Vac Wire Gauge & Transmission Distance

    Network Speed Dome Installation Manual Appendix 5 24VAC Wire Gauge & Transmission Distance The following table describes the recommended Max. distance adopted for the certain wire gauge when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum voltage loss rate is 10% allowable.

  • Page 37: Appendix 6 Wire Gauge Standards

    Network Speed Dome Installation Manual Appendix 6 Wire Gauge Standards American Cross-sectional Bare Wire British Wire Wire Gauge Area of Bare Gauge(mm) Gauge SWG Wire(mm 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500 4.9080 3.000 7.0683...
