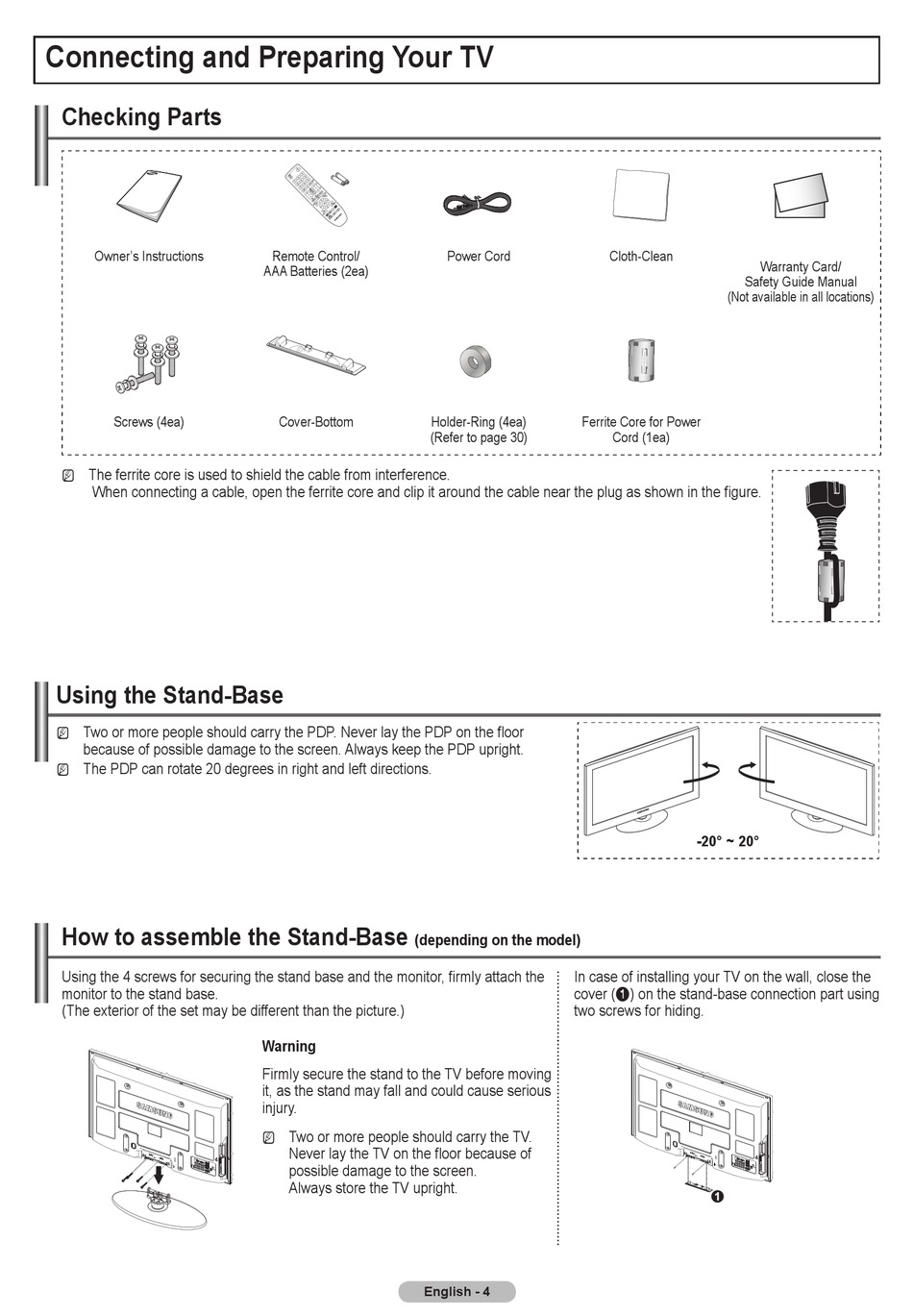

Connecting and Preparing Your TV
Checking Parts
Owner's Instructions
Screws (4ea)
The ferrite core is used to shield the cable from interference.
When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

Using the Stand-Base

Two or more people should carry the PDP. Never lay the PDP on the floor
because of possible damage to the screen. Always keep the PDP upright.
The PDP can rotate 20 degrees in right and left directions.
How to assemble the Stand-Base
Using the 4 screws for securing the stand base and the monitor, firmly attach the
monitor to the stand base.
(The exterior of the set may be different than the picture.)
Remote Control/
AAA Batteries (2ea)
Holder-Ring (4ea)
(Refer to page 30)
(depending on the model)
Firmly secure the stand to the TV before moving
it, as the stand may fall and could cause serious
Two or more people should carry the TV.
Never lay the TV on the floor because of
possible damage to the screen.
Always store the TV upright.
English - 4
Power Cord
Ferrite Core for Power
Cord (1ea)
In case of installing your TV on the wall, close the
cover (1) on the stand-base connection part using
two screws for hiding.
Warranty Card/
Safety Guide Manual
(Not available in all locations)
-20° ~ 20°
