Important characteristics

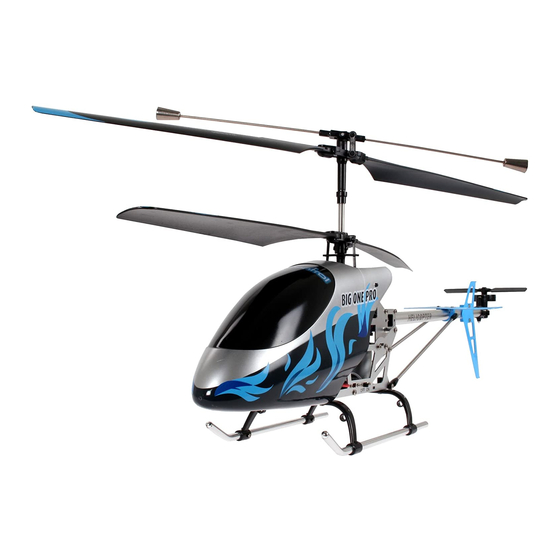

Helicopter The Big One:
·
Sturdy aerodynamic aluminium fuselage
·
Replaceable,
rechargeable li-Po
battery
(Lithium
polymer)
·
New coaxial rotor system with electronic gyro for
outstanding flight characteristics
·
Uncomplicated charging of
the
battery with
the
included charger
Remote control unit:
·
3-Channei-GHz-Remote control
·
Trimming functions for fine tuning
·
LED indicat,or
Maintenance and care:
Operating instructions
Safety guidelines:
· This
helicopter is suitable
for indoor use
and can also be
flown
outdoors when
the
wind
is
absolutely still.
·
This
helicopter is suitable
for
children of
1S
years
upwards.
Parents
must supervise their children whilst the
helicopter
is
in the air.
·
Keep
hands,
face, hair and
loose
clothing away
from
the
rotors.
·
Switch off
the
remote control
unit
and
the helicopter
when
they
are
not
being used.
· Remove the
batteries
from the
remote control when they
are
not
being used.
·
Always observe
the
helicopter
in
order
to
avoid losing
control
of it.
·
We recommend
new
alkali-manganese batteries or
rechargeable batteries
for the remote
control.
lim:
www.revell·control.de
© 2011 Revell GmbH & Co.KG,
HenschelstraiSe 20 - 30, D-322S7 BOnde,
REVELL IS THE REGISTERED TRADEMARK
2.4 GHz REMOTE CONTROL
·
As soon as the
remote
control unit stops working reliably,
insert new batteries.
· Please retain these Operating
instructions.
· The
user should only operate
this helicopter
according to
the
instructions for
use in these
Operating
instructions.
·
Do
not fly
the helicopter close to people, animals, waterways
and
power
supply lines.
· The
charger
for
the
Li-Po battery is
specially produced
to
charge
the helicopter battery.
Only use the charger
to
charge
the helicopter battery; not
for
other
batteries.
•
This
aircraft is
not
suitable for people with physical or mental
disabilities. We recommend
that inexperienced flyers
start
up
the helicopter
under
the supervision of an experienced pilot.
· The
helicopter should not
be
used
in temperatures
above
4S°C/113°F or below
10°C/S0°F.
·
Please
only wipe
down the helicopter
using a clean moist cloth.
The helicopter is equipped with a rechargeable Li-Po
battery.
Please observe the following safety guidelines:
Battery requirements
for the helicopter:
· Protect the helicopter
and
the
batteries
against direct
sun
irradiation and/or direct heat
·
Never
bring
the
helicopter in
contact with water, as
the
electronics may be damaged.
Battery safety guidelines for remote control:
·
Non-rechargeable
batteries must
not be
charged.
·
Rechargeable batteries
must be
removed from
the
remote control unit.
·
Rechargeable batteries may only
be
charged under the supervision
of adults.
· Different
battery
types or new and used batteries must
not
be
used together.
· Only
the
recommended batteries or
those
of an equivalent
type may be
used.
· Disposable batteries
for
this remote control unit and other electrical devices
operated
in
the
household
can
be replaced by
rechargeable
batteries for
environmental reasons.
·
The
batteries
must
be inserted with
the
correct polarity (
+
and
-).
·
Empty
batteries must
be removed
from
the remote
control
unit.
·The terminal
strips
must
not
be
short-circuited.
Remove the
batteries from
the
remote control
unit if
they are
not
required for a longer
period of
time.
WEEE: At the end of
this device's
useful life, please
remove
all the
batteries
and dispose of
them
sepa-
rately. Take electrical appliances
to the
local collection
points for waste electrical and electronic equipment.
Other components can be disposed of
in
domestic
refuse. Thank
you for your co-operation'
·
Never throw
the
Li-Po battery
into
fire or store
in hot
areas.
·
Only
use the
supplied Revell
Li-Po
charger to
charge this Li-Po battery. Use
of a different charger c<Jn lead to permanent damage of
the battery
and
neighbouring parts and cause physical
damage!
·
Never
use
a charger designed
for NiCd/NiMH
batteries!
·Always
charge
the
battery on a
fireproof
surface and in a
fire-resistant
environment.
·
Never leave the
battery
unattended
during the
charging and
discharging
processes.
·
The
battery
must always be
fully
charged,
but not
charged
for longer than
180
minutes.
·
On disposal,
the batteries must be
discharged or
the
battery capacity
must
be exhausted. Cover open
poles
with
~n
adhesive strip
to
avoid
short
circuits'
· Keep
the battery out of the reach of children.
Safety
guidelines:
·
Never make changes to
the
construction of the
product.
as
it could
be
damaged
or
become
a
hazard.
· In
order
to cut risks, never
operate
the helicopter
when sitting
on the floor
or on a chair. Operate
the
helicopter
from
a position from which
you can
move
quickly
if
required.
·
The
aircraft and
the remote control
must always be
fully
switched
off after
use
and
the plug
on
the
cable of the
helicopter battery
disconnected.
Power
supply: =
Capacity:
DC
7,4V
1
1300
mAh
Batteries:
1
x 7,4 V
rechargeable
Li-Po
ba
ttery
(integrated)
Battery requirements for
the remote control
unit:
Power
supply:=
DC
12 V
Batteries: 8 x 1,S
v
"AA'
(Included)
(j)
+
~
+
r-Y+
<j)
+
+
I +
I
~
I
+
I
Never touch rotating propellers!
Do
not fly the
toy
above
anyone's
head'
Adult supervision
is required!
Revell GmbH
&
Co.
KG
hereby declares
that this
product complies with the
basic
(
E
requirements and other
relevant
provisions
of Directive
1999/S/EC. The
declaration of
conformity
is
available at www.revell-control.de.
