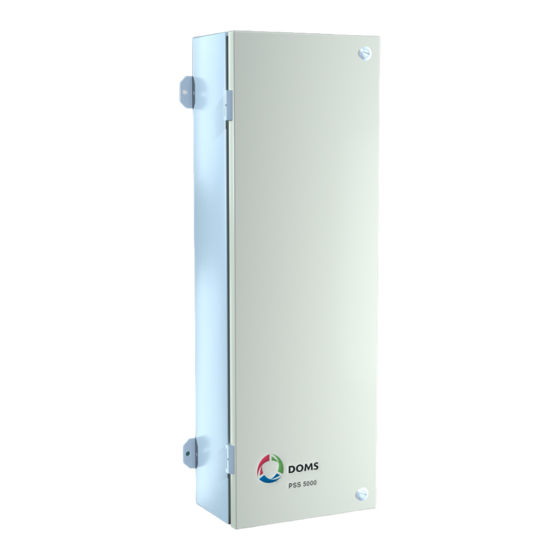

PSS 5000
Hardware Configuration Guide
Selecting the CPU Board and Interface Modules
Date
Document number
Doms ApS
May 18, 2017
PSS5000/CONF/804473/40
Formervangen 28
DK-2600 Glostrup
Tel.
+45 4329 9490
info@doms.dk
www.doms.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSS 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Doms PSS 5000

Summary of Contents for Doms PSS 5000

  • Page 1 PSS 5000 Hardware Configuration Guide Selecting the CPU Board and Interface Modules Date May 18, 2017 Document number PSS5000/CONF/804473/40 Doms ApS Formervangen 28 Tel. +45 4329 9490 info@doms.dk DK-2600 Glostrup www.doms.com...

  • Page 2: About This Documentation

    This documentation enables you to select the correct hardware to configure a Purpose PSS 5000 for a specific site. It describes the prerequisites required before you start and leads you through the process of selecting the correct types and num- ber of modules required for the specific system.

  • Page 3: Table Of Contents

    PSS 5000 CPU Boards ........

  • Page 4: How To Select The Correct Hardware

    Note: ence tables, contact support@doms.dk to help provide a solution. Make a list of all the devices on the forecourt that you want the PSS 5000 to control. To help you create this list, there is a form at the end of this documentation.

  • Page 5: A Worked Example Of How To Select Hims

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules the accessories you require (cables, etc). For example, if your HIMs fill more than 14 single-width modules, you need an extension rail to mount all the HIMs.
  • Page 6 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules In this procedure we will use the ‘Worked example forecourt scenario’ on Worked example page 5 to provide the necessary input to select the correct HIMs. procedure Make a list of the types and numbers of devices on the forecourt.
  • Page 7 When you have found the correct protocol, select the interface type used by the device. Next to this information is the name of the correct HIM. Use the HIM Details table to find and add the connection details, Doms Stock number and module width for the individual HIMs to your list.
  • Page 8 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Use the values to determine how many HIMs you HIM Connections require for each protocol. In the example, the Gilbarco pumps use DSB492. Each DSB492 can have 8 pumps connected to it.
  • Page 9 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules You are now ready to connect the selected HIMs to the CPU Board. The figure below shows the devices connected to a CPB539 board through the HIMs and the associated serial interface cables.

  • Page 10: Device Manufacturers And Device Protocols Used

    Selecting the CPU Board and Interface Modules Device Manufacturers and Device Protocols Used The connectivity of the PSS 5000 is achieved by its ability to interface with List of types of devices different device protocols. The complete list of protocols is divided into the...
  • Page 11 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Manufacturers Protocols ‘EIN’ on page 18 Korea EnE ‘EnE’ on page 18 Galileo ‘GC21 XP & GC22’ on page 19 Gilbarco ‘Gilbarco 2-wire’ on page 19 ‘IFSF’ on page 19 ‘Novotec’...
  • Page 12 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Manufacturers Protocols Scheidt & Bachmann ‘Scheidt & Bachmann T02’ on page 20 ‘Scheidt & Bachmann T10/8’ on page 20 ‘IFSF’ on page 19 Schlumberger ‘Schlumberger IVPE/M3000’ on page 20 ‘Schwelm ZSR83’...

  • Page 13: Tank Gauge System (Tgs) Manufacturers And Protocols

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Tank Gauge System (TGS) Manufacturers and Protocols A list of the Tank Gauge System (TGS) manufacturers and supported proto- List of TGS cols are shown in the table below:...

  • Page 14: Terminal Manufacturers And Protocols

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Terminal Manufacturers and Protocols A list of the terminal manufacturers and supported protocols are shown in the List of terminal table below: manufacturers and protocols The HIM used with specific terminals depends on both the electrical in- Note: terface(s) and protocol(s) supported by the individual terminal.

  • Page 15: Washing Machine Manufacturers And Protocols

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Washing Machine Manufacturers and Protocols A list of the washing machine manufacturers and supported protocols are List of washing machine shown in the table below: manufacturers and...

  • Page 16: Price Sign Manufacturers And Protocols

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Price Sign Manufacturers and Protocols A list of price sign manufacturers and supported protocols are shown in the ta- List of price sign ble below: manufacturers and...

  • Page 17: Device Protocols And Associated Hims

    Selecting the CPU Board and Interface Modules Device Protocols and Associated HIMs The PSS 5000 can connect to many different devices using a multitude of dif- List of types of devices ferent device protocols. The complete list of protocols are divided into the fol-...

  • Page 18: Pump Protocols And Hims

    Selecting the CPU Board and Interface Modules Pump Protocols and HIMs A complete list of the pump protocols currently supported by the PSS 5000 List of pump protocols and the HIMs associated with the protocols and interface types are shown in...
  • Page 19 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Protocols Interface Type Stock No. Devices/Port GC21 XP & GC22 Current Loop, 20mA DSB356 Replaced DSB517 143186 Gilbarco 2-wire Current Loop, 45mA DSB338 Replaced 129251 DSB378 DSB492...
  • Page 20 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Protocols Interface Type Stock No. Devices/Port Nuovo Pignone Current Loop DMB426 130745 4-wire 24V/50mA RS485 DSB453 133768 DSB501 142012 Petrotec 4-wire, Diff. Interface with DMB512 133745 auto-watch...
  • Page 21 136841 Note: : This module may only be used in existing configurations where the devices are connected in a loop, and it is not possible to reconfigure the cables. Contact support@doms.dk before you select this module. PSS5000/CONF/804473/40 21 of 54...

  • Page 22: Tank Gauge System (Tgs) Protocols And Hims

    Tank Gauge System (TGS) Protocols and HIMs A complete list of the Tank Gauge System (TGS) protocols and the HIMs as- List of TGS protocols and sociated with the protocols currently supported by the PSS 5000 are shown in associated HIMs the table below:...
  • Page 23 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Protocols Interface Type Stock No. Devices /Port * This is the recommended HIM, which supports the majority of site configurations. PSS5000/CONF/804473/40 23 of 54...

  • Page 24: Terminal Protocols And Hims

    Terminal Protocols and HIMs A complete list of the Outdoor Payment Terminal (OPT) protocols and the List of terminal protocols HIMs associated with the protocols currently supported by the PSS 5000 are and associated HIMs shown in the table below:...

  • Page 25: Washing Machine Protocols And Hims

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Protocols Interface Type Stock No. Devices/Port Prowalco Remote Tagging Current Loop, 45mA DSB492 140042 ZA-069 (IRIU) DSB511 142464 Current Loop, 40mA DSB503 142061 Tokheim DAC MPA V5...

  • Page 26: Price Pole Protocols And Hims

    Price Pole Protocols and HIMs A complete list of the price display protocols and the HIMs associated with the List of price display protocols currently supported by the PSS 5000 are shown in the table below: protocols and associated HIMs...
  • Page 27 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Protocols Interface Type Stock No. Devices/Port Totem RS485 DSB337 Replaced DSB501 142012 RS485 DSB501 142012 Wayne Marketer RS232 DSB347 123240 PSS5000/CONF/804473/40 27 of 54...

  • Page 28: Interface Types And Hims

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Interface Types and HIMs The table below provides a complete list of the currently supported interface List of Interfaces with types and their associated HIMs. This list can be used to determine whether...
  • Page 29 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Modules Interface Type Addressable Non-addressable ‡ Only one LON (TP/FT-10) interface (i.e. 1xKit422 or 1xDSB522) can be installed on each system. When upgrading from CPB50x to CPB539, if a LON KIT422 is in use, it is necessary to include a DSB522 with the CPB539 to provide the LON functionality.

  • Page 30: Him Details And Interface Types

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules HIM Details and Interface Types A complete list of HIMs and the interface types associated with each HIM is List of HIMs with shown in the table below:...
  • Page 31 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Drawings Stock No. Interface type /<mod.no.>/indr/ 800212/-- DSB347 123240 RS232 (with carrier detect) 800322/-- 800345/-- 800520/-- 800696/-- 802303/-- 802458/-- 802494/-- 800403/-- DSB348 123789 RS485 (grade select) 800232/--...
  • Page 32 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Drawings Stock No. Interface type /<mod.no.>/indr/ 802976/-- DSB475 136841 Current Loop, 4-wire, 30mA 803177/-- DSB476 137571 Current Loop, 3-wire, 20mA (act.) 803689/-- DSB486 139212 Current Loop, 2-wire, 20mA (pas)
  • Page 33 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Multi-point devices, such as multi-point fuel dispensers, may have their hard- Hardware configurations ware configured in one of several different ways. Depending on how they are and interface connectivity configured they load the connection between the HIM and device differently.

  • Page 34: Discontinued Hims And Possible Replacements

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Example 4 represents a situation similar to Example 3, but the daisy-chain oc- curs inside the dual-sided dispenser. In this situation, the load on the HIM con- nection is 2 devices.

  • Page 35: Pss 5000 Cpu Board And Cabinet Specifications

    PSS 5000 CPU Board and Cabinet Specifications These hardware specifications are provided in the following topics: Overview • ‘4.1 PSS 5000 CPU Boards’ on page 35 • ‘4.2 PSS 5000 Cabinets’ on page 37 • ‘4.3 System Versions’ on page 37...

  • Page 36: Kit453 - Cpb50X To Cpb539

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules The product specifications for the CPU boards of the PSS 5000 are presented PSS 5000 CPU Board in the table below: specifications When upgrading from a CPB50x system to a CPB539, if the LON...

  • Page 37: Pss 5000 Cabinets

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules PSS 5000 Cabinets The product specifications for the PSS 5000 cabinet are presented in the table PSS 5000 cabinet types below: and specifications The weights given are for the basic cabinet with a power supply and Note: CPU board (HIMs are not included).

  • Page 38: Pss 5000 Accessories List

    Selecting the CPU Board and Interface Modules PSS 5000 Accessories List The cables required to make the necessary connections associated with the Cables for the PSS PSS 5000 are listed in the table below: Cable Description Stock Number Doms Standard cables...
  • Page 39 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Accessories for the PSS 5000 that have not been listed by type are listed in the Miscellaneous table below: accessories for PSS Accessory Description Stock Number Hardware Sealing Plug (W&M)

  • Page 40: Reference Documents

    Reference Documents The information below provides a list of the pump protocols currently support- List of pump protocol ed by the PSS 5000 and the document number of the Interface Note for each interface notes and installation drawings for protocol. In addition to this, each HIM associated with each protocol is listed...
  • Page 41 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Interface Notes Drawings /<mod. no.>/indr/ Protocols /protocol/itno/ HIMs Gilbarco 2-wire 800090/-- DSB492 803807/-- DSB338 802795/-- DSB453 802800/-- DSB501 804407/-- DSB511 804598/-- Hengshan HS01 804705/-- DMB450 800678/-- Hong Yang...
  • Page 42 (Current Loop) The information below provides a list of the TGS protocols currently support- List of Interface Notes for ed by the PSS 5000 and the document number of the Interface Note for each TGS and installation drawings for modules...
  • Page 43 802222/-- The information below provides a list of the price pole protocols currently sup- List of Interface Notes for ported by the PSS 5000 and the document number of the Interface Note for Price Poles and installation drawings for modules...
  • Page 44 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules each protocol. In addition to this, each HIM associated with each protocol is listed and the document number for the installation drawing is given: Interface Notes Drawings /<mod.
  • Page 45 Selecting the CPU Board and Interface Modules The information below provides a list of the payment terminal protocols cur- List of Interface Notes for rently supported by the PSS 5000 and the document number of the Interface Terminals and installation drawings for Note for each protocol.
  • Page 46 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Interface Notes Drawings /<mod. no.>/indr/ Protocols /protocol/itno/ HIMs Prowalco Remote Tagging 800320/-- DSB492 803807/-- DSB503 804432/-- DSB511 804598/-- Tokheim DAC MPA V5 803392/-- Tokheim Pump Tag 804348/--...

  • Page 47: Revision Information

    Revision history moved from the front to the back of the document June 24, 2009 The following changes have been made: • Updated the PSS 5000 system versions table • Corrected stock numbers for DSB511 and DMB512 PSS5000/CONF/804473/40 47 of 54...
  • Page 48 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Rev. Date Description of Changes July 29, 2009 The following changes have been made: • Added Nara/Topaz to pump protocols • Added Nara/Topaz to list of Interface Notes for pump protocols Sept.
  • Page 49 • Minor text corrections March 14, 2011 The following changes have been made: • All reference to Doms CWI has been removed • Added POSTEC TVD tag reader protocol to terminal protocols list May 9, 2011 The following changes have been made: •...
  • Page 50 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Rev. Date Description of Changes May 15, 2012 The following changes have been made: • Added Mepsan, Petposan, Maser and MMPetro to pump manufacturers list • Added Scientific & Production Enterprise SENSOR LLC to TGS manufacturers list •...
  • Page 51 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Rev. Date Description of Changes Jan. 12, 2015 The following changes have been made: • Added ELREM Tank2000 to pump protocols list • Added Hong Yang to pump protocols list •...
  • Page 52 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Rev. Date Description of Changes Oct. 11, 2016 The following changes have been made. • Added RGB Technology to the list of Price Pole man- ufacturers •...

  • Page 53: Index

    PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules Index Numerics 2-wire 25mA 19 4-wire 19 2-wire 4-wire 50mA 20 DMB514 18 Current Loop 18 2-wire 25mA RS232 (modem interface) 30 DMB489 19 RS485 26 2-wire 30mA S&B proprietary 30...
  • Page 54 PSS 5000 – Hardware Configuration Guide Selecting the CPU Board and Interface Modules protocols 22 Price display protocols 26 Protocols Vapor recovery price displays 26 protocols 25 pumps 18 terminals 24 TGS 22 vapor recovery 25 Washing machine washing machine 25...
  • Page 55 Hardware Interface Module Selection Form No. of Device Manufacturer Protocol / Interface HIMs Req. Name Cons. Width Stock No. Accessories...
