Doms PSS 5000 Compact Installation Manual

Forecourt controller system for 230vac
Hide thumbs Also See for PSS 5000 Compact:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Installation Guide
Doms Forecourt Controller System for 230VAC
PSS 5000 Compact
Date
Document number
Doms A/S
th
November 6
2008
PSS5000/INGU/804628/00
Formervangen 28
DK-2600 Glostrup
Tel. +45 4329 9400
Fax +45 4343 1012
info@doms.dk
www.doms.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSS 5000 Compact and is the answer not in the manual?

Questions and answers

Related Manuals for Doms PSS 5000 Compact

Summary of Contents for Doms PSS 5000 Compact

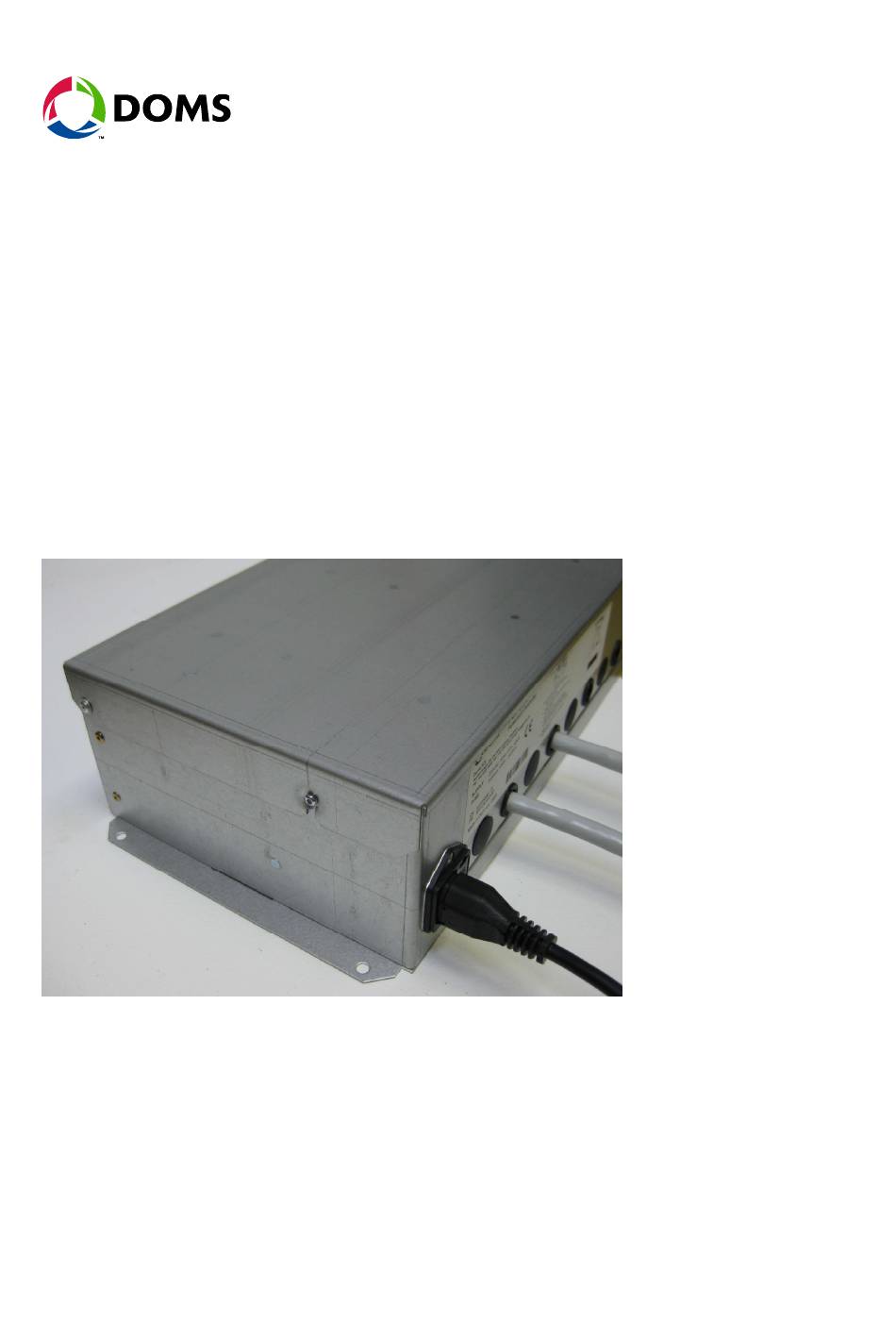

  • Page 1 Installation Guide Doms Forecourt Controller System for 230VAC PSS 5000 Compact Date November 6 2008 Document number PSS5000/INGU/804628/00 Doms A/S Formervangen 28 Tel. +45 4329 9400 info@doms.dk DK-2600 Glostrup Fax +45 4343 1012 www.doms.com...
  • Page 2 80%. It is very important that the cable shield is connected properly in both ends. See Fig. 4 for how to connect the cable shield. Only Doms HIM (Hardware Interface Modules) may be installed in the PSS 5000 cabinet. PSS5000/INGU/804628/00...

  • Page 3: Technical Data

    Installation Guide, PSS 5000 Compact 3 Technical data Dimensions (H x W x D) 337 (363) x 205 x 100mm Weight approx. 4,4kg Supply voltage, nominal 230VAC Max. power consumption Fuse, 5 x 20mm, slow blow T400mA Degree of protection (ingress)

  • Page 4: Installation

    Installation Guide, PSS 5000 Compact 5 Installation 1. Make sure that there is enough space for opening the box and space for the cables on the right hand side of the cabinet. Keep the area right to the mains inlet free so the mains cable can be unplugged.
  • Page 5 Installation Guide, PSS 5000 Compact Figure 2 Open PSS 5000 Compact with one module installed 5. Turn on the power by connecting the mains cable to the inlet socket. The yellow 3V and the 5V LED's should turn on indicating power-on and after approx.
  • Page 6 Installation Guide, PSS 5000 Compact 6.2. Cut off the shield so it has a suitable length (approx. 30mm). 6.3. Pull the remaining shield back and over the insulation of the cable. 6.5. Press the cable through the grommet and through to the other side of the shield bar, then mount the cable clamp over the cable.

  • Page 7: Replacing Fuse

    Installation Guide, PSS 5000 Compact 6 Replacing fuse The fuse is located in the mains inlet socket. In order to change a blown fuse, follow these steps: 1. Turn the power of by removing the mains plug. 2. Use a small flat screwdriver (max 2.5mm) to open the fuse drawer. It is optimal to use two screwdrivers, one for each retaining clip.
