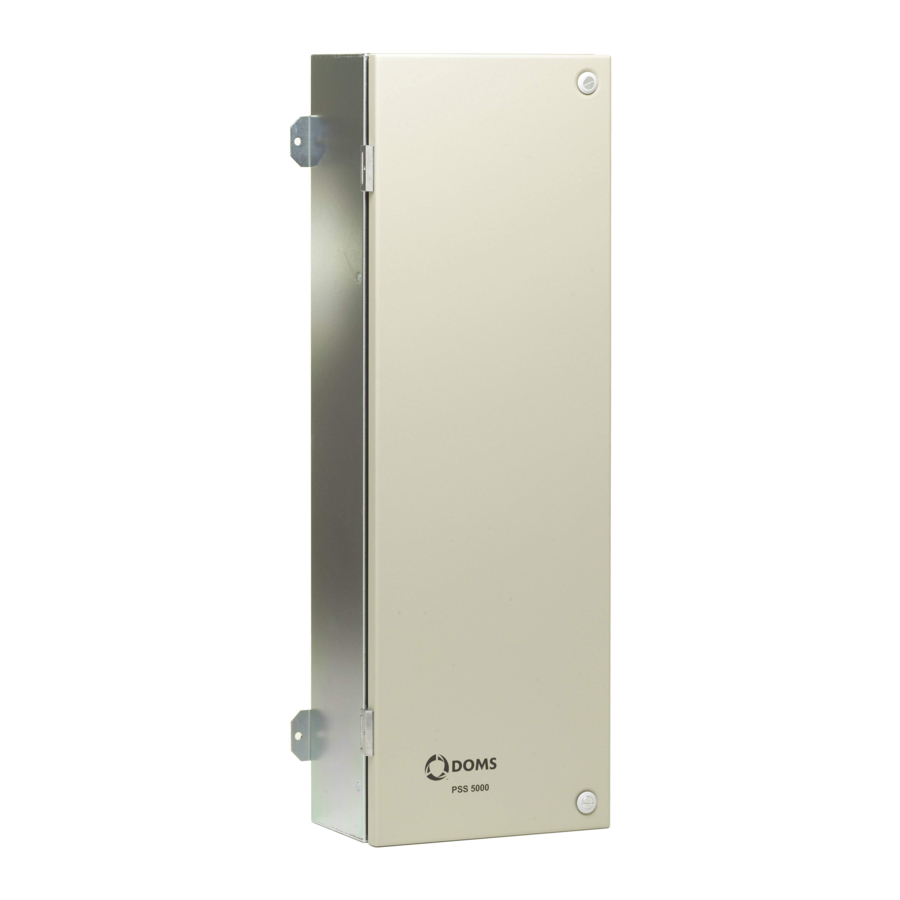

Doms PSS 5000 Product Manual

Doms PSS 5000 Product Manual

Petrol station forecourt controller
Hide thumbs Also See for PSS 5000:

Advertisement

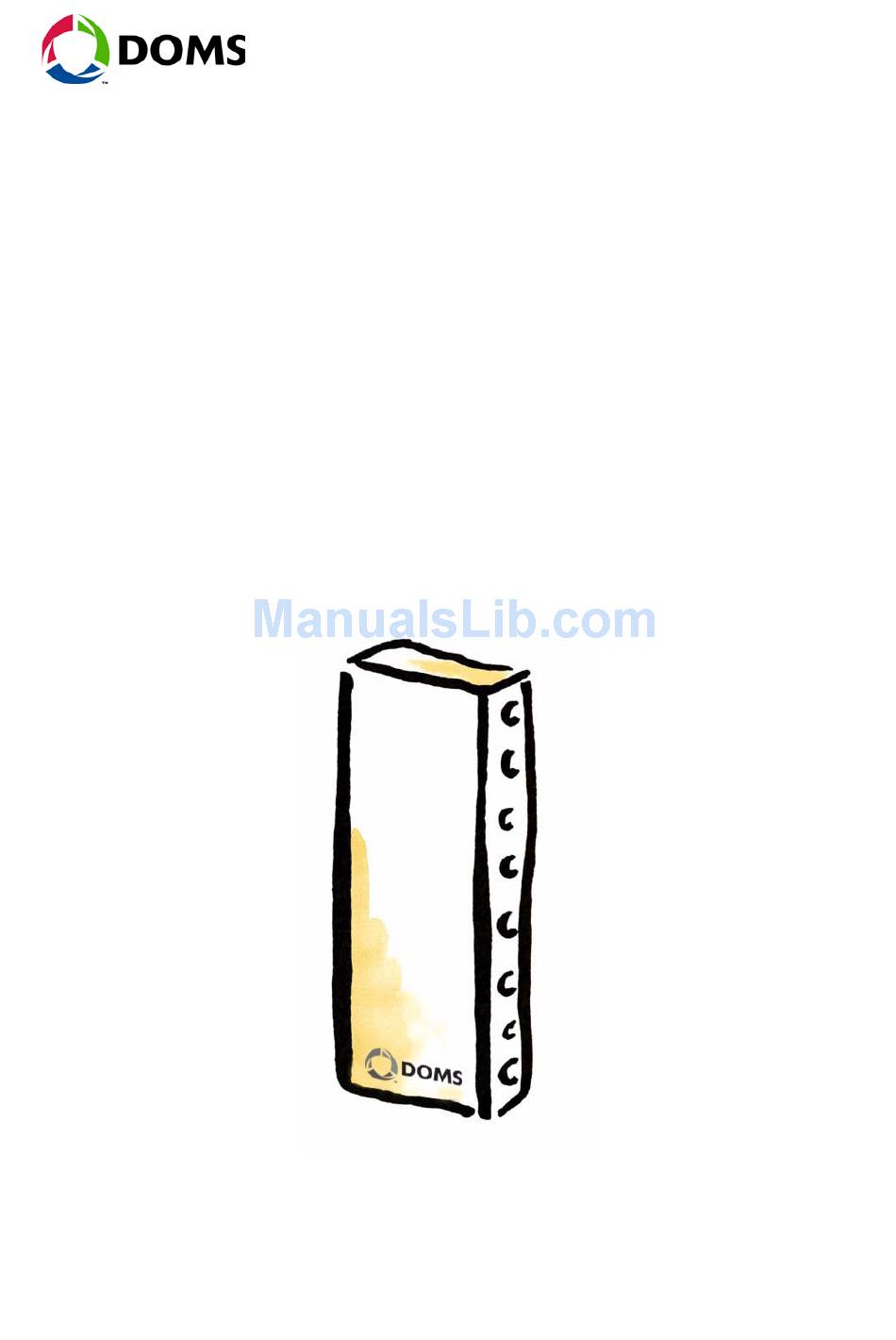

PSS 5000
Product Guide
Petrol Station Forecourt Controller
Date
Document number
Doms ApS
January, 2014
PSS5000/PRPR/802727/22
Formervangen 28
DK-2600 Glostrup
Tel.
+45 4329 9400
Fax.
+45 4343 1012
info@doms.dk
www@doms.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSS 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Doms PSS 5000

  • Page 1 PSS 5000 Product Guide Petrol Station Forecourt Controller Date January, 2014 Document number PSS5000/PRPR/802727/22 Doms ApS Formervangen 28 Tel. +45 4329 9400 info@doms.dk DK-2600 Glostrup Fax. +45 4343 1012 www@doms.com...
  • Page 2: About This Documentation

    PSS 5000 in a petrol station forecourt system. It also lists the hardware elements and all the device protocols supported by the PSS 5000.
  • Page 3: Table Of Contents

    PSS 5000 Applications ........5...
  • Page 4: Introducing The Pss 5000

    5000 can be tailored to almost any new or existing petrol station fore- court/POS system. The modular concept also gives scalability. When changes to a forecourt occur, then the PSS 5000 adapts readily by the addition of new modules. The PSS 5000 also offers unprecedented connectivity, including TCP/IP (via both Ethernet or serial interface) as well as FTP and web server access for re- mote monitoring, remote control and diagnostics of the forecourt devices.
  • Page 5: Pss 5000 Applications

    • ‘2.3 Features of the PSS 5000’ on page 8 Basic Scenarios for the PSS 5000 The PSS 5000 is a versatile tool that enables you to control many types of op- Situations for the PSS 5000 erations taking place on the forecourt. The basic processes are covered by the simple scenarios listed below: •...
  • Page 6 The term stand-alone is used when a POS is not present in the system. Note: In this scenario, the PSS 5000 is used to control the fuel pump and provide an interface to a payment terminal. The PSS 5000 can control payment with bank notes or cards.
  • Page 7: Application Solutions

    Business hosts and service organizations are able to take advantage of the net- work connection to the PSS 5000. They are able to monitor the status of the sites, gathering diagnostics and stock movements. This helps them to perform...
  • Page 8: Features Of The Pss 5000

    PSS 5000 – Product Guide 2 PSS 5000 Applications Features of the PSS 5000 The typical position of the PSS 5000 Forecourt Controller and the functions it Positioning and internal workings of the PSS provides in the petrol station forecourt are illustrated below: 5000 The PSS 5000 provides interfaces to a wide variety of forecourt devices.
  • Page 9 PSS 5000 – Product Guide 2 PSS 5000 Applications The PSS 5000 functions provide a multitude of features. The major ones are PSS 5000 functions listed in the table below: Application Modules Features For Device Controllers Dispenser Controller • Unattended and Attended Service •...
  • Page 10 Pump totalizer period changes • Gauged wetstock changes • Till (Totals) The services present in the PSS 5000 are available through several interfaces. Forecourt controller interfaces These, together with a brief description of what each interface offers, are listed in the table below:...
  • Page 11: Hardware In The Pss 5000

    If the connection requirements to the forecourt devices change, then new modules can be added and unused modules removed. The illustration below shows both the outside of the PSS 5000 cabinet and its Illustration of the PSS 5000 cabinet and contents (front door open).
  • Page 12: Cabinet

    The cabinet is a single box solution. It houses the hardware and software com- Description of the PSS 5000 cabinet ponents of the PSS 5000, and it functions as a connection box for all the fore- court devices. The cabinet is robust, which protects the contents from knocks and jolts, and when closed the cabinet ensures that the PSS 5000 retains its CE approval.
  • Page 13: Hardware Modules

    PSS 5000 – Product Guide 3 Hardware in the PSS 5000 When a PC is not available, then access to the PSS 5000 is possible using the CPU Board Local Service Panel Local Service Panel. This consists of an LCD and 5 navigation buttons. The...
  • Page 14: Hardware Interface Modules (Hims)

    Description of the HIMs tween the many types of forecourt devices, with their proprietary serial inter- faces, and the CPU Board of the PSS 5000. The illustration below is a simple example where 2 pumps and an outdoor payment terminal (OPT) are connect- ed to their respective HIMs.
  • Page 15: Other Modules

    • Implementation of status indicators – enabling users to see at a glance if the devices are available or already in use. • Alarm triggering on equipment outside the control of the PSS 5000. Re- duces time by being able to monitor more from a central location.
  • Page 16: Upgrading From A Pss 2000

    • Electronic distribution of application software due to the use of flash memory. • Improved connectivity through the LON and Ethernet ports To upgrade an existing PSS 2000 to a PSS 5000 you need a new PSS 5000, Requirements for an upgrade where you can reuse your HIMs.
  • Page 17: Service And Maintenance

    Failure (MTBF) calculation for the PSS 5000 is shown below: Parameters Amount Installed systems stats. Estimated number of PSS 5000 systems in operation per Dec. 31, 29 000 2008: Repair stats. Number of parts received for repair in 2008 Number of received parts with no faults...
  • Page 18: Software In The Pss 5000

    For more information, see ‘8 PSS 5000 Embedded Service Tools’ on page FTP Server The FTP server enables you to connect to the PSS 5000, see the internal file Description of the FTP server structure and upload software applications. It also enables you to extract data logs from remote locations.
  • Page 19: Pss 5000 Protocols

    PSS 5000 – Product Guide 5 PSS 5000 Protocols PSS 5000 Protocols The outstanding connectivity of the PSS 5000 is achieved by its ability to use List of types of devices using protocols many different device protocols. The complete list of protocols is divided into the following topics: •...
  • Page 20 PSS 5000 – Product Guide 5 PSS 5000 Protocols Protocols Hengshan HS01 IFSF / LON (see ‘Description of LON Module’ on page Kontrel Domino LPG Koppens EPS-3/5 Larsen & Toubro Z-line Larsen & Toubro MPD/QUAD Logitron Pumalan Mechanical Pump Interface...
  • Page 21: Price Display Protocols

    Topaz 1 Topaz 2 Wayne Autocourt/Ferranti Wayne Dart Wayne Europe/Ljungmans (Current Loop) Price Display Protocols The price display protocols currently supported by the PSS 5000 are shown in List of price display protocols the table below: Protocols CBS Price Pole...
  • Page 22: Terminal Protocols

    Sense PMP Struna-M Veeder-Root Terminal Protocols The Outdoor Payment Terminal (OPT) protocols currently supported by the List of terminal protocols PSS 5000 are shown in the table below: Protocols ACG Mifare Tag Reader A. G. Walker Pump Tag AutoTank ATCL Banksys...
  • Page 23: Washing Machine Protocols

    List of vapor recovery protocols the table below: Protocols Fafnir DVRC Digital I/O Protocols The digital I/O protocol currently supported by the PSS 5000 is shown in the List of digital I/O protocols table below: Protocols Digital I/O This Digital I/O protocol is a proprietary Doms Digital I/O protocol for Note: use with the HIM DSB451.
  • Page 24: Pss 5000 Product Specifications And Approvals

    PSS 5000 – Product Guide 6 PSS 5000 Product Specifications and Approvals PSS 5000 Product Specifications and Approvals The specifications and approvals for the PSS 5000 are detailed in the follow- List of specifications ing topics: • ‘6.1 PSS 5000 Hardware Specifications’ on page 24 •...
  • Page 25 PSS 5000 – Product Guide 6 PSS 5000 Product Specifications and Approvals The product specifications for the PSS 5000 cabinets are presented in the table PSS 5000 Cabinet specifications below: The weights given are for the basic cabinet with a power supply and Note: CPU board (HIMs are not included).
  • Page 26: Approvals And Certificates

    : The boot program only supports PPP on the Service port. Software uploads on boards with no Service port must take place via the Ethernet port. Approvals and Certificates The PSS 5000 system (hardware and software) complies with the following: Approvals/Certificates Description...
  • Page 27: Pss 5000 Development Package

    PSS 5000 – Product Guide 7 PSS 5000 Development Package PSS 5000 Development Package Doms has produced a PSS 5000 Development Package. It is designed for sys- Introduction to the Development Package tem developers who are creating interfaces to the PSS system, and indirectly to the pumps, tank gauge systems, price poles and outdoor payment terminals found on petrol station forecourts.
  • Page 28: Pss 5000 Embedded Service Tools

    Service Menu agnostics when errors occur, are present in the embedded web server in the PSS 5000. Access is via a browser, which provides a graphical interface. The table below shows what is available from the menu options in the Service...
  • Page 29: Index

    Service Menu GUI 28 Software FTP server 18 web server 18 FTP server 18 Specifications for PSS 5000 cabinet 25 for PSS 5000 CPU Board 25 Hardware concept of PSS 5000 11 HIM in cabinet Terminals illustration 11 protocols 22...
  • Page 30 PSS 5000 – Product Guide Index Washing machine protocols 23 Web server 18 Page 30 of 30 PSS5000/PRPR/802727/22...
