9. Use the Level or Tone menus to adjust the audio output levels to match
the required input level of any connected devices (camera, mixer, re-
corder, etc.). The adjustment range is from -50 dBu to +5 dBu in 1 dBu
steps for the balanced output and -55 dBu to +0 dBu in 1 dBu steps for
the unbalanced output.
Note: The test tone output is especially useful for an exact level match.
With the test tone running, adjust for the maximum desired peak level
using the metering on the connected device.
10. If desired, access the LockSet menu to lock the R400A front panel
controls to prevent inadvertently modifying the receiver settings during
operation.
www.lectrosonics.com

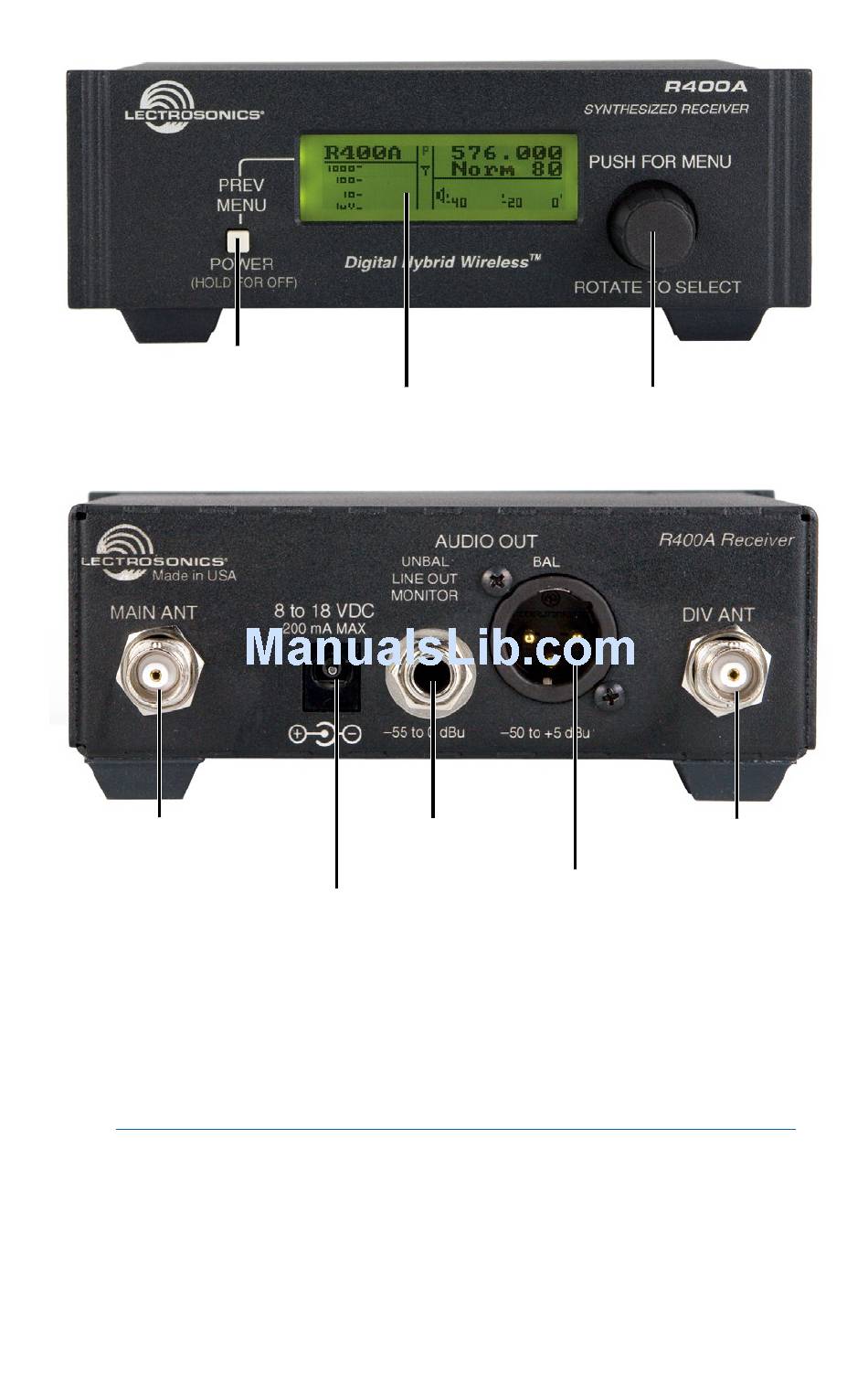

LCD Screen
