Anritsu MS2830A Operation Manual

RF Signal Capture & Playback
Simple Operation Guide
Signal Analyzer and Built-in Vector Signal Generator Option
MS2690A Series
MS2830A (3.6/6.0/13.5 GHz Model)
MS2840A (3.6/6.0 GHz Model)
This manual explains examples of the Capture & Playback Function using the Signal Analyzer MS2690A
series (MS269xA hereafter) and the MS2830A and MS2840A with installed Vector Signal Generator
option.
When using the Capture & Playback function, the RF signal captured using the signal analyzer
to generate an IQ data file (capture hereafter) for generating the waveform pattern using the built-in
vector signal generator
For example, it is better to use the Capture & Playback function to generate RF signals from playback
from the captured data in the following cases:
 Although we want to evaluate actual wireless equipment signals, it is difficult to create and
playback waveforms using general-purpose signal generators and software.
 When using wireless equipment (golden unit hereafter) as a signal source, fine adjustment of
the output level is difficult and the output is unstable.
 If many golden units (e.g. base stations) are required, the cost is much higher than using a
measuring instrument.
Since this function automatically calculates the average power (rms) when generating the waveform
pattern, the output level set at the signal generator after generation equals the average power.
*1: Signal Analyzer
The MS269xA and MS2840A have a built-in signal analyzer with an Analysis Bandwidth of 31.25 MHz as standard.
The MS2830A can be installed as an option.
*2: Built-in Vector Signal Generator
Option for MS269xA, MS2840A, and MS2830A
to output the RF signal (playback hereafter).
*2

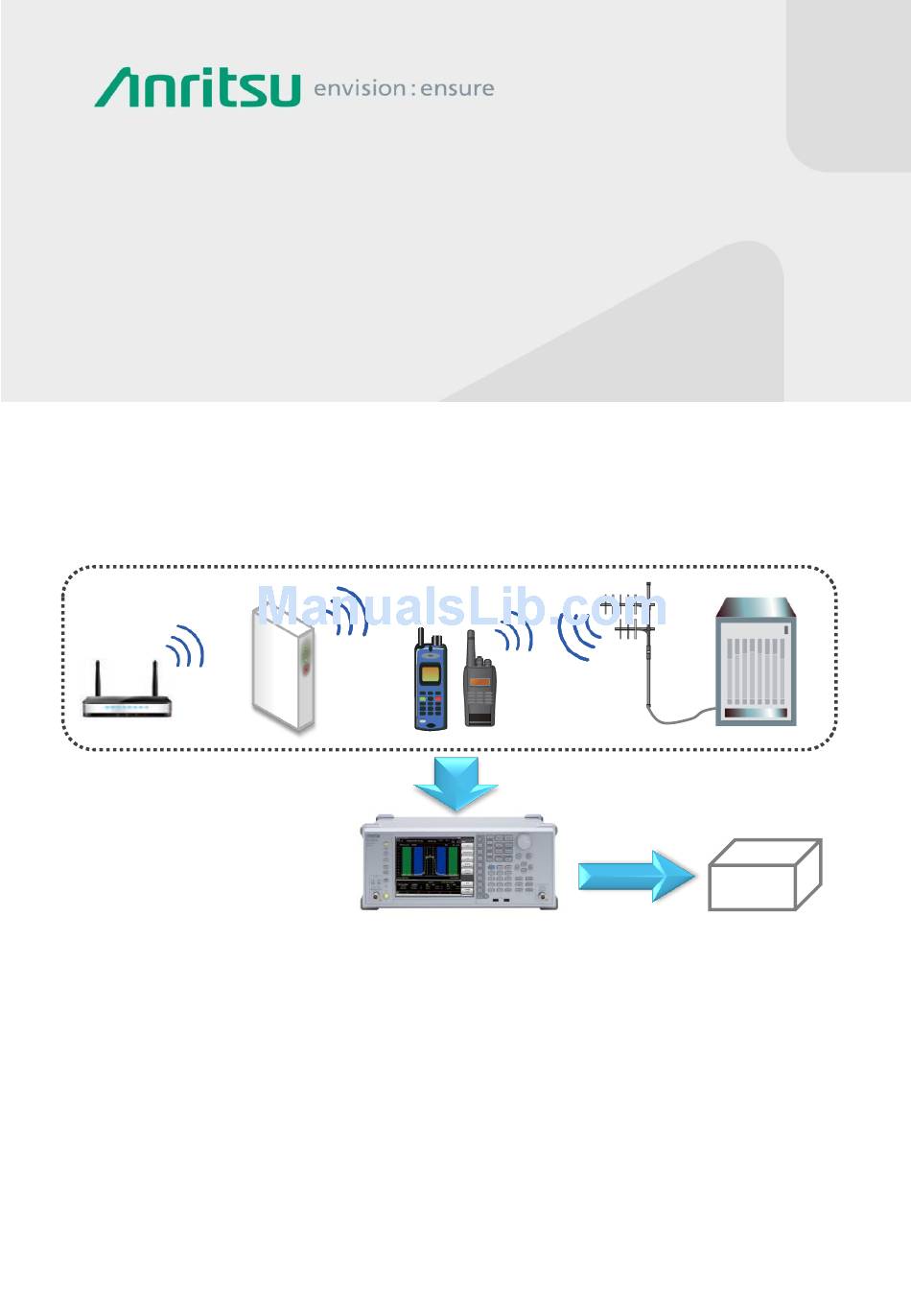

Capture RF Signal
Output from Signal
Generator (Playback)
Receiver
User Guide
is used
*1
