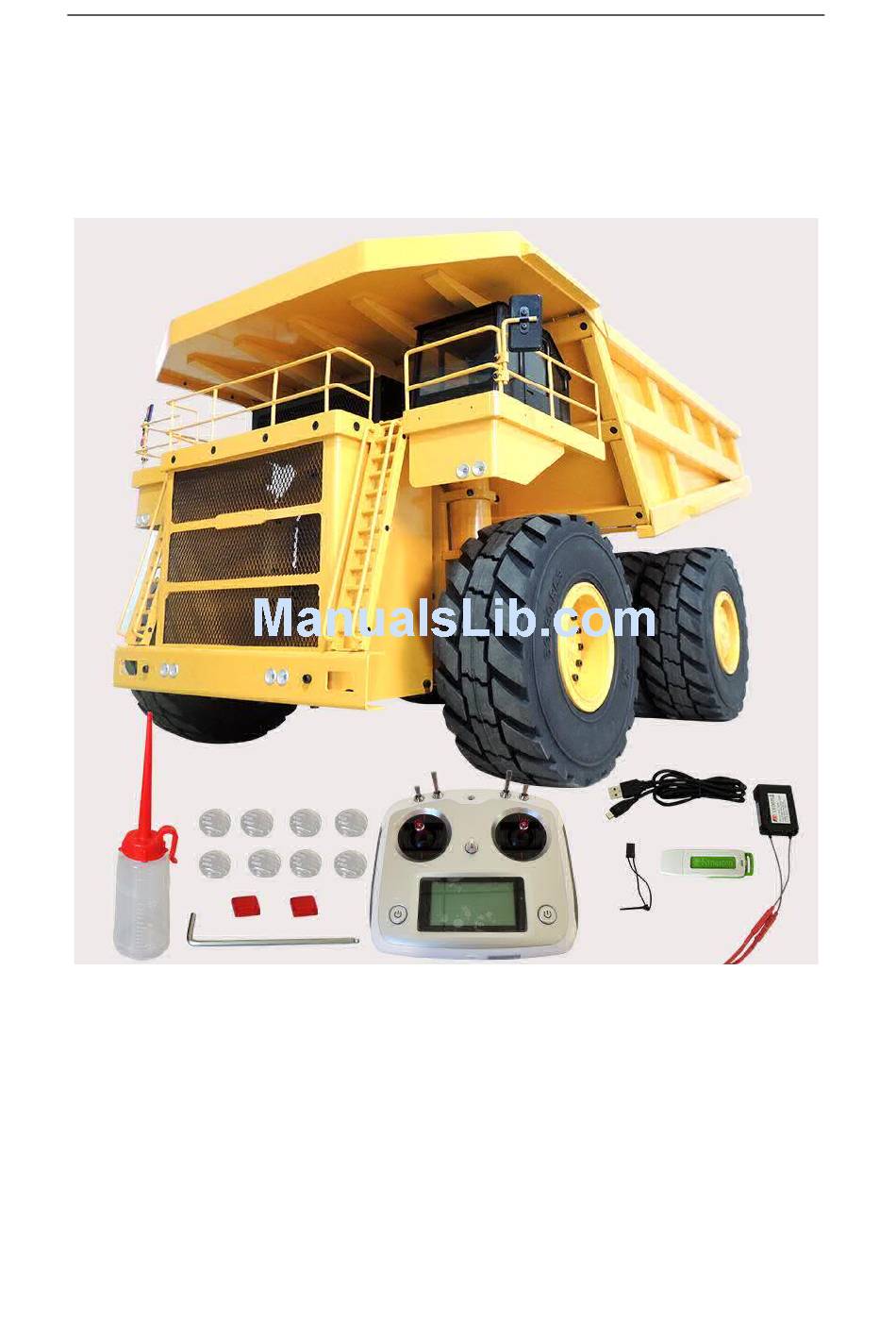

1/14 Scale Earth Hauler 797F Hydraulic Mining
Truck
(VV-JD00020)
1. Truck size: Length 1015MM, Width 685MM and Height 560MM.
2. Truck weight: 100KG, Remote control 0.5KG
3. Main materials include Alloy aluminum， metal board， yellow copper， chrome steel and PC
board
4. Minimum ground clearance: 95MM
Advertisement
Related Manuals for RC4WD VV-JD00020
Summary of Contents for RC4WD VV-JD00020
- Page 1 1/14 Scale Earth Hauler 797F Hydraulic Mining Truck (VV-JD00020) 1. Truck size: Length 1015MM, Width 685MM and Height 560MM. 2. Truck weight: 100KG, Remote control 0.5KG 3. Main materials include Alloy aluminum， metal board， yellow copper， chrome steel and PC board 4.
- Page 2 5. Capacity: 100KG for scattered materials (such as sands and crushed stones) and the maximum capacity is 200KG. 6. Power voltage：12V，XT90 connector. We commend an a lipo battery with over 25C 3S lipo whose size range is 240*130*45MM (length/width/height). According to test results, a 22000MHA lipo battery can continually work for up to 65 minutes with full load and a 38A lead-acid battery can continually work for up to 35 minutes with full load.
- Page 3 9. Hydraulic oil: #32 Hydraulic Oil, 280ML. Mobile 32 Hydraulic Oil 14oz (Z-X0042). 10. Light system: Needs to purchased separately. 1/14 Scale Earth Hauler 797F Hydraulic Mining Truck Light System (VVV-S0200).
- Page 5 Form 1: Parameter List of QuicRun-WP16BL30 (Parameters in the form below indicate factory defaults) Programmable Items Option Option Option3 Option4 Option Option Option Option8 Option9 1.Running Mode Fwd/Re 2.Drag Brk Force 100% 3.Low Voltage Cutoff 3.0VlCe 4.Start Mode Level5 (Punch) 5.Max.
- Page 6 No-load rotating current: <500mA Maximum torque: 180kg.cm(24V) (experimental result, instead of theoretical value) 1764N.cm(24V) (experimental result, instead of theoretical value) 90kg.cm(12V) (experimental result, instead of theoretical value) 882N.cm(12V) (experimental result, instead of theoretical value) Angel speed: 0.5s/60°(it takes 0.5s to turn 60°), when using 24V. 1.0s/60°(it takes 1.0s to turn 60°), when using 12V.
- Page 8 How to pour out oil:...
- Page 12 How to fill oil...
-
Page 15: How To Install Battery
How to install battery... - Page 16 Steps before operation: Place 4 cells of AA battery into the remote control and then turn on the remote control itself. Finally, power the truck on. Steps after operation: Power off the truck first. Then, turn off the remote control and remove 4 cells of AA batteries.
