2
B
Flight Controller (FC)
Electronic Speed Controller (ESC)
3mm Standoff
A
NOTE:
You might need to snip off the top of the standoff once
you've put the nut on. Depending on the fit of the limbs.

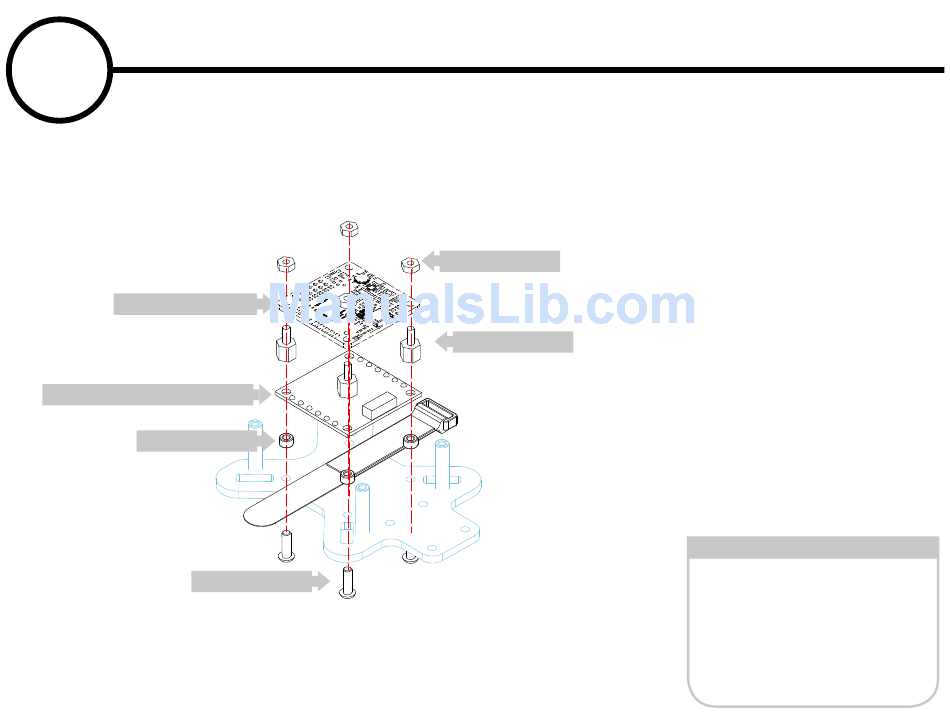

ESC and FC assembly
M3 x 10 Screw
8
Nylon Nut
6mm Standoff
7
Depending on the Electronic
speed control (ESC) that you
use, you might have to mount
the individual ESC to the
limbs of the VLX. However,
for this build we are using
a 4-in-1 ESC which we will
mount to the bottom plate
using the 6mm standoffs and
M3 x 10 screws. Mount the
Flight controller (FC) above
the ESC using the 6mm stand-
offs and secure with the M3
nylon nuts.
Be careful to note the direc-
tion of the ESC and the FC!
Be sure they are all aligned
correctly!
What you need for this step
M3 x 10 Screw
6 MM Standoff
ESC (4 in 1)
FC
Nylon Nuts
x 4
x 8
x 1
x 1
6
x 4
