Bottom Plate Assembly - RC Groups VLX230C Assembly Manual

B
1
20mm Standoff
A
M3 x 10 Screw

Bottom Plate Assembly

8

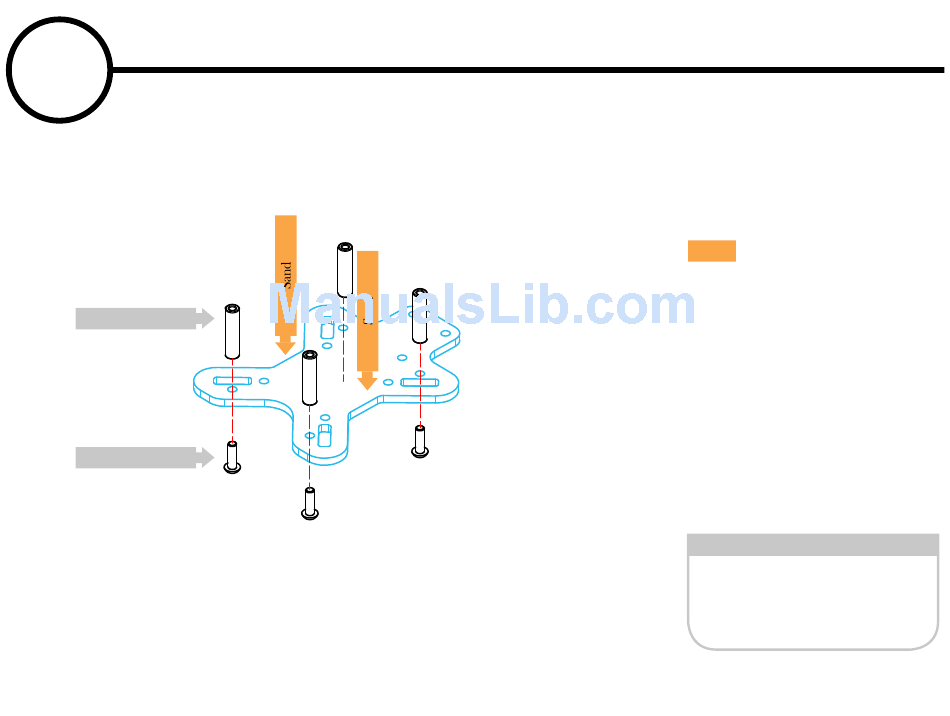

Using M3 x 10 screws, secure
the 20mm standoff to the
main plate.
TIP
To save your battery straps,
we suggesting lightly sanding
the top edges where the bat-
tery straps will go. This will
help prevent the sharp edge
from cutting into the strap.
What you need for this step
7
M3 x 10 Screw
20 MM Standoff
6
x 4
x 4
