M3 x 10 Screw
NOTE:
If you find that sanding is necessary, it's best if you can sand the
limb tabs. NO NOT sand the slots in the top and bottom frames.
8

Main Body Assembly

7
Sand
Sand

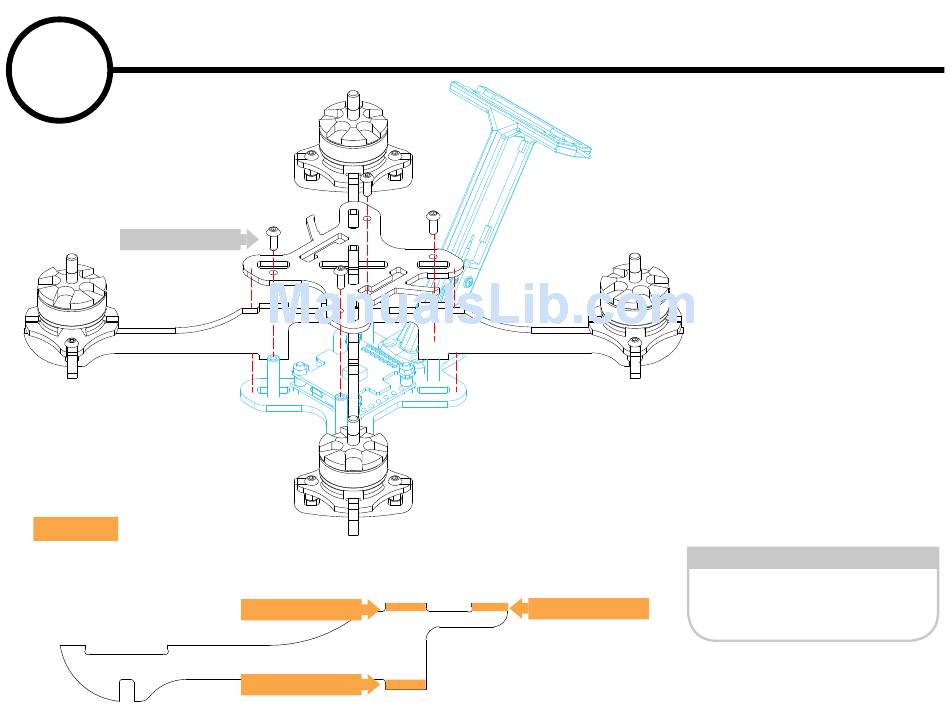

Now you can finish assembly
of the main body with M3 x
10 screws while aligning your
limbs into the slots located
on both the top and bottom
plates as shown. It can help to
careful test-fit the limbs first to
ensure proper fit. Some light
sanding may be necessary but
it should be a tight fit so be
patient with this step.
Be careful to note the direc-
tion of the ESC and the FC!
Be sure they are all aligned
correctly!
What you need for this step
6 M3 x 10 Screw
Sand
5 x 4
