Motor Assembly - RC Groups VLX230C Assembly Manual

5
Brushless Motor
M3 x 10 Screw
Limb
Retention Plate

Motor Assembly

Motor Mount
M3 x 6 Screws
M3 Locknut

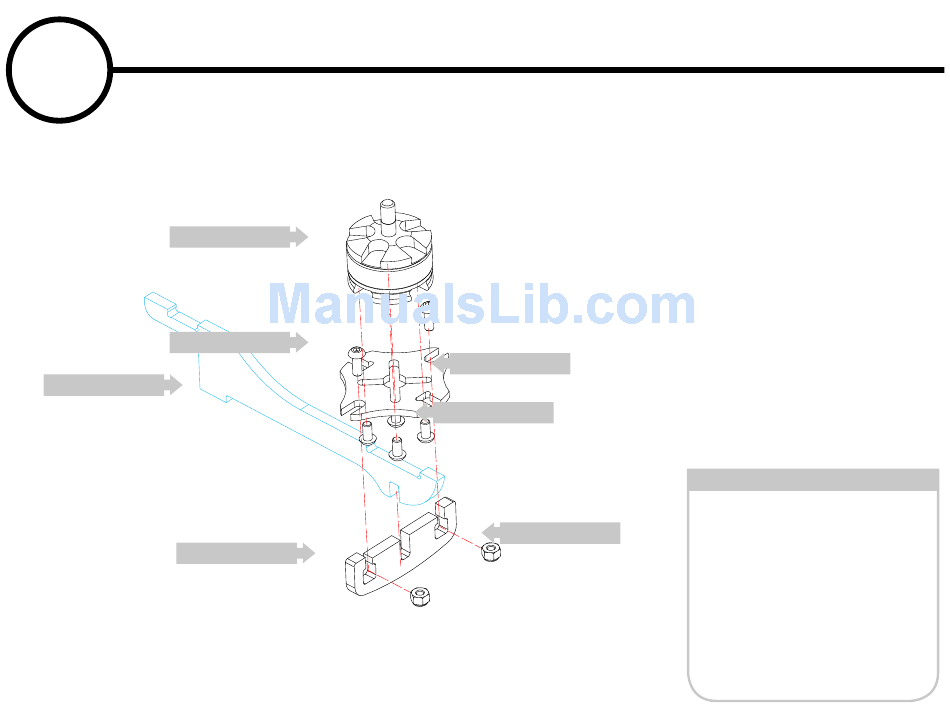

Using supplied screws from
your vendor attach your
brushless motor to a motor
mount plate.
Slide the retention plate below
the motor plate and secure to
the limb with 2 M3x10 screws
and lock nuts.
What you need for this step
M3 x 10 Screw
M3 Locknut
M3 x 6 *or supplied
hardware
Retention Plate
Motor Mount Plate
Limb
Brushless motor
x 8
x 8
x 8
x 8
x 4
x 4
x 4
