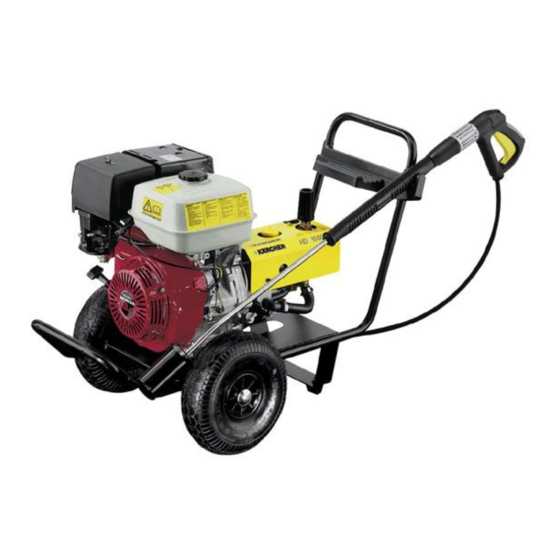

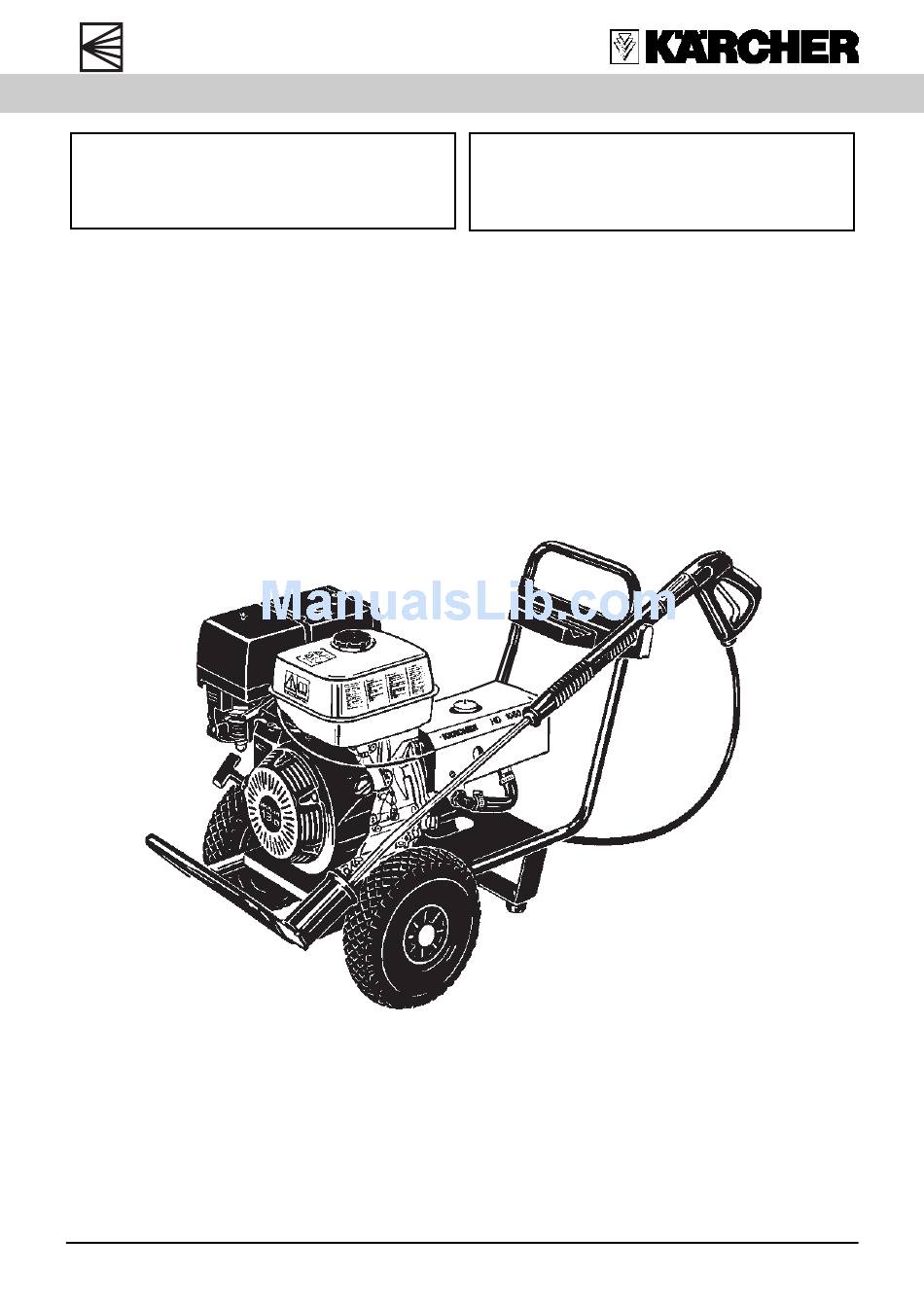

  • Page 1 International Service Information HD 1050 B June 24th, 1999 New Unit Information HD 1050 B 1.810-987 5.905-950 International Service Information Page 1/10...
  • Page 2 International Service Information HD 1050 B June 24th, 1999 New Unit Information Equipment High-pressure hose connection High-pressure connection Pressure and flow control Water connection Servopress handgun Oil reservoir Spray lance OIl dip stick, at both sides of engine Three-way nozzle...
  • Page 3 International Service Information HD 1050 B June 24th, 1999 New Unit Information Pressure gauge Oil drain plug Non-return valve Piston Pressure valve Oil seal Oil reservoir Low-pressure seal Shaft seal High-pressure seal Swash plate bearing Suction valve Swash plate Suction chamber...
  • Page 4 International Service Information HD 1050 B June 24th, 1999 New Unit Information High-pressure outlet Spring Cleaning agent injector Suction chamber Cleaning agent connection Connection bore from overflow valve to suction chamber Control pressure injector Water connection Pressure gauge Spring Screw plug for non-return valve...
  • Page 5 International Service Information HD 1050 B June 24th, 1999 New Unit Information International Service Information Page 5/10...
  • Page 6 International Service Information HD 1050 B June 24th, 1999 New Unit Information Throttle lever Inner bowden cable clamping screw Outer bowden cable clamp Throttle lever stop screw Bowden cable Adjusting screw with locking nut r.p.m. regulator International Service Information Page 6/10...
  • Page 7 International Service Information HD 1050 B June 24th, 1999 New Unit Information International Service Information Page 7/10...
  • Page 8 International Service Information HD 1050 B June 24th, 1999 New Unit Information International Service Information Page 8/10...
  • Page 9 International Service Information HD 1050 B June 24th, 1999 New Unit Information Problem Remedy Engine does not start. Check gaseoline system / clean if required. Check spark plug / replace if required. Check oil level and oil level sensor. Check ignition system / adjust if required.
  • Page 10 International Service Information HD 1050 B June 24th, 1999 New Unit Information Technical data unit technical circuit operating maintenance spare data diagram handbook booklet parts list HD 1050 B 1.810-987 5.956-933 5.958-206 Engine: Honda GX 390 Special tools Shut-off valve 4.580-034...
