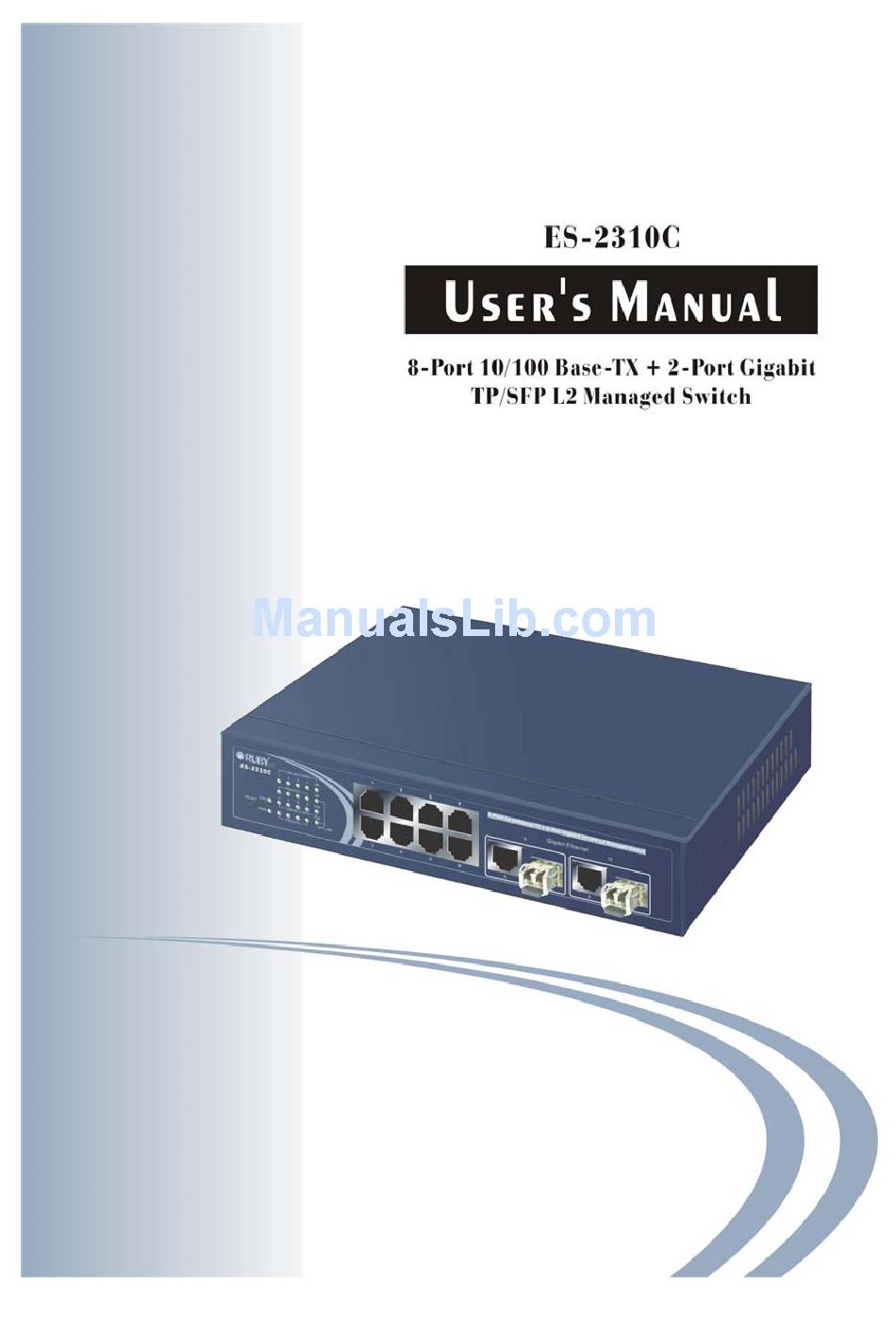

Page 3 ES-2310C User's Manual 8-Port 10/100Base-TX + 2-Port Gigabit TP/SFP L2 Managed Switch Release 2.65 © 2009, RubyTech Corporation. All rights reserved. All brand and product names are trademarks or registered trademarks of their respective companies.
Page 4 The information in this document is subject to change without notice. Unless the explicit written permission of RubyTech Corporation, this document in whole or in part shall not be replicated or modified or amended or transmitted, in any from, or by any means manual, electric, electronic, electromagnetic, mechanical, optical or otherwise for any purpose.
Page 5 DISCLAIMER. EXCEPT AS PROVIDED ABOVE, THE SOFTWARE IS PROVIDED “AS IS ” AND RUBYTECH AND ITS LICENSORS MAKE NO WARRANTIES, EXPRESS OR IMPLIED, WITH REPSECT TO THE SOFTWARE AND DOCUMENTAITON. RUBYTECH AND ITS LICENSORS DISCLAIM ALL OTHER WARRANTIES, INCLUSIVE OF WITHOUT LIMITATION, IMPLIED WARRANTIES OR MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
Page 6: Table Of Contents
2-1-3-3. Switch Cascading in Topology -------------------------------------------------------------------------- 14 2-1-4. Configuring the Management Agent of ES-2310C ---------------------------------------------17 2-1-4-1. Configuring the Management Agent of ES-2310C through the Serial RS-232 Port ------------- 18 2-1-4-2. Configuring the Management Agent of ES-2310C through the Ethernet Port -------------------- 20 2-1-5.
Page 7 3-9. STP C -------------------------------------------------------------------------------------87 ONFIGURATION 3-9-1. STP Status -------------------------------------------------------------------------------------------87 3-9-2. STP Configuration----------------------------------------------------------------------------------89 3-9-3. STP Port Configuration----------------------------------------------------------------------------91 3-10. T ----------------------------------------------------------------------------94 RUNKING ONFIGURATION 3-11. 802.1 ------------------------------------------------------------------------------ 101 ONFIGURATION 3-12. A ------------------------------------------------------------------------------ 111 LARM ONFIGURATION 3-13. C --------------------------------------------------------------------------------------- 114 ONFIGURATION 3-13-1. Save/Restore ------------------------------------------------------------------------------------- 115 3-13-2.
Page 8 Revision History Release Date Revision 2.02 12/14/2005 2.02 06/01/2006 2.02 07/16/2007 2.02 11/29/2007 2.65 08/03/2010...
Page 9: Caution
Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: • Touch the metal chassis of your computer to ground the static electrical charge before you pick up the circuit device.
Page 10 Warning: • Self-demolition on Product is strictly prohibited. Damage caused by self-demolition will be charged for repairing fees. • Do not place product at outdoor or sandstorm. • Before installation, please make sure input power supply and product specifications are compatible to each other.
Page 11 About this user’s manual In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the ES-2310C through the built-in CLI and web by RS-232 serial interface and Ethernet ports step-by-step. Many...
Page 12: Introduction
1. Introduction 1-1. Overview of ES-2310C ES-2310C, 8 Fast Ethernet + 2 Gigabit L2 Managed Switch, implemented 8 10/100Mbps TP + 2 Gigabit dual media ports with TP/SFP, is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet and Ethernet specifications. The...
Page 13 ES-2310C User Manual • Key Features in the Device QoS: Support Quality of Service by the IEEE 802.1P standard. There are two priority queue and packet transmission schedule using Weighted Round Robin (WRR). User-defined weight classification of packet priority can be based on either VLAN tag on packets or user-defined port priority.
Page 14: Checklist
Hardware • Supports 8-port 10/100M TP ports with Nway and auto MDIX function • In ES-2310C, it supports 2 Gigabit dual media ports(TP/SFP) and 2 slots for removable SFP module supporting 1000M SFP fiber module • Supports on-line pluggable fiber transceiver modules •...
Page 15 ES-2310C User Manual • Supports 802.1Q VLAN with 256 entries. • Supports user management and limits three users to login • Supports DHCP Broadcasting Suppression to avoid network suspended or crashed • Supports to send the trap event while monitored events happened •...
Page 16: View Of Es-2310C

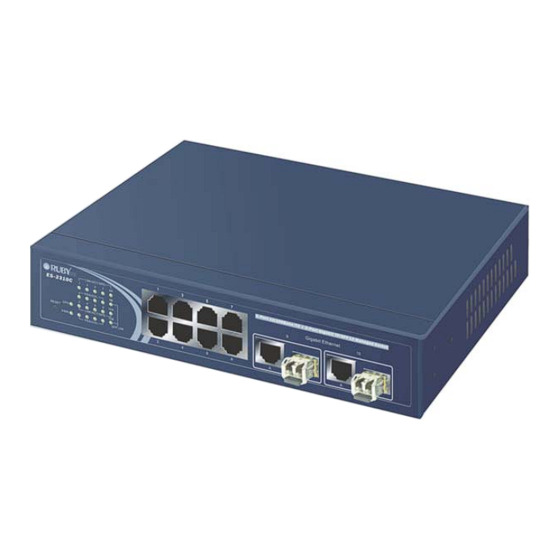

ES-2310C User Manual 1-4. View of ES-2310C Fig. 1-1 Full View of ES-2310C with SFP Module 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 8 TP Fast Ethernet ports and 2 slots for optional removable modules on the front panel of the switch.
Page 17 ES-2310C User Manual • LED Indicators Color Function System LED CPURUN Green Lit when CPU is on and good POWER Green Lit when AC power is on and good 10/100Mbps Ethernet TP Port 1 to 8 LED Green Lit when 100Mbps connection with...
Page 18: User Interfaces On The Rear Panel
One RS-232 DB-9 interface is offered for configuration or management. And there is one AC power input socket for having the switch powered on or off. AC Line 100-240V 50/60 Hz RS-232 DB-9 Connector Fig. 1-3 Rear View of ES-2310C Publication date: Aug., 2010 Revision A5...
Page 19: View Of The Optional Modules
ES-2310C User Manual 1-5. View of the Optional Modules In the switch, Port 9, 10 includes two types of media --- TP and SFP Fiber (LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high- speed connection expansion;...
Page 20: Installation
At the beginning, please do first: ⇒ Wear a grounding device to avoid the damage from electrostatic discharge • Installing Optional SFP Fiber Transceivers to the ES-2310C L2 Managed Switch Note: If you have no modules, please skip this section.
Page 21 ES-2310C User Manual • TP Port and Cable Installation ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP; 1, 2, 3, 4, 5, 6, 7, 8 to 1, 2, 3, 4, 5, 6, 7, 8 in Gigabit TP) and crossed-over (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 3, 6, 1, 2) can be used.
Page 22: Installing Chassis To A 19-Inch Wiring Closet Rail
ES-2310C User Manual 2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail Fig. 2-2 Caution: Allow a proper spacing and proper air ventilation for the cooling fan at both sides of the chassis. ⇒ Wear a grounding device for electrostatic discharge.
Page 23: Cabling Requirements For Tp Ports
ES-2310C User Manual 2-1-3-1. Cabling Requirements for TP Ports ⇒ For Fast Ethernet TP network connection ⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of 100 meters. ⇒ Gigabit Ethernet TP network connection ⎯...
Page 24: Switch Cascading In Topology
ES-2310C User Manual 2-1-3-3. Switch Cascading in Topology • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may up-link the switches unlimitedly. In practice, the network extension (cascading levels & overall diameter) must follow the constraint of the IEEE 802.3/802.3u/802.3z and other 802.1 series protocol specifications, in which...
Page 25 ES-2310C User Manual Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-3). Fig. 2-3 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
Page 26 ES-2310C User Manual Case 2b: Port-based VLAN (See Fig.2-5). Fig. 2-5 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.
Page 27: Configuring The Management Agent Of Es-2310C
RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch. You can touch them through the following procedures. Section 2-1-4-1: Configuring the Management Agent of ES-2310C through the Serial RS-232 Port...
Page 28: Configuring The Management Agent Of Es-2310C Through The Serial Rs-232 Port
ES-2310C User Manual 2-1-4-1. Configuring the Management Agent of ES-2310C through the Serial RS-232 Port To perform the configuration through RS-232 console port, the switch’s serial port must be directly connected to a DCE device, for example, a PC, through RS-232 cable with DB-9 connector.
Page 29 ES-2310C User Manual • Set IP Address, Subnet Mask and Default Gateway IP Address Please refer to Fig. 2-7 CLI Management for details about Rubytech’s setting. They are default setting of IP address. You can first either configure your PC IP address or change IP address of the switch, next to change the IP address of default gateway and subnet mask.
Page 30: Configuring The Management Agent Of Es-2310C Through The Ethernet Port
ES-2310C User Manual 2-1-4-2. Configuring the Management Agent of ES-2310C through the Ethernet Port There are three ways to configure and monitor the switch through the switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user interface for the last one is NMS dependent and does not cover here. We just introduce the first two types of management interface.
Page 31: Ip Address Assignment
ES-2310C User Manual Fig. 2-10 the Login Screen for Web 2-1-5. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
Page 32 ES-2310C User Manual With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
Page 33 ES-2310C User Manual Class D and E: Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
Page 34 ES-2310C User Manual In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask.
Page 35 ES-2310C User Manual For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. Default gateway: For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as default router.
Page 36: Typical Applications
ES-2310C User Manual 2-2. Typical Applications The ES-2310C implements 8 Fast Ethernet TP ports with auto MDIX and 2 Gigabit dual media ports with SFP for removable module supported comprehensive fiber types of connection, including LC, BiDi LC for SFP. For more details on the specification of the switch, please refer to Appendix A.
Page 37 ES-2310C User Manual Fig. 2-14 Peer-to-peer Network Connection Fig. 2-15 Office Network Connection Publication date: Aug., 2010 Revision A5...
Page 38: Operation Of Web-Based Management
3. Operation of Web-based Management This chapter instructs you how to configure and manage the ES-2310C through the web user interface it supports, to access and manage the 8 10/100Mbps TP + 2 Gigabit dual media ports with TP/SFP Fiber management Ethernet switch.
Page 39 ES-2310C User Manual In the switch, it supports a simple user management function allowing only one administrator to configure the system at the same time. If there are two or more users using administrator’s identity, the switch will allow the only one who logins first to configure the system.
Page 40: Web Management Home Overview
ES-2310C User Manual 3-1. Web Management Home Overview After you login, the switch shows you the system information as Fig. 3-2. This page is default and tells you the basic information of the system, including “Model Name”, “System Description”, “Location”, “Contact”, “Device Name”, “System Up Time”, “Current Time”, “BIOS Version”, “Firmware Version”, “Hardware-Mechanical...
Page 41 ES-2310C User Manual Fig. 3-3 port detail information In Fig. 3-3, it shows the basic information of the clicked port. With this, you’ll see the information about the port status, traffic status and bandwidth rating for egress and ingress respectively.
Page 42 ES-2310C User Manual Root System Port SNMP DHCP Boot IGMP Snooping VLAN MAC Table GVRP Trunk 802.1x Alarm Configuration Security Bandwidth Diagnostics TFTP Server Firmware Upgrade Reboot Logout Publication date: Aug., 2010 Revision A5...
Page 43: System Information
You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is ES-2310C. System up time: The time accumulated since this switch is powered up. Its format is day, hour, minute, second.
Page 44 ES-2310C User Manual Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Device Port: Show all types and numbers of the port in the switch.
Page 45: Ip Configuration
ES-2310C User Manual 3-1-2. IP Configuration IP configuration is one of the most important configurations in the switch. Without the proper setting, network manager will not be able to manage or view the device. The switch supports both manual IP address setting and automatic IP address setting via DHCP server.
Page 46 ES-2310C User Manual IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
Page 47 ES-2310C User Manual DNS: It is Domain Name Server used to serve the translation between IP address and name address. The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet.
Page 48: Time Configuration
ES-2310C User Manual 3-1-3. Time Configuration The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”, “Minute” and “Second” within the valid value range indicated in each item. If you...
Page 49 ES-2310C User Manual NTP: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply>...
Page 50 ES-2310C User Manual Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23.
Page 51: Account Configuration
ES-2310C User Manual 3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity. Guest-equivalent identity can modify his password only. Please note that you must confirm administrator/guest identity in the field of Authorization in advance before configuring the username and password.
Page 52: Management Security
ES-2310C User Manual 3-1-5. Management Security Through the management security configuration, the manager can do the strict setup to control the switch and limit the user to access this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
Page 53 ES-2310C User Manual Function name: Management Security Configuration Function description: The switch offers Management Security Configuration function. With this function, the manager can easily control the mode that the user connects to the switch. According to the mode, users can be classified into two types: Those who are able to connect to the switch (Accept) and those who are unable to connect to the switch (Deny).
Page 54 ES-2310C User Manual IP Range: The switch supports two kinds of options for managed valid IP Range, including “Any” and “Custom”. Default is “Any”. In case that” Custom” had been chosen, you can assigned effective IP range. The valid range is 0.0.0.0~255.255.255.255.
Page 55: Virtual Stack
ES-2310C User Manual 3-1-6. Virtual Stack Function name: Virtual Stack Function description: Virtual Stack Management(VSM) is the group management function. Through the proper configuration of this function, switches in the same LAN will be grouped automatically. And among these switch, one switch will be a master machine, and the others in this group will become the slave devices.
Page 56 ES-2310C User Manual Fig. 3-8 Parameter description: State: It is used for the activation or de-activation of VSM. Default is Enable. Role: The role that the switch would like to play in virtual stack. Two types of roles, including master and slave are offered for option. Default is Master.
Page 57: Port Configuration
ES-2310C User Manual 3-2. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
Page 58 ES-2310C User Manual Function name: Port Status Function Description: Report the latest updated status of all ports in this switch. When any one of the ports in the switch changes its parameter displayed in the page, it will be automatically refreshed the port current status about every 5 seconds.
Page 59 ES-2310C User Manual Speed / Duplex : Display the speed and duplex of all port. There are three speeds 10Mbps, 100Mbps and 1000Mbps supported for TP media, and the duplex supported is half duplex and full duplex. If the media is 1Gbps fiber, it is 1000Mbps supported only.
Page 60 ES-2310C User Manual Fig. 3-11 Parameter description of Port 9 and Port 10: Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so Fiber Type: Display the fiber mode, for instance, Multi-Mode, Single-Mode. Tx Central Wavelength: Display the fiber optical transmitting central wavelength, for instance, 850nm, 1310nm, 1550nm and so on.
Page 61 ES-2310C User Manual Vendor SN (Serial Number): Show the serial number assigned by the manufacturer. Date Code: Show the date this module was made. Temperature: Show the current temperature of module. Vcc: Show the working DC voltage of module. Mon1(Bias) mA: Show the Bias current of module.
Page 62: Port Configuration
ES-2310C User Manual 3-2-2. Port Configuration Port Configuration is applied to change the setting of each port. In this configuration function, you can set/reset the following functions. All of them are described in detail below. Fig. 3-12 Function name: Port Configuration Function description: It is used to set each port’s operation mode.
Page 63 ES-2310C User Manual Speed/Duplex: Set the speed and duplex of the port. In speed, 10/100Mbps baud rate is available for Fast Ethernet, Gigabit module in port 9, 10. If the media is 1Gbps fiber, it is always 1000Mbps and the duplex is full only. If the media is TP, the Speed/Duplex is comprised of the combination of speed mode, 10/100/1000Mbps, and duplex mode, full duplex and half duplex.
Page 64: Simple Counter
ES-2310C User Manual 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-13, the window can show all ports’ counter information at the same time.
Page 65 ES-2310C User Manual Rx Packet: The counting number of the packet received. Tx Collision: Number of collisions transmitting frames experienced. Rx Error Packet: Number of bad packets received. Publication date: Aug., 2010 Revision A5...
Page 66: Detail Counter
ES-2310C User Manual 3-2-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-14, the window can show only one port counter information at the same time.
Page 67 ES-2310C User Manual Rx Unicast Packets: Show the counting number of the received unicast packet. Rx Broadcast Packets: Show the counting number of the received broadcast packet. Rx Multicast Packets: Show the counting number of the received multicast packet. Rx Pause Packets: Show the counting number of the received pause packet.
Page 68 ES-2310C User Manual Packets 512-1023 Octets: Number of 512 ~ 1023-byte frames in good and bad packets received. Packets 1024-1522 Octets: Number of 1024-1522-byte frames in good and bad packets received. Tx Packets: The counting number of the packet transmitted.
Page 69: Snmp Configuration
ES-2310C User Manual 3-3. SNMP Configuration Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices. The SNMP is a protocol that is used to govern...
Page 70 ES-2310C User Manual Default SNMP function : Enable Default community name for GET: public Default community name for SET: private Default community name for Trap: public Default Set function : Enable Default trap host IP address: 0.0.0.0 Default port number :162 Trap: In the switch, there are 6 trap hosts supported.
Page 71: Dhcp Boot
ES-2310C User Manual 3-4. DHCP Boot The DHCP Boot function is used to spread the request broadcast packet into a bigger time frame to prevent the traffic congestion due to broadcast packets from many network devices which may seek its NMS, boot server, DHCP server and many connections predefined when the whole building or block lose the power and then reboot and recover.
Page 72: Igmp Snooping
ES-2310C User Manual 3-5. IGMP Snooping The function, IGMP Snooping, is used to establish the multicast groups to forward the multicast packet to the member ports, and, in nature, avoids wasting the bandwidth while IP multicast packets are running over the network. This is because...
Page 73 ES-2310C User Manual Parameter description: IGMP snooping mode selection: The switch supports three kinds of IGMP Snooping status, including “Passive”, “Active” and “Disable”. Disable: Set “Disable” mode to disable IGMP Snooping function. Default: Disable Active: In Active mode, IGMP snooping switch will periodically issue the...
Page 74 ES-2310C User Manual Function name: Allowed Group Function description: The Allowed Group function allows the IGMP Snooping to set up the IP multicast table based on user’s specific conditions. IGMP report packets that meet the items you set up will be joined or formed the multicast group.
Page 75 ES-2310C User Manual Add: A new entry of configuration can be created after the allowed group parameters as mentioned above had been setup and then press <Add> button. Edit: The existed entry also can be modified after pressing <Edit> button.
Page 76: Vlan
ES-2310C User Manual 3-6. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
Page 77 ES-2310C User Manual Symmetric Vlan: This is a Ingress Rule (Rule 1, The Ingress Filtering Rule 1 is “forward only packets with VID matching this port’s configured VID”.). For example, if port 1 receives a tagged packet with VID=100 (VLAN name=VLAN100), and if Symmetric-Vlan function is enabled, the switch will check if port 1 is a member of VLAN100.
Page 78: Tag-Based Group
ES-2310C User Manual 3-6-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups. You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name and VLAN ID after pressing <Add>...
Page 79 ES-2310C User Manual Add Group: Input the VLAN name, VID and then choose the member by ticking the check box beside the port No. to create a new Tag-based VLAN. As to the parameter of Untag, it stands for an egress rule of the port. If you tick the check box beside the port No., packets with this VID outgoing from...
Page 80: Pvid
ES-2310C User Manual 3-6-3. PVID Function name: PVID Function description: In PVID Setting, user can input VID number to each port. The range of VID number is from 1 to 4094. User also can choose ingress filtering rule (Rule 2) to each port.
Page 81 ES-2310C User Manual Drop Untag: Drop untagged frame. You can configure a given port to accept all frames (Tagged and Untagged) or just receive tagged frame. If the former is the case, then the packets with tagged or untagged will be processed. If the later is the case, only the packets carrying VLAN tag will be processed, the rest packets will be discarded.
Page 82: Port-Based Group
ES-2310C User Manual 3-6-4. Port-based Group Function name: Port-based Group Configuration Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit> and <Delete> function buttons. User can add a new VLAN group by inputting a new VLAN name.
Page 83 ES-2310C User Manual Add Group: Create a new Port-based VLAN. Input the VLAN name and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect. Fig. 3-25 Delete Group: Just press the <Delete>...
Page 84: Mac Table
ES-2310C User Manual 3-7. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static and MAC Alias, which cannot be categorized to some function type. They are described below. Function name: MAC Table Information...
Page 85 ES-2310C User Manual Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists. State: Display the method that this MAC Entry is built. It may show “Dynamic MAC” or “Static MAC”. Fig. 3-27 Publication date: Aug., 2010...
Page 86 ES-2310C User Manual Function Name: MAC Table Maintenance Function Description: This function can allow the user to set up the processing mechanism of MAC Table. An idle MAC address exceeding MAC Address Age-out Time will be removed from the MAC Table. The range of Age-out Time is 10-1000000 seconds, and the setup of this time will have no effect on static MAC addresses.
Page 87 ES-2310C User Manual Function Name: Static Setting Function Description: The function of Static is used to configure MAC’s real manners inside of the switch. Three kinds of manners including static, static with destination drop and static with source drop are contained in this function .
Page 88 ES-2310C User Manual Queue (Priority): Set up the priority( 0~3) for the MAC. Forwarding Rule(Drop Policy): Static: A MAC address is assigned to a specific port, all of the switch’s traffics sent to this MAC address will be forwarded to this port.
Page 89 ES-2310C User Manual Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report. At the initial time, it shows all pairs of the existed alias name and MAC address.
Page 90 ES-2310C User Manual Parameter description: MAC Address: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 40 - C7 - D6 – 00 - 02 Alias: MAC alias name you assign.
Page 91: Gvrp Configuration
ES-2310C User Manual 3-8. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application. It makes use of GARP...
Page 92 ES-2310C User Manual Function name: GVRP Config Function description: In the function of GVRP Config, it is used to configure each port’s GVRP operation mode, in which there are seven parameters needed to be configured described below. Parameter description: GVRP State Setting: This function is simply to let you enable or disable GVRP function.
Page 93 ES-2310C User Manual Normal: It is Normal Registration. The Registrar responds normally to incoming GARP messages. The default setting is Normal. Fixed: It is Registration Fixed. The Registrar ignores all GARP messages, and all members remain in the registered (IN) state.
Page 94 ES-2310C User Manual Function name: GVRP Counter Function description: All GVRP counters are mainly divided into Received and Transmitted two categories to let you monitor the GVRP actions. Actually, they are GARP packets. Fig. 3-32 Parameter description: Received: Total GVRP Packets: Total GVRP BPDU is received by the GVRP application.
Page 95 ES-2310C User Manual LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application. Transmitted: Total GVRP Packets: Total GARP BPDU is transmitted by the GVRP application.
Page 96 ES-2310C User Manual Function name: GVRP Group Information Function description: To show the dynamic group member and their information. Parameter description: Current Dynamic Group Number: The number of GVRP group that are created currently. VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID.
Page 97: Stp Configuration
ES-2310C User Manual 3-9. STP Configuration The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D) for avoiding loops in switched networks. When STP is enabled, ensure that only one path is active between any two nodes on the network at a time. User can enable Spanning Tree Protocol on switch’s web management and then set up other...
Page 98 ES-2310C User Manual All bridges in the LAN will re-learn and determine which the root bridge is. Maximum Age time is assigned by root bridge in unit of seconds. Default is 20 seconds. Current Forward Delay: Show the current root bridge forward delay time. The value of Forward Delay time is set by root.
Page 99: Stp Configuration
ES-2310C User Manual 3-9-2. STP Configuration The STP, Spanning Tree Protocol, actually includes RSTP. In the Spanning Tree Configuration, there are six parameters open for the user to configure as user’s idea. Each parameter description is listed below. Function name:...
Page 100 ES-2310C User Manual Forward Delay: You can set the root bridge forward delay time. This figure is set by root bridge only. The forward delay time is defined as the time spent from Listening state moved to Learning state and also from Learning state moved to Forwarding state of a port in bridge.
Page 101: Stp Port Configuration
ES-2310C User Manual 3-9-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item.
Page 102 ES-2310C User Manual 802.1w RSTP recommended value: (Valid range: 1 – 200,000,000) 10 Mbps : 2,000,000 100 Mbps : 200,000 1 Gbps : 20,000 Default: 0 Priority: Priority here means Port Priority. Port Priority and Port Number are mixed to form the Port ID. Port IDs are often compared in order to determine which port of a bridge would become the Root Port.
Page 103 ES-2310C User Manual M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port.
Page 104: Trunking Configuration
ES-2310C User Manual 3-10. Trunking Configuration The Port Trunking Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
Page 105 ES-2310C User Manual Per Trunking Group supports a maximum of 4 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Trunk Setting Rules are listed below: Rule1: Maximum 3 groups are allowed...
Page 106 ES-2310C User Manual Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports.
Page 107 ES-2310C User Manual Aggtr: Aggtr is an abbreviation of “aggregator”. Every port is also an aggregator, and its own aggregator ID is the same as its own Port No. We can regard an aggregator as a representative of a trunking group. Ports with same Group ID and using same trunking method will have the opportunity to aggregate to a particular aggregator port.
Page 108 ES-2310C User Manual Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 10) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
Page 109 ES-2310C User Manual Function name: LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view. System Priority: Show the System Priority part of a system ID.
Page 110 ES-2310C User Manual Function name: LACP System Configuration Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system. Each system supports LACP will be assigned a globally unique System Identifier for this purpose.
Page 111: Configuration
ES-2310C User Manual 3-11. 802.1x Configuration 802.1x port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1x-enabled port without authentication. If a user wishes to touch the network through a port under 802.1x control, he (she) must firstly input his (her) account name for authentication...
Page 112 ES-2310C User Manual The overview of operation flow for the Fig. 3-41 is quite simple. When Supplicant PAE issues a request to Authenticator PAE, Authenticator and Supplicant exchanges authentication message. Then, Authenticator passes the request to RADIUS server to verify. Finally, RADIUS server replies if the request is granted or denied.
Page 113 ES-2310C User Manual Authentication server Fig. 3-42 Authenticator Supplicant A The Fig. 3-43 shows the procedure of 802.1x authentication. There are steps for the login based on 802.1x port access control management. The protocol used in the right side is EAPOL and the left side is EAP.
Page 114 ES-2310C User Manual If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant. At this time, the supplicant is authorized and the port connected to the supplicant and under 802.1x control is in the authorized state.
Page 115 ES-2310C User Manual Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
Page 116 ES-2310C User Manual Function name: 802.1x State Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1x port security application. Parameter description: Radius Server: RADIUS server IP address for authentication. Default: 192.168.1.1 Port Number: The port number to communicate with RADIUS server for the authentication service.
Page 117 ES-2310C User Manual Function name: 802.1x Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host operation mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1x operation mode.
Page 118 ES-2310C User Manual Function name: Port Security Management Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Disable Mode: When selecting Disable mode for a port in the function 802.1X Port Mode Configuration, the port is in the uncontrolled port state and does not apply 802.1X authenticator on it.
Page 119 ES-2310C User Manual Function name: Param. Setting Function description: This function is used to configure the parameters for each port in 802.1x port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1x parameters which are Port control, reAuthMax, txPeriod, Quiet Period, reAuthEnabled, reAuthPeriod, max.
Page 120 ES-2310C User Manual reAuthEnabled: Choose whether regular authentication will take place in this port. Default: ON reAuthPeriod(1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 max. Request(1-10): The maximum of number times that the authenticator will retransmit an EAP Request to the supplicant before it times out the authentication session.
Page 121: Alarm Configuration
ES-2310C User Manual 3-12. Alarm Configuration Alarm Configuration Events Configuration Email Configuration Function name: Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 21 different trap events to users for switch management.
Page 122 ES-2310C User Manual LACP: LACP Disabled, LACP Enabled, LACP Member Added, LACP Port Failure GVRP: GVRP Disabled, GVRP Enabled VLAN: Port-based VLAN Enabled, Tag-based VLAN Enabled Module Swap: Module Inserted, Module Removed, Dual Media Swapped Publication date: Aug., 2010 Revision A5...
Page 123 ES-2310C User Manual Function name: Email Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via email. It depends on your settings. An email address has to be set in the web page of alarm configuration (See Fig. 3-49). Then, user can read the trap information from the email.
Page 124: Configuration
ES-2310C User Manual 3-13. Configuration The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively. Default Configuration: This is Rubytech’s setting and cannot be altered. In Web UI, two restore default functions are offered for the user to restore to the default setting of the switch.
Page 125: Save/Restore
ES-2310C User Manual 3-13-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Fig. 3-51 Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory.
Page 126 ES-2310C User Manual Function name: Restore Default Configuration (includes default IP address) Function description: Restore Default Configuration function can retrieve Rubytech’s setting to replace the start configuration. And the IP address of the switch will also be restored to 192.168.1.1.
Page 127 ES-2310C User Manual Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration. When completing to restore the configuration, the system’s start configuration is updated and will be changed its system settings after rebooting the system.
Page 128: Config File
ES-2310C User Manual 3-13-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP. Parameter description: Export File Path: Export Start: Export Save As Start’s config file stored in the flash.
Page 129: Security
ES-2310C User Manual 3-14. Security Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.
Page 130 ES-2310C User Manual Function name: Isolated Group Function description: Isolated Group function can let the port be independent of other ports in the Isolated group, and the communication is also forbidden between these ports. But, the ports of the Isolated group are still able to communicate with the ports of the non-Isolated group.
Page 131 ES-2310C User Manual Function name: Restricted Group Function description: The function of the Restricted Group can decide the direction of transmitting packets for the specific port. The packets received by the port with the “Ingress” mode of Restricted Group will be sent to the ports with the “Egress”...
Page 132: Bandwidth Management
ES-2310C User Manual 3-15. Bandwidth Management Function name: Ingress Bandwidth Setting Function description: Ingress Bandwidth Setting function is used to set up the limit of Ingress bandwidth for each port. Fig. 3-60 Parameter description: Port No.: Choose the port that you would like this function to work on it. Valid range of the port is 1~10.
Page 133 ES-2310C User Manual Function name: Egress Bandwidth Setting Function description: Egress Bandwidth Setting function is used to set up the limit of Egress bandwidth for each port. Fig. 3-61 Parameter description: Port No.: Choose the port that you would like this function to work on it. Valid range of the port is 1~10.
Page 134 ES-2310C User Manual Function name: Storm Setting Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Fig. 3-62 Parameter description: Storm Type: Disable: Disable the function of the bandwidth storm control.
Page 135 ES-2310C User Manual Storm Rate : Set up the limit of bandwidth for storm type you choose. Valid value of the storm rate ranges from 1-100 with the minimum unit of 1. And only integer is acceptable. Default is 100.
Page 136: Qos(Quality Of Service) Configuration
ES-2310C User Manual 3-16. QoS(Quality of Service) Configuration The switch supports 5 kinds of QoS, are as follows, MAC Priority, 802.1p Priority, IP TOS Priority, and DiffServ DSCP Priority. Port Based Priority has a special name called VIP Port in the switch. Any packets enter VIP Port will have highest transmitting priority.
Page 137 ES-2310C User Manual The QoS functions as we mentioned above are able to enabled at the same time. But, the following precedence will decide whether these functions work or not. 1. enable both VIP and TOS Choose priorities of VIP and TOS.
Page 138 ES-2310C User Manual Function name: QoS Global Setting Function description: When you want to use QoS function, please enable QoS Mode in advance. Then you can use MAC Priority, 802.1p Priority, IP TOS Priority, DiffServ DSCP Priority, or VIP Port functions and take effect. In this function, you can Enable QoS Mode.
Page 139 ES-2310C User Manual Function name: VIP Port Setting Function description: When the port is set as VIP Port, the packets enter this port and will have highest transmitting priority. For example, as you choose port 2 is VIP Port, simultaneously transmit packets from port 2 and port 3 to port 1 at speed of 100MB and let congestion happen.
Page 140 ES-2310C User Manual Function name: 802.1p Setting Function description: This function will affect the priority of VLAN tag. Based on priority of VLAN tag, it can arrange 0~8 priorities, priorities can map to 4 queues of the switch (queue 0~3) and possess different bandwidth distribution according to your weight setting.
Page 141 ES-2310C User Manual Function name: D-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The field could be divided into six subfields as follows, PRECEDENCE (3 bits), D- Type (Delay Priority, 1 bit ), T-Type (Throughput Priority, 1bit), R-Type (Reliability Priority, 1bit ), M-Type (Monetary Cost Priority, 1bit ), and UNUSED.
Page 142 ES-2310C User Manual Function name: T-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The field could be divided into six subfields as follows, PRECEDENCE (3 bits), D- Type (Delay Priority, 1 bit ), T-Type (Throughput Priority, 1bit), R-Type (Reliability Priority, 1bit ), M-Type (Monetary Cost Priority, 1bit ), and UNUSED.
Page 143 ES-2310C User Manual Function name: R-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The field could be divided into six subfields as follows, PRECEDENCE (3 bits), D- Type (Delay Priority, 1 bit ), T-Type (Throughput Priority, 1bit), R-Type (Reliability Priority, 1bit ), M-Type (Monetary Cost Priority, 1bit ), and UNUSED.
Page 144 ES-2310C User Manual Function name: M-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The field could be divided into six subfields as follows, PRECEDENCE (3 bits), D- Type (Delay Priority, 1 bit ), T-Type (Throughput Priority, 1bit), R-Type (Reliability Priority, 1bit ), M-Type (Monetary Cost Priority, 1bit ), and UNUSED.
Page 145 ES-2310C User Manual Function name: DSCP Setting Function description: In the late 1990s, the IETF redefined the meaning of the 8-bit SERVICE TYPE field to accommodate a set of differentiated services (DS). Under the differentiated services interpretation, the first six bits comprise a codepoint, which is sometimes abbreviated DSCP, and the last two bits are left unused.
Page 146: Diagnostics
ES-2310C User Manual 3-17. Diagnostics Three functions, including Diagnostics, Loopback Test and Ping Test are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections. Diagnostics Diagnostics Loopback Test...
Page 147 ES-2310C User Manual Function name: Loopback Test Function description: In the Loopback Test function, there are two different loopback tests. One is Internal Loopback Test and the other is External Loopback Test. The former test function will not send the test signal outside the switch box. The test signal only wraps around in the switch box.
Page 148 ES-2310C User Manual Function name: Ping Test Function description: Ping Test function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides Ping Test function to let you know that if the target device is available or not.
Page 149: Tftp Server
ES-2310C User Manual 3-18. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply> button to have the setting taken effect.
Page 150: Log
ES-2310C User Manual 3-19. Log This function shows the log data. The switch provides system log data for users. There are 16 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.
Page 151 ES-2310C User Manual Upload Log: Upload log data through tftp. Clear Log: Clear log data. Publication date: Aug., 2010 Revision A5...
Page 152: Firmware Upgrade
ES-2310C User Manual 3-20. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet.
Page 153: Reboot
ES-2310C User Manual 3-21. Reboot We offer you many ways to reboot the switch, including power up, hardware reset and software reset. You can press the RESET button in the front panel to reset the switch. After upgrading software, changing IP configuration or changing VLAN mode configuration, then you must reboot to have the new configuration taken effect.
Page 154: Logout
ES-2310C User Manual 3-22. Logout You can manually logout by performing Logout function. In the switch, it provides another way to logout. You can configure it to logout automatically. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.
Page 155: Operation Of Cli Management
ES-2310C User Manual 4. Operation of CLI Management 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
Page 156 ES-2310C User Manual Fig. 4-1 Fig. 4-2 Publication date: Aug., 2010 Revision A5...
Page 157: Commands Of Cli
ES-2310C User Manual 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands. Global commands can be used wherever the mode you are.
Page 158: Global Commands Of Cli
ES-2310C User Manual 4-2-1. Global Commands of CLI Syntax: Description: Back to the top mode. When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode.
Page 159 ES-2310C User Manual help Syntax: help Description: To show available commands. Some commands are the combination of more than two words. When you enter this command, the CLI would show the complete commands. Besides, the command would help you classify the commands between the local commands and the global ones.
Page 160 ES-2310C User Manual history Syntax: history [#] Description: To show a list of previous commands that you had ever run. When you enter this command, the CLI would show a list of commands which you had typed before. The CLI supports up to 256 records. If no argument is typed, the CLI would list total records up to 256.
Page 161 ES-2310C User Manual logout Syntax: logout Description: When you enter this command via Telnet connection, you would logout the system and disconnect. If you connect the system through direct serial port with RS-232 cable, you would logout the system and be back to the initial login prompt when you run this command.
Page 162 ES-2310C User Manual restore user Syntax: restore user Description: To restore the startup configuration as user defined configuration. If restoring default successfully, the CLI would prompt if reboot immediately or not. If you press Y or y, the system would reboot immediately; others would back to the CLI system. After restoring user-defined configuration, all the changes in the startup configuration would be lost.
Page 163 ES-2310C User Manual save user Syntax: save user Description: To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration. Argument: None. Possible value: None.
Page 164: Local Commands Of Cli
<port range>: syntax 1,5-7, available from 1 to 10 <times>: max. times, range 1-10 Possible value: <port range> : 1 to 10 <times> : 1-10, default is 2 Example: ES-2310C(802.1x)# set max-request 2 2 set mode Syntax: set mode <port-range> <mode> Description: mode of each port.
Page 165 2:Auto Possible value: <port range> : 1 to 10 <authorized> : 0,1 or 2 Example: ES-2310C(802.1x)# set port-control 2 2 set quiet-period Syntax: set quiet-period <port-range> <sec> Description: A timer used by the Authenticator state machine to define periods of time during when it will not attempt to acquire a Supplicant.
Page 166 <max> : max. value , range 1-10 Possible value: <port range> : 1 to 10 <max> : 1-10, default is 2 Example: ES-2310C(802.1x)# set reAuthMax 2 2 set reAuthPeriod Syntax: set reAuthPeriod <port-range> <sec> Description: A constant that defines a nonzero number of seconds between periodic reauthentication of the supplicant.
Page 167 <secret-key> : set up the value of secret-key, and the length of secret-key is from 1 to 31 Possible value: <port-number> : 1~65535, default 1812 Example: ES-2310C(802.1x)# set state 192.168.1.115 1812 WinRadius set suppTimeout Syntax: set suppTimeout <port-range> <sec> Description:...
Page 168 ES-2310C User Manual show mode Syntax: show mode Description: To display the mode of each port. Argument: None. Possible value: None. Example: ES-2310C(802.1x)# show mode Port Mode ====== ============ Disable Multi-host Disable Disable Disable Disable show parameter Syntax: show parameter Description: To display the parameter settings of each port.
Page 169 ES-2310C User Manual show security Syntax: show security Description: To display the status of each port. authentication Argument: None. Possible value: None. Example: ES-2310C(802.1x)# show security Port Mode Status ====== ============ ============== Disable Multi-host Unauthorized Disable Disable Disable Disable show state...
Page 170 ES-2310C User Manual account Syntax: add <name> Description: To create a new guest user. When you create a new guest user, you must type in password and confirm password. Argument: <name> : new account name Possible value: <name> : a string must be at least 5 character.
Page 171 ES-2310C User Manual modify Syntax: modify <name> Description: To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: ES-2310C(account)# modify aaaaa username/password: the length is from 5 to 15. Current username (aaaaa):bbbbb...
Page 172 Description: To set up the email address. Argument: <#> : email address number, range: 1 to 6 <mail address> : email address Possible value: <#>: 1 to 6 Example: ES-2310C(alarm-email)# set mail-address 1 abc@mail.abc.com Publication date: Aug., 2010 Revision A5...
Page 173 To set up the IP address of the email server. Argument: <ip>:email server ip address or domain name Possible value: None. Example: ES-2310C(alarm-email)# set server 192.168.1.6 set user Syntax: set user <username> Description: To set up the account of the email server.
Page 174 To disable email, sms and trap of events. Argument: <range>:del the range of email, sms and trap of events, syntax 1,5-7 Possible value: <range>: 1~21 Example: ES-2310C(alarm-events)# del all 1-3 del email Syntax: del email <range> Description: To disable the email of the events.
Page 175 To disable the trap of the events. Argument: <range>:del the range of trap, syntax 1,5-7 Possible value: <range>: 1~21 Example: ES-2310C(alarm-events)# del trap 1-3 set all Syntax: set all <range> Description: To enable email, sms and trap of events. Argument: <range>:set the range of email, sms and trap of events, syntax 1,5-7...
Page 176 Description: To enable the sms of the events. Argument: <range>:set the range of sms, syntax 1,5-7 Possible value: <range>: 1~21 Example: ES-2310C(alarm-events)# set sms 1-3 set trap Syntax: set trap <range> Description: To enable the trap of the events. Argument: <range>:set the range of trap, syntax 1,5-7...
Page 177 ES-2310C User Manual show Syntax: show Description: The Show here is used to display the configuration of alarm event. Argument: None. Possible value: None. Example: ES-2310C(alarm-events)# show Events Email SMS Trap ----------------------------------------- 1 Cold Start 2 Warm Start 3 Link Down...
Page 178 To delete sms phone number. Argument: <#>: mobile phone number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: ES-2310C(alarm-sms)# del phone-number 3 del server-user Syntax: del server-user Description: To delete sms server, user account and password. Argument: None.
Page 179 Argument: <#>: mobile phone number, range: 1 to 6 <phone-number>: phone number Possible value: <#>: 1 to 6 Example: ES-2310C(alarm-sms)# set phone-number 1 0968777777 set server Syntax: set server <ip> Description: To set up the IP address of sms server.
Page 180 ES-2310C User Manual show Syntax: show Description: To display the configuration of SMS trap event. Argument: None. Possible value: None. Example: ES-2310C(alarm-sms)# show SMS Server : 192.168.1.7 Username : ABC Password : **************** Mobile Phone 1: 0968777777 Mobile Phone 2:...
Page 181 1-8: 66-102400(Kb); port 9-10: 66-1024000(Kb) Possible value: <range>: 1 to 10 <data_rate>: 66-102400(Kb) for port 1-8; 66-1024000(Kb) for port 9-10 Example: ES-2310C(bandwidth)# set egress-rate 1-6 299 set ingress-rate Syntax: set ingress-rate <range> <data_rate> Description: To set up the ingress-rate of the ports.
Page 182 <data_rate>: 1-100. The value must be the integer. The value 100 disables broadcast storm control. Possible value: <range>: 1 to 5 <data_rate>: 1-100. Example: ES-2310C(bandwidth)# set storm-rate 2 99 show Syntax: show Description: To display all current settings of the bandwidth.
Page 183 ES-2310C User Manual config-file export start Syntax: export start Description: To run the export start function. Argument: None. Possible value: None. Example: ES-2310C(config-file)# export start Export successful. export user-conf Syntax: export user-conf Description: To run the export user-conf function. Argument: None.
Page 184 To set up the file path and filename that user would like to export. Argument: <filepath>:filepath and filename Possible value: <filepath>:filepath and filename Example: ES-2310C(config-file)# set export-path log/21511.txt set import-path Syntax: set import-path <filepath> Description: To set up the filepath and filename that user would like to import.
Page 185 ES-2310C User Manual show Syntax: show Description: To display the information of the config file. Argument: None. Possible value: None. Example: ES-2310C(config-file)# show TFTP Server IP Address: 192.168.3.111 Export Path and Filename: log/21511.txt Import Path and Filename: log/21511.txt dhcp-boot set dhcp-boot Syntax: set <sec>...
Page 186 ES-2310C User Manual diag diag Syntax: diag Description: Diag is used to test whether EEPROM, UART, DRAM and Flash is normal or not. Argument: None. Possible value: None. Example: ES-2310C(diag)# diag EEPROM Test : OK UART Test : OK DRAM Test...
Page 187 To set up the image file that will be upgraded. Argument: <filepath>: upgrade file path and name Possible value: <filepath>: upgrade file path and name Example: ES-2310C(firmware)# set upgrade-path ES2310_v2.05.img show Syntax: show Description: To display the information of tftp server and upgrade-path and file name.
Page 188 ES-2310C User Manual gvrp disable Syntax: disable Description: To disable the gvrp function Argument: None. Possible value: None. Example: ES-2310C(gvrp)# disable enable Syntax: enable Description: To enable the gvrp function. Argument: None. Possible value: None. Example: ES-2310C(gvrp)# enable group Syntax: group <group number>...
Page 189 ES-2310C User Manual ES-2310C(gvrp)# group 2 ES-2310C(gvrp-group-2)# set applicant 1-6 non-participant ES-2310C(gvrp-group-2)# show GVRP group VID: 2 Port Applicant Registrar ---- --------------- --------- Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Normal Normal Normal Normal Normal...
Page 190 <normal>: set applicant as normal mode <non-participant>: set applicant as non-participant mode Possible value: <range>: 1 to 10 <normal|non-participant>: normal or non-participant Example: ES-2310C(gvrp)# set applicant 1-8 non-participant set registrar Syntax: set registrar <range> <normal|fixed|forbidden> Description: To set default registrar mode for each port.
Page 191 ES-2310C User Manual Example: ES-2310C(gvrp)# set restricted 1-10 enable ES-2310C(gvrp)# show config GVRP state: Enable Port Join Time Leave Time LeaveAll Time Applicant Registrar Restricted ---- --------- ---------- ------------- --------------- --------- ---------- 1000 Normal Normal Enable 1000 Normal Normal Enable...
Page 192 Leave Time must equal double Join Time at least. Possible value: <range> : 1 to 10 <join>: 20 to 100 <leave>: 60 to 300 <leaveall>: 1000 to 5000 Example: ES-2310C(gvrp)# set timer 2-8 25 80 2000 show config Syntax: show config Description: To display the gvrp configuration. Argument: None.
Page 193 To show counter of the port. Argument: <port>: port number, available from 1 to 10 Possible value: <port>: 1 to 10 Example: ES-2310C(gvrp)# show counter 2 GVRP Counter port: 2 Counter Name Received Transmitted -------------------- -------- ----------- Total GVRP Packets...
Page 194 <port-range>: syntax 1,5-7, available from 1 to 10 Possible value: <ip-multicast>: ex: 224.1.1.1-225.2.3.3 or any <vid>: 1-4094 or any <port-range>: 1 to 10 Example: ES-2310C(igmp-snooping)# add allowed-group 224.1.1.1-225.2.3.3 100 1-8 del allowed-group Syntax: del allowed-group <index> Description: To remove the entry of allowed IP multicast group Argument: <index>: the index of the allowed-group.
Page 195 To set up the mode of IGMP Snooping. Argument: <status>: 0:disable, 1:active, 2:passive Possible value: <status>: 0,1or 2 Example: ES-2310C(igmp-snooping)# set mode 2 show igmp-snooping Syntax: show igmp-snooping Description: To display IGMP snooping mode and allowed IP multicast entry. Argument: None.
Page 196 To enable the system DHCP function and set DNS server via manual or auto mode. Argument: <manual|auto> : set DNS by using manual or auto mode. Possible value: <manual|auto> : manual or auto Example: ES-2310C(ip)# enable dhcp manual set dns Syntax: set dns <ip> Description: To set the IP address of DNS server.
Page 197 Possible value: <ip> : 192.168.1.1 or others <mask> : 255.255.255.0 or others <gateway> : 192.168.1.253 or others Example: ES-2310C(ip)# set ip 192.168.1.2 255.255.255.0 192.168.1.253 show Syntax: show Description: To display the system’s DHCP function state, IP address, subnet mask, default gateway, DNS mode, DNS server IP address and current IP address.
Page 198 ES-2310C User Manual clear Syntax: clear Description: To clear the log data. Argument: None. Possible value: None. Example: ES-2310C(log)# clear disable auto-upload Syntax: disable auto-upload Description: To disable the auto-upload function. Argument: None. Possible value: None. Example: ES-2310C(log)# disable auto-upload...
Page 199 ES-2310C User Manual show Syntax: show Description: To show a list of trap log events. When any of log events happens, it will be recorded and using show command in log function to query. Up to 120 log records are supported.
Page 200 <mac> : mac address, format: 00-02-03-04-05-06 <alias> : mac alias name, max. 15 characters Possible value: <mac> : mac address <alias> : max. 15 characters Example: ES-2310C(mac-table-alias)# set 00-44-33-44-55-44 www show Syntax: show Description: To display the mac alias entry.
Page 201 <vid> : vlan id, from 1 to 4094; '?' as don't care, 0 as untagged Possible value: <port> : 1 to 10 <vid> : 0, 1 ~4094 Example: ES-2310C(mac-table-information)# search 1-10 ??-??-??-??-??-?? ? MAC Table List Alias MAC Address Port VID State...
Page 202 0 to 8191; 0 for learning disabled Possible value: <port> : 1 to 10 <num>: 0 to 8191 Example: ES-2310C(mac-table-maintain)# set learning 5 100 show Syntax: show Description: To display the settings of MAC table ageout time and the learning limit of each port.
Page 203 <port> : forwarded destination port, form 1 to 10 Possible value: <vid>: 1 to 4094 <queue>: 0 to 3 <rule>: 0 to 2 <port>: 1 to 10 Example: ES-2310C(mac-table-static-mac)# add 00-22-44-55-66-77 1 0 0 6 Publication date: Aug., 2010 Revision A5...
Page 204 ES-2310C User Manual Syntax: del <mac> Description: To remove the static mac entry. Argument: <mac> : mac address, format: 00-02-03-04-05-06 Possible value: <mac> : mac address Example: ES-2310C(mac-table-static-mac)# del 00-02-03-04-05-06 show Syntax: show Description: To display static mac entry. Argument: None.
Page 205 [<type> <value>] For example, h(ttp),s(nmp),t(elnet) or any. <action> <value> No default and it must be set. Example: ES-2310C(management-add)# set name Mary vid 20 ip 192.168.1.1-192.168.1.90 port 2-5,8 type h,s action a ES-2310C(management-add)# show #: 1 Name : Mary VlanID : 20 IP : 192.168.1.1-192.168.1.90...
Page 206 ES-2310C User Manual delete Syntax: delete # Description: To delete a specific record or range. Argument: [#]: a specific or range management security entry(s) Possible value: None. Example: ES-2310C(management)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80...
Page 207 ES-2310C User Manual Example: ES-2310C(management)# edit 1 ES-2310C(management-edit-1)# set name Tom vid 2 ip 192.168.1.30- 192.168.1.80 port 1-2 type s action d ES-2310C(management-edit-1)# show #: 1 Name : Tom VlanID : 2 IP : 192.168.1.30-192.168.1.80 Type : SNMP Action : Deny...
Page 208 To disable the communication capability of the port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 10 Possible value: <range>: 1 ~ 10 Example: ES-2310C(port)# disable state 8 enable state Syntax: enable state <range> Description: To enable the communication capability of the port.
Page 209 : set to half duplex full : set to full duplex Possible value: <range>: 1 to 10 <port-speed> : auto, 10, 100, 1000 <port-duplex> : full, half Example: ES-2310C(port)# set speed-duplex 8 100 full Publication date: Aug., 2010 Revision A5...
Page 210 To display the detailed counting number of each port’s traffic. Argument: <#> : port, available from 1 to 10 Possible value: <#>:1 ~ 10 Example: ES-2310C(port)# show detail-counter 6 show media Syntax: show media <port> Description: To display the module 9 or 10 information.
Page 211 ES-2310C User Manual Port 9 Fiber Media Information --------------------------------------------------------------------- Connector Type : SFP - LC Fiber Type : Multi-mode (MM) Tx Central Wavelength : 850 Baud Rate : 1G Vendor OUI : 00:40:c7 Vendor Name : APAC Opto Vendor PN...
Page 212 ES-2310C User Manual show status Syntax: show status Description: To display the port’s current status. Argument: None. Possible value: None. Example: ES-2310C(port)# show status Port Media Link State Auto Nego. Speed/Duplex Rx Pause Tx Pause ---- ----- ---- ------- ---------- ------------ -------- --------...
Page 213 ES-2310C User Manual disable 1p Syntax: disable 1p Description: To disable 802.1p qos. Argument: None. Possible value: None. Example: ES-2310C(qos)# disable 1p disable dscp Syntax: disable dscp Description: To disable IP DSCP qos. Argument: None. Possible value: None. Example: ES-2310C(qos)# disable dscp...
Page 214 ES-2310C User Manual disable tos Syntax: disable tos Description: To disable IP TOS qos. Argument: None. Possible value: None. Example: ES-2310C(qos)# disable tos enable 1p Syntax: enable 1p Description: To enable 802.1p qos. Argument: None. Possible value: None. Example: ES-2310C(qos)# enable 1p...
Page 215 You don't need to use all of queue, but must assign queue in order. Syntax: 1,2 or 2,5-7, available from 0 to 63. Possible value: <priority>: 0 to 63 Example: ES-2310C(qos)# set dscp q0 2 q1 2 q2 2 q3 3 Publication date: Aug., 2010 Revision A5...
Page 216 You don't need to use all of queues, but must assign queues in order. Syntax: 1,2 or 2,5-7, available from 0 to 7. Possible value: <priority>: 0 to 7 Example: ES-2310C(qos)# set pri-tag q0 0 q1 2 q3 4 set sche Syntax: set sche <wrr|strict> <wrr_0> <wrr_1> <wrr_2> <wrr_3> Description: To set qos schedule and weight for 4 queues.
Page 217 ES-2310C User Manual Possible value: <type_value>: 0~3 <priority>: 0 to 7 Example: ES-2310C(qos)# set tos 0 q0 1 q1 2 q2 4 q3 6 set vip Syntax: set vip <port_range> <mode> Description: To set vip port for strict priority. Argument: <port_range>: syntax 1,5-7, available from 1 to 10...
Page 218 ES-2310C User Manual DiffServ Queue DiffServ Queue DiffServ Queue DiffServ Queue ---------- ------- ---------- ------- ---------- ------- ---------- ------ show port Syntax: show port Description: To show VIP port configuration. Argument: None. Possible value: None. Example: ES-2310C(qos)# show port Port Based Priority...
Page 219 ES-2310C User Manual show priority-tag Syntax: show priority-tag Description: To show 802.1p Qos configuration. Argument: None. Possible value: None. Example: ES-2310C(qos)# show priority-tag 802.1p priority ==================== Global QoS mode: Enable QoS Enable 802.1p Priority Disable ip tos classification Disable ip diffserv classification Scheduling: weighted round robin method.
Page 220 ES-2310C User Manual show tos Syntax: show tos Description: To show IP tos Qos configuration. Argument: none Possible value: none Example: ES-2310C(qos)# show tos ip tos classification ==================== Global QoS mode: Enable QoS Disable 802.1p Priority Enable ip tos classification...
Page 221 ES-2310C User Manual reboot reboot Syntax: reboot Description: To reboot the system. Argument: None. Possible value: None. Example: ES-2310C# reboot security <<isolated-group>> Syntax: set <port> Description: To set up the function of the isolated group. Argument: <port> : isolated port; range syntax: 1,5-7, available from 0 to 10...
Page 222 <egress>: monitored egress port; range syntax: 1,5-7, available from 0 to 10 set ingress/egress to 0 as ingress/egress disabled Possible value: <ingress>: 0 to 10 <egress>: 0 to 10 Example: ES-2310C(security-mirror)# set 1 4 2-3 Publication date: Aug., 2010 Revision A5...
Page 223 <egress>: egress group port; range syntax: 1,5-7, available from 0 to 10 set ingress or egress to 0 as disabled Possible value: <ingress>: 0 to 10 <egress>: 0 to 10 Example: ES-2310C(security-restricted-group)# set 5 8-10 show Syntax: show Description: To display the current setting status of restricted group.
Page 224 ES-2310C User Manual snmp disable Syntax: disable set-community disable snmp Description: The Disable here is used for the de-activation of snmp or set-community. Argument: None. Possible value: None. Example: ES-2310C(snmp)# disable set-community ES-2310C(snmp)# disable snmp enable Syntax: enable set-community enable snmp Description: The Enable here is used for the activation snmp or set-community.
Page 225 Possible value: <trap number> : 1 to 6 <port> :1~65535 Example: ES-2310C(snmp)# set get-community public ES-2310C(snmp)# set set-community private ES-2310C(snmp)# set trap 1 192.168.1.1 162 public show Syntax: show Description: The Show here is to display the configuration of SNMP.
Page 226 ES-2310C User Manual MCheck Syntax: MCheck <range> Description: To force the port to transmit RST BPDUs. Argument: <range>: syntax 1,5-7, available from 1 to 10 Possible value: <range>: 1 to 10 Example: ES-2310C(stp)# Mcheck 1-8 disable Syntax: disable Description: To disable the function of STP.
Page 227 <path cost>: 0, 1-200000000. <priority> : 0 to 240 <edge_port> : yes / no <admin p2p>: auto / true / false Example: ES-2310C(stp)# set port 1-6 0 128 yes auto set version Syntax: set version <stp|rstp> Description: To set up the version of STP.
Page 228 ES-2310C User Manual show config Syntax: show config Description: To display the STP configuration data. Argument: None. Possible value: None. Example: ES-2310C(stp)# show config STP State Configuration : Spanning Tree Protocol : Enabled Bridge Priority (0-61440) : 61440 Hello Time (1-10 sec) Max.
Page 229 ES-2310C User Manual show status Syntax: show status Description: To display of the status of STP. Argument: None. Possible value: None. Example: ES-2310C(stp)# show status STP Status : STP State : Enabled Bridge ID : 00:40:C7:D8:09:1D Bridge Priority : 61440...
Page 230 Argument: <contact>:string length up to 40 characters. Possible value: <contact>: A, b, c, d, ... ,z and 1, 2, 3, …. etc. Example: ES-2310C(system)# set contact Taipei set device-name Syntax: set device-name <device-name> Description: To set the device name description of the switch.
Page 231 ES-2310C User Manual show Syntax: show Description: To display the basic information of the switch. Argument: None. Possible value: None. Example: ES-2310C(system)# show Model Name : ES-2310C System Description : 8 Fast Ethernet + 2 Gigabit L2 Managed Switch Location...
Page 232 To set up the IP address of tftp server. Argument: <ip>: the IP address of tftp server Possible value: <ip>: tftp server IP Example: ES-2310C(tftp)# set server 192.168.3.111 show Syntax: show Description: To display the information of tftp server. Argument: None.
Page 233 <HH> : (00-23) <mm> : (01-12) <dd> : (01-31) <hh> : (00-23) Example: ES-2310C(time)# set daylightsaving 3 10/12/01 11/12/01 set manual Syntax: set manual <YYYY/MM/DD> <hh:mm:ss> Description: To set up the current time manually. Argument: <YYYY> : Year (2000-2036) <MM>...
Page 234 To set up the current time via NTP server. Argument: <ip>: ntp server ip address or domain name <timezone>: time zone (GMT), range: -12 to +13 Possible value: <timezone>: -12,-11…,0,1…,13 Example: ES-2310C(time)# set ntp clock.via.net 8 Synchronizing...(1) Synchronization success show Syntax: show Description: To show the time configuration, including “Current Time”, “NTP Server”,”...
Page 235 To remove the trunk port. Argument: <port-range> : syntax 1,5-7, available from 1 to 10 Possible value: <port-range> : 1 to 10 Example: ES-2310C(trunk)# del trunk 1 set hash Syntax: set hash <method> Description: To set up trunk hash method.
Page 236 : set the LACP to passive mode Possible value: <port-range> : 1 to 10 <method>: static or lacp <group>: 1-3 <active LACP>: active or passive Example: ES-2310C(trunk)# set trunk 2-5 lacp 1 active show aggtr-view Syntax: show aggtr-view Description: To display the aggregator list. Argument: None.
Page 237 To display the detailed information of the LACP trunk group. Argument: <aggtr> : aggregator, available from 1 to 10 Possible value: <aggtr> : 1 to 10 Example: ES-2310C(trunk)# show lacp-detail 2 Aggregator 2 Information: Actor Partner --------------------------------- --------------------------------- System Priority...
Page 238 ES-2310C User Manual show status Syntax: show status Description: To display the aggregator status and the settings of each port. Argument: None. Possible value: None. Example: ES-2310C(trunk)# show status Trunk Port Setting Trunk Port Status ------------------------------------- ---------------------- port Method Group...
Page 239 Description: To delete the port-based vlan group. Argument: <name>: port-vlan name Possible value: <name>: port-vlan name Example: ES-2310C(vlan)# del port-group vlan-2 del tag-group Syntax: del tag-group <vid> Description: To delete the tag-based vlan group. Argument: <vid>: vlan ID, available from 1 to 4094 Possible value: <vid>: 1 to 4094...
Page 240 Argument: <port_range>: which port(s) you want not to drop untagged frames. Syntax: 1,5-7, available from 1 to 10 Possible value: <port_range>: 1 to 10 Example: ES-2310C(vlan)# disable drop-untag 2,4,5-7 disable svl Syntax: disable svl Description: To enable Independent VLAN Learning.
Page 241 Argument: <port_range>: which port(s) you want to drop untagged frames. Syntax: 1,5-7, available from 1 to 10 Possible value: <port_range>: 1 to 10 Example: ES-2310C(vlan)# enable drop-untag 2,4,5-7 enable svl Syntax: enable svl Description: To enable Shared VLAN Learning. Argument: None.
Page 242 To add or edit a port-based vlan group. Argument: <name>: port-vlan name <range>: vlan group members, syntax: 1,5-7, available from 1 to 10 Possible value: <range>: 1 to 10 Example: ES-2310C(vlan)# set port-group vlan-1 2-5,6-10 Publication date: Aug., 2010 Revision A5...
Page 243 0 as none of the ports are force untagged Possible value: <vid>: 1 to 4094 <member_range>: 1 to 10 <untag_range>: 0 to 10 Example: ES-2310C(vlan)# set tag-group 2 vlan-2 2-8 0 Publication date: Aug., 2010 Revision A5...
Page 244 ES-2310C User Manual show config Syntax: show config Description: To display the current vlan mode, Symmetric vlan, SVL and Double tag states. Argument: None. Possible value: None. Example: ES-2310C(vlan)# show config Current vlan mode:Tag-based vlan Global setting: Symmetric vlan : Disable (Asymmetric)
Page 245 ES-2310C User Manual show pvid Syntax: show pvid Description: To display pvid, priority and drop untag result. Argument: None. Possible value: None. Example: ES-2310C(vlan)# show pvid Port PVID Priority Drop Untag ------ ------ ---------- ------------ Disable Disable Disable Disable Disable...
Page 246 To enable the virtual stack. Argument: None. Possible value: None. Example: ES-2310C(vs)# enable set gid Syntax: set gid <gid> Description: To set the group id. Argument: <gid>: group ID Possible value: a-z,A-Z,0-9 <gid>: Example: ES-2310C(vs)# set gid group1 Publication date: Aug., 2010 Revision A5...
Page 247 Description: To set role. Argument: <master|slave>: master: act as master, slave : act as slave Possible value: <master|slave>: master or slave Example: ES-2310C(vs)# set role master show Syntax: show Description: To display the configuration of the virtual stack. Argument: None.
Page 248: Maintenance
ES-2310C User Manual 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty...
Page 249: Appendix A Technical Specifications
TP/SFP. • Supports 8-port 10/100M TP ports with Nway and auto MDIX function. • ES-2310C supports 2 Gigabit dual media ports(TP/SFP) and 2 slots for removable SFP module supporting 1000M SFP fiber module. • Supports on-line plug/unplug SFP transceiver modules.
Page 250 ES-2310C User Manual Hardware Specifications Standard Compliance: IEEE802.3ab / 802.3z / 802.3u / 802.3x 802.3z and 802.3ab compliant Gigabit Ethernet ports Network Interface of Option transceiver Configuration Mode Connector Port SFP.LC 2(Option) 1000FDX *LC M-M SFP.LC.SXX 2(Option) 1000FDX *LC S-M SFP.BL3(5).SXX...
Page 251 ES-2310C User Manual Diagnostic LED: System LED : Power CPURUN Per Port LED: 10/100M TP Port 1 to 8 : LINK/ACT/SPD, FDX/COL 1000M Fiber/TP Port 9,10 : LINK/ACT/SPD, SFP LNK Power Requirement AC Line Voltage 100∼240 V Frequency 50∼60 Hz Consumption 11.6W...
Page 252: Management Software Specifications
ES-2310C User Manual Management Software Specifications Auto-negotiation support on 10/100Base-TX ports, Web browser or console interface can set transmission speed (10/100Mbps) and System Configuration operation mode (Full/Half duplex) on each port, enable/disable any port, set VLAN group, set Trunk Connection.
Page 253: Appendix B Null Modem Cable Specifications
ES-2310C User Manual Appendix B Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable.
