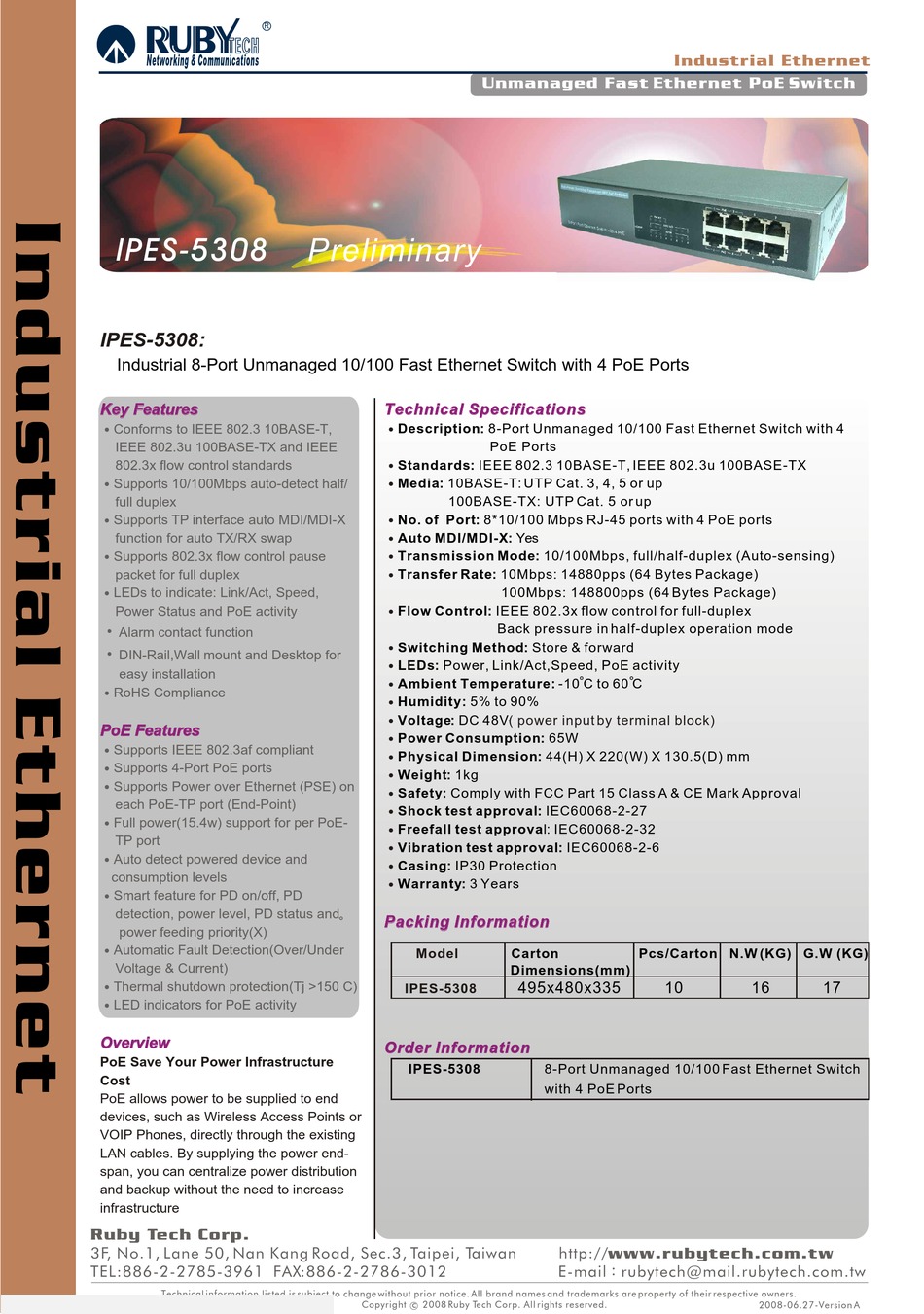

Ruby Tech IPES-5308 Technical Specifications

RUB
R
TECH
Networking & Communications
IPES-5308
IPES-5308:
Industrial 8-Port Unmanaged 10/100 Fast Ethernet Switch with 4 PoE Ports

Key Features

Key Features
Conforms to IEEE 802.3 10BASE-T,
IEEE 802.3u 100BASE-TX and IEEE
802.3x flow control standards
Supports 10/100Mbps auto-detect half/
full duplex
Supports TP interface auto MDI/MDI-X
function for auto TX/RX swap
Supports 802.3x flow control pause
packet for full duplex
LEDs to indicate: Link/Act, Speed,
Power Status and PoE activity
Alarm contact function
DIN-Rail,Wall mount and Desktop for
easy installation
RoHS Compliance

PoE Features

PoE Features
Supports IEEE 802.3af compliant
Supports 4-Port PoE ports
Supports Power over Ethernet (PSE) on
each PoE-TP port (End-Point)
Full power(15.4w) support for per PoE-
TP port
Auto detect powered device and
consumption levels
Smart feature for PD on/off, PD
detection, power level, PD status and
power feeding priority(X)
Automatic Fault Detection(Over/Under
Voltage & Current)
Thermal shutdown protection(Tj >150 C)
LED indicators for PoE activity

Overview

Overview
PoE Save Your Power Infrastructure
Cost
PoE allows power to be supplied to end
devices, such as Wireless Access Points or
VOIP Phones, directly through the existing
LAN cables. By supplying the power end-
span, you can centralize power distribution
and backup without the need to increase
infrastructure
Ruby Tech Corp.
3F, No.1, Lane 50, Nan Kang Road, Sec.3, Taipei, Taiwan
TEL:886-2-2785-3961 FAX:886-2-2786-3012
Technical information listed is subject to change without prior notice. All brand names and trademarks are property of their respective owners.
Unmanaged Fast Ethernet PoE Switch
Preliminary
Technical Specifications Technical Specifications
Description: 8-Port Unmanaged 10/100 Fast Ethernet Switch with 4
Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
Media: 10BASE-T: UTP Cat. 3, 4, 5 or up
100BASE-TX: UTP Cat. 5 or up
No. of Port: 8*10/100 Mbps RJ-45 ports with 4 PoE ports
Auto MDI/MDI-X: Yes
Transmission Mode: 10/100Mbps, full/half-duplex (Auto-sensing)
Transfer Rate: 10Mbps: 14880pps (64 Bytes Package)
Flow Control: IEEE 802.3x flow control for full-duplex
Switching Method: Store & forward
LEDs: Power, Link/Act,Speed, PoE activity
Ambient Temperature: -10 C to 60 C
Humidity: 5% to 90%
Voltage: DC 48V( power input by terminal block)
Power Consumption: 65W
Physical Dimension: 44(H) X 220(W) X 130.5(D) mm
Weight: 1kg
Safety: Comply with FCC Part 15 Class A & CE Mark Approval
Shock test approval: IEC60068-2-27
Freefall test approval: IEC60068-2-32
Vibration test approval: IEC60068-2-6
Casing: IP30 Protection
Warranty: 3 Years

Packing Information

Packing Information
Model
IPES-5308

Order Information

Order Information
IPES-5308
Copyright c 2008 Ruby Tech Corp. All rights reserved.
PoE Ports
100Mbps: 148800pps (64 Bytes Package)
Back pressure in half-duplex operation mode
Carton Pcs/Carton N.W (KG) G.W (KG)
Dimensions(mm)
495x480x335 10
8-Port Unmanaged 10/100 Fast Ethernet Switch
with 4 PoE Ports
http://www.rubytech.com.tw
E-mail rubytech@mail.rubytech.com.tw
Industrial Ethernet
16 17
2008-06.27-Version A
