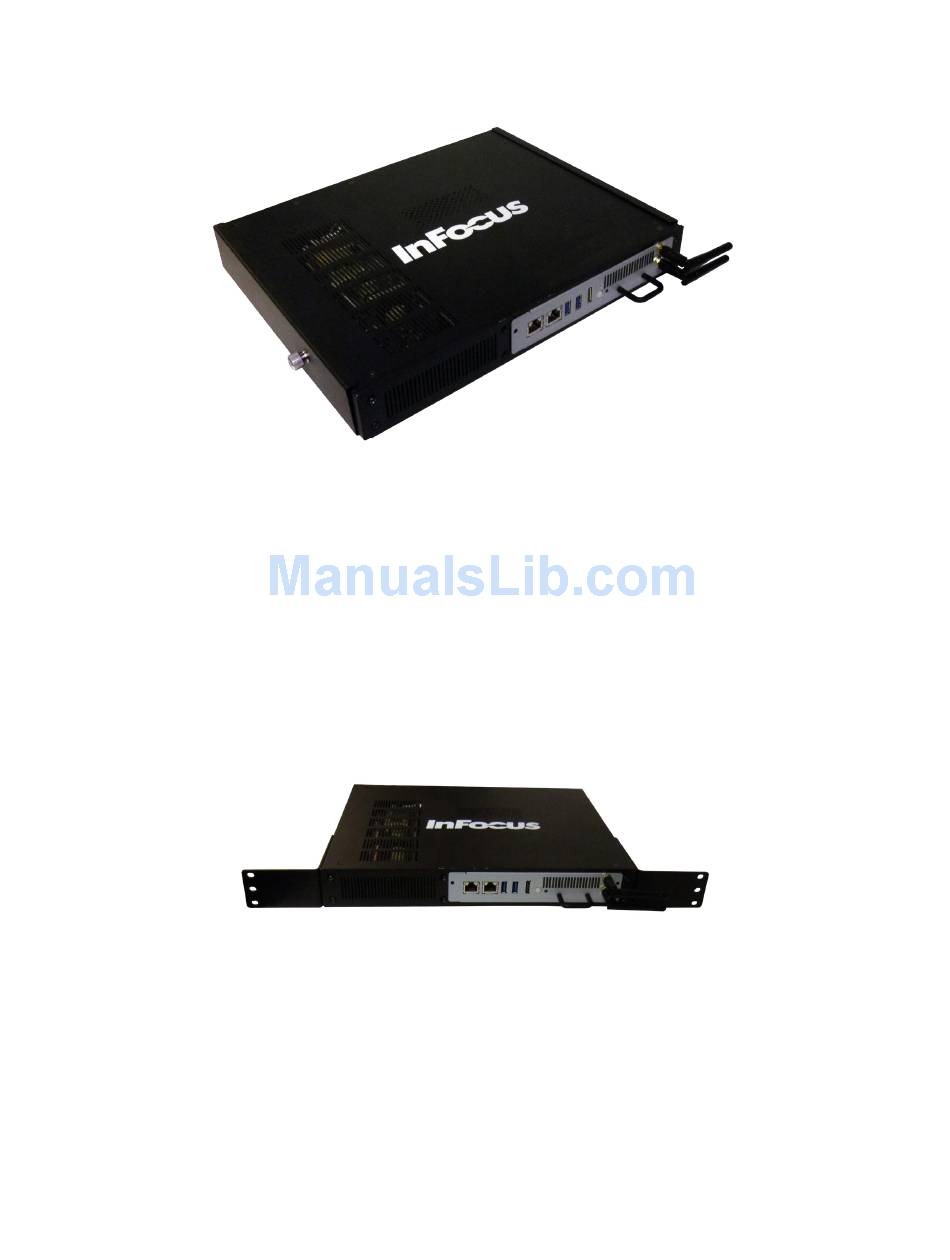

OPTIONAL BRACKET INSTALLATION
If desired, the MondoCenter can be installed on the back of a tablet or monitor.
1)
Refer to the tablet/monitor manufacturer user documentation for information on proper location and installation of the bracket.
2)
After installing the bracket, gently slide the MondoCenter, rear panel first, along the front-edge of the bracket.
force the MondoCenter into the bracket.
3)
Once the MondoCenter is installed properly, turn the thumb screws on either side of the bracket clockwise to lock the
MondoCenter into the bracket.
OPTIONAL EQUIPMENT RACK BRACKET INSTALLATION
If desired, the MondoCenter can be installed onto an equipment rack.
1)
Align the two equipment rack brackets against the front panel edges.
2)
Using the included screws, attach each bracket against the side of the MondoCenter. Do not overtighten the screws.
3)
After installing the brackets, gently slide the MondoCenter, rear panel in first, into the equipment rack.
4)
Using the screws from the equipment rack, attach each bracket to the equipment rack securely. Do not overtighten the screws.
MondoCenter3 Hardware Guide
NOTE:
Do not
Page 11
