Summary of Contents for InFocus MONDOCENTER 3

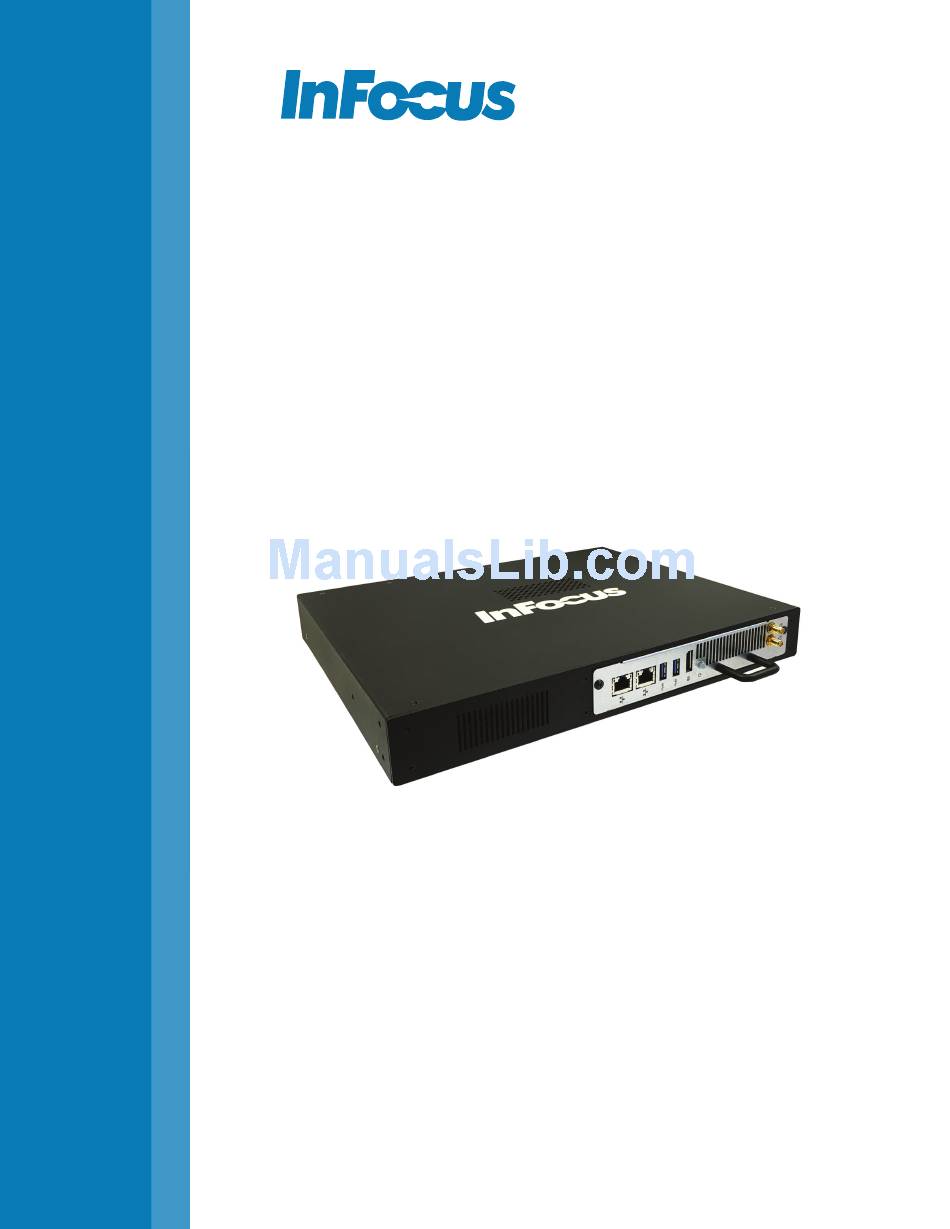

- Page 1 MONDOCENTER 3 Hardware Guide Regulatory model: INF-MCENTER2 009-1673-00...
-
Page 2: Table Of Contents
CONTENTS Declaration of Conformity ..........................................3 Safety Information ............................................6 What's Included ..............................................7 Connector Panel Identification ........................................8 Front Panel ..............................................8 Rear Panel..............................................8 Set up a Wireless Mouse and Keyboard ....................................9 Wireless Mouse ............................................9 Wireless Keyboard ..........................................10 Attach the Antennas............................................10 Optional Bracket Installation ........................................11 Optional Equipment Rack Bracket Installation .................................. -
Page 3: Declaration Of Conformity
TruVolume are trademarks of SRS Labs, Inc. TruSurround HD and TruVolume technologies are incorporated under license from SRS Labs, Inc. InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference. - Page 4 Operation of the equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by InFocus Corporation may void authority to operate the equipment.
-
Page 5: Mondocenter3 Hardware Guide
INFORMATION POUR LES DISPOSITIFS DE FRÉQUENCE RADIO SEULEMENT : Cet appareil est conforme à l’article 15 des réglementations de la FCC / CNR-210. Le fonctionnement est subordonné aux deux conditions suivantes : (1) ce appareil ne doit pas provoquer d’interférences nuisibles, et (2) ce appareil doit accepter toute interférence reçue, y compris des interférences qui peuvent provoquer un fonctionnemnent non désiré. -
Page 6: Safety Information
• Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own device can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. -
Page 7: What's Included
WHAT'S INCLUDED Keyboard and Mouse* MondoCenter including two (2) antennas Equipment Rack HDMI Cable Power Cord Mounting Bracket Brackets (2) (varies per country) NOTE: Quick Setup Guide (not shown) *Keyboard and mouse not included in all countries. For setup purposes, a keyboard and mouse are recommended. Any standard wired or wireless mouse or keyboard, connected through the MondoCenter USB ports, is supported by MondoCenter. -
Page 8: Connector Panel Identification
CONNECTOR PANEL IDENTIFICATION Front Panel Connector Description RJ45 network connectors (2) USB 3.0 connectors (2) DisplayPort Out connector Power button Wi-Fi External Antenna connectors (2) Rear Panel Connector Description USB 2.0 connectors (5) HDMI HDMI Out connector RS232 RS232 connector Audio Out connectors (2 - 3.5mm) Audio In connector (3.5mm) Page 8... -
Page 9: Set Up A Wireless Mouse And Keyboard
SET UP A WIRELESS MOUSE AND KEYBOARD This section only applies to the InFocus mouse and keyboard which ships to some countries. Refer to the manufacturer's documentation, if another mouse and keyboard are being used. Note: For initial setup and/or configuration, it may be easier to use a mouse and keyboard. Any standard wired or wireless mouse or keyboard, connected through the MondoCenter USB ports, is supported by MondoCenter. -
Page 10: Wireless Keyboard
Wireless Keyboard Turn the keyboard over and open the battery cover. Insert two (2) AAA batteries (not included) into the keyboard, by aligning the batteries' polarity and sliding them in place. Replace the cover. Press the CONNECT button and hold it for one second to allow the keyboard to bind with the dongle. Turn the keyboard right-side up. -
Page 11: Optional Bracket Installation
OPTIONAL BRACKET INSTALLATION If desired, the MondoCenter can be installed on the back of a tablet or monitor. Refer to the tablet/monitor manufacturer user documentation for information on proper location and installation of the bracket. NOTE: After installing the bracket, gently slide the MondoCenter, rear panel first, along the front-edge of the bracket. Do not force the MondoCenter into the bracket. -
Page 12: Cable Connection
CABLE CONNECTION Connect one end of an HDMI cable to the MondoCenter. NOTE: Connect the other end of the HDMI cable to the display device. Although the Mondopad software is optimized for use with a touch device, a mouse and keyboard can be used. Connect the power cord to the MondoCenter. -
Page 13: Turning The Mondocenter On/Off
TURNING THE MONDOCENTER ON/OFF • To turn the MondoCenter on: Verify that the power switch on the rear panel is in the ON position (a). Press the Power button on the MondoCenter (b). Wait a few seconds. • To put the MondoCenter into standby: Press power button (b). • To completely power down the MondoCenter: Press and hold the Power button for 4 seconds (b). -
Page 14: Troubleshooting
Verify the dongle is properly connected to the MondoCenter. Verify the button on the bottom of the remote is turned to ON. Replace the mouse batteries, making sure the orientation of the batteries is correct. For additional troubleshooting support, please contact: InFocus Corporation Technical Support 6am-5pm PST 877-388-8385 www.infocus.com/support... -
Page 15: Specifications
SPECIFICATIONS To read the latest specifications on the MondoCenter, be sure to visit our support website at www.infocus.com/support, as specifications are subject to change. Processor Intel® Core i7-6700T, Q170 chipset Memory 8GB (2 x 4GB) DDR4 Hard Drive 256GB SSD eSATA 2x 802.3 10/100/1000 Base-T with wake on LAN;...
