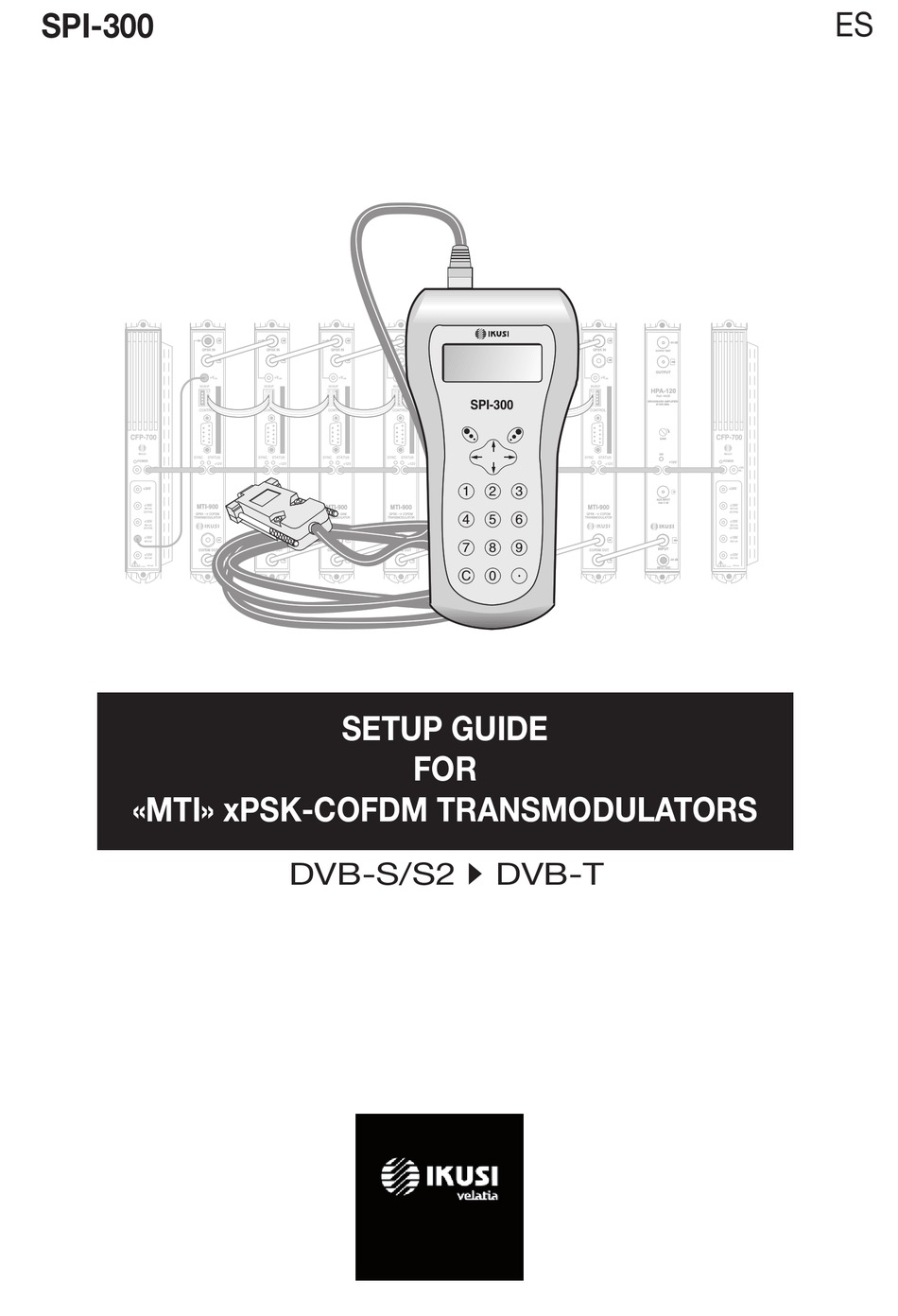

SETUP GUIDE
DVB-S/S2  DVB-T
QPSK IN
QPSK IN
QPSK IN
+V
+V
+V
LNB
LNB
LNB
IKUSUP
IKUSUP
IKUSUP
SPI-300
CONTROL
CONTROL
CONTROL
SYNC
STATUS
SYNC
STATUS
SYNC
STATUS
+12V
+12V
+12V
1
2
3
MTI-900
MTI-900
MTI-900
4
5
6
®
®
®
QPSK
COFDM
QPSK
COFDM
QPSK
COFDM
TRANSMODULATOR
TRANSMODULATOR
TRANSMODULATOR
7
8
9
COFDM OUT
COFDM OUT
COFDM OUT
C
0
FOR
-30 dB
QPSK IN
OUTPUT TEST
OUTPUT
+V
LNB
IKUSUP
HPA-120
Ref. 4426
BROADBAND AMPLIFIER
47-862 MHz
CONTROL
CFP-700
GAIN
ON
SYNC
STATUS
POWER
+12V
+12V
+12V
5A
+24V
AUX INPUT
Gain 5 dB
MTI-900
+18V
300 mA
(22 KHz)
®
QPSK
COFDM
TRANSMODULATOR
+13V
300 mA
(22 KHz)
+18V
300 mA
INPUT
COFDM OUT
+13V
300 mA
-20 dB
I
:700 mA
INPUT TEST
TOT (MAX)
ES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPI-300 and is the answer not in the manual?

Questions and answers

Related Manuals for IKUSI SPI-300

Summary of Contents for IKUSI SPI-300

  • Page 1 SPI-300 -30 dB QPSK IN QPSK IN QPSK IN QPSK IN QPSK IN QPSK IN QPSK IN OUTPUT TEST OUTPUT IKUSUP IKUSUP IKUSUP IKUSUP IKUSUP IKUSUP IKUSUP HPA-120 Ref. 4426 SPI-300 BROADBAND AMPLIFIER 47-862 MHz CONTROL CONTROL CONTROL CONTROL CONTROL...

  • Page 2: Table Of Contents

    Index ThE START SCREENS 1.1 - Module Basic Information ..............3 1.2 - Main Menus ..................3 General Menu ..................4 Settings Menu ..................5 Info Menu ..................... 6 Language Menu ................... 7 2 - PROGRAMMING SCREEN - SETTINGS 2.1 - Country ....................8 2.2 - Input .....................

  • Page 3: The Start Screens

    As explained in the Basic Handling guide supplied with the SPI-300, when you connect it to the module all data for identification, configura- tion and status of the module are loaded on the SPI-300. A detection screen appears for a short time, and next the display shows the Basic...

  • Page 4: Main Menus

    Programming the MTI Transmodulators 1.2 - Main Menus As explained in the Basic Handling guide (www.ikusi.tv), the General and Language menu is identical for all the ClassA modules. The Set- tings and Info menus include, however, options and information which are peculiar to each type of module.

  • Page 5: Settings Menu

    Save command. This menu is useful to quickly load repetitive data in multiple modules. • Save: Saves the module configuration in the memory of the SPI-300 remote. • Factory Reset: Restores all parameter values that were set up in the module when it left the factory •...

  • Page 6: Info Menu

    Programming the MTI Transmodulators • Output: This menu quickly accesses the output channel (default chan- nel 21) and attenuation in COFDM mode. • TS Processing : It must be selected to carry out the Transport Stream processing operations. • Conditional Access : Through this section, access to operator services reception of the encrypted signal is obtained.
  • Page 7 … Tmp : Internal temperature of the module. … CAM : Operating of the Conditional Access Module. Only MTI-900. … Code : This is a global alarms code that is useful when contacting IKUSI's technical support. Use the ALMSTOP command (key ) to stop the alarms information update.

  • Page 8: Language Menu

    Programming the MTI Transmodulators LANGUAGE Menu 1 General  English  2 Settings  French  3 Info  • Spanish  4Language   Italian   To change the language, press "4" on the numerical keypad. A list of languages appears. Place the slide on the wished line and press 2 - ThE SETTING SCREENS 1 General 1 Country...
  • Page 9 1.3 of the Basic Handling guide (www.ikusi.tv). ……Mode : It refers to the number of subcarriers of the output channel. Open the pick …...
  • Page 10 Programming the MTI Transmodulators Press the key . The third page of the Output Signal Parameters screen appears: The following data are selected: 7  AtTenua : IIIIIIIIIII 8 Inv. IQ : X 9 Cell ID : 6 5535 SEND    ……Attenuation : Is the attenuation for the COFDM channel output level. A slider bar is …...
  • Page 11 Programming the MTI Transmodulators Press the key . The fifth and last page of the Output Signal Parameters screen appears: l  FFT Wind : IIIIIIIIIII SEND    En esta ventana se introduce un dato de uso exclusivo en DVB-H: … FFT Window : This setting (fast Fourier transform window) is applicable when there is an adjacent analogue channel.
  • Page 12  Here you can do the following selections : ……Action : Open the list using the SEL command on your SPI-300. A list will appear … where we will choose the settings we want to perform with the next options: -Unblock Service : It must be selected to unblock a service in the "Select"...
  • Page 13 Programming the MTI Transmodulators option. When a CA is unblocked, the PIDs of the ECM and EMM are unblocked and the tables are updated. -Block Conditional Access : Idem to block a CA. ……Select : You must choose the service in which you want to apply the configuration …...
  • Page 14 Programming the MTI Transmodulators NOTE : If you enter the number "0" for the NID parameter, both the name and the NID of the output network will be the same as those of the input network. IMPORTANT : The "Net", "NID", "LCN Mode" and "Star.LCN" options are applicable only to the transmodulator that performs control function (last module at the right end of the IKUSUP bus cascade).
  • Page 15 2.5 - CONDITIONAL ACCESS: Available in the Settings menu. When you select a waiting screen appears first as an exchange of information between the module and the SPI-300 is developed. Then the Conditional Access screen, which provides various information about the card and contracted services appears.
