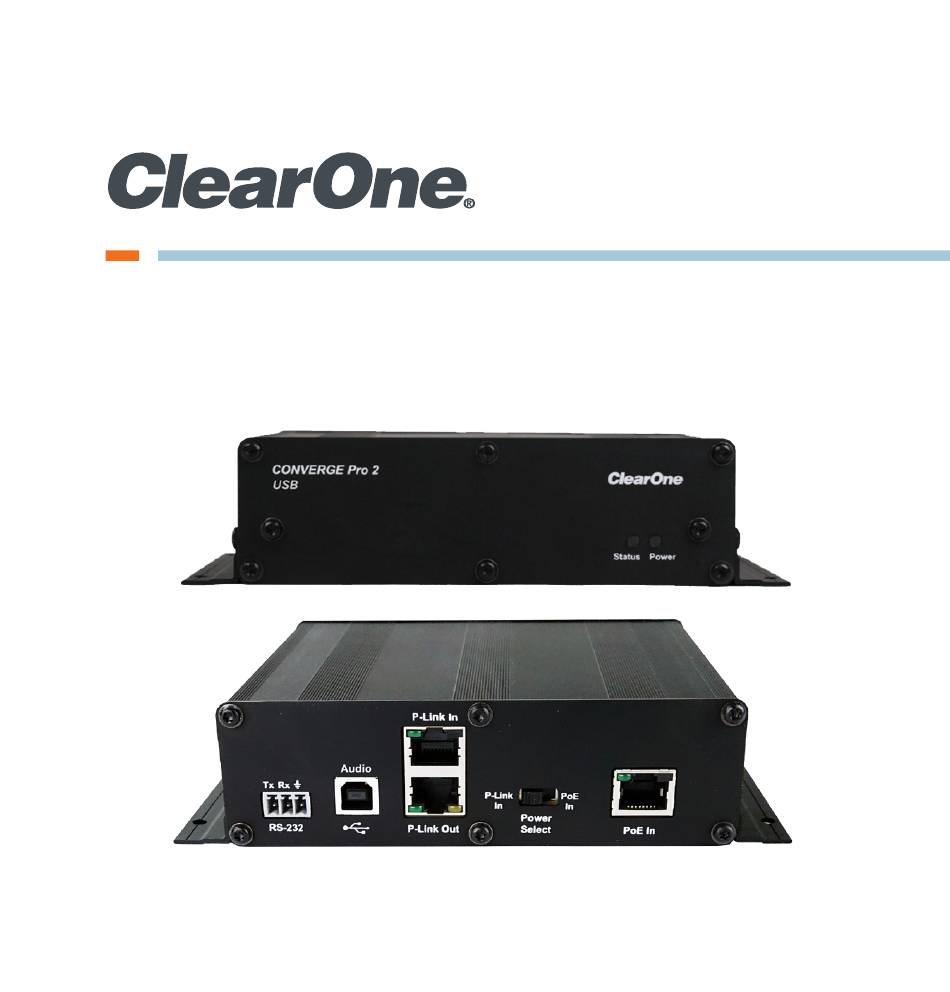

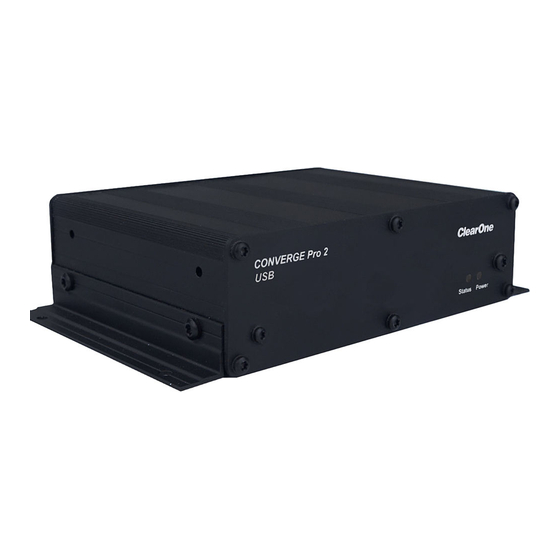

- Page 1 CONVERGE Pro 2 USB Expander unit ® A USB audio interface device for CONVERGE Pro 2 ® Quick-Start Guide...
-
Page 2: Table Of Contents
Table of Contents CONVERGE PRO 2 USB EXPANDER..........1 UNPACKING .................. 1 ................. 1 arts ncluded ................1 arts ncluded ................2 ools equIred QUICK-START OVERVIEW ............2 MOUNT THE USB EXPANDER ............3 ............... 3 helf ountIng .............. 4... -
Page 3: Converge Pro 2 Usb Expander
1 USB Cable, Type A to Type B, 6 Ft (1.8M) for USB (Audio) connection. Verify that all items have been received. If there is any issue, please contact your ClearOne representative. arts ncluded NOTE: Installer is responsible for ensuring CP2 expander is firmly attached to sturdy support that holds weight of expander unit and mounting hardware. -
Page 4: T Ools R Equired
CONVERGE PRO 2 USB EXPANDER The following parts are not included with the CP2 USB Expander: 4 Qty #6 or M3.5 screws 4 Qty Wall fasteners appropriate to the wall/ceiling material ools equIred The following tools are required to install the USB expander:... -
Page 5: Mount The Usb Expander
3) on the wall, 4) above the ceiling. Each mounting type is explained below. Mounting hardware is not provided. helf ountIng ClearOne offers a standard 1U rack shelf with 20lb (9kg) weight capacity. ClearOne 1U Rack Shelf (Part No. 910-6106-001) Determine location for rack shelf. -
Page 6: M Ounting U Nder T He T Able
CONVERGE PRO 2 USB EXPANDER Secure expander unit(s) to the rack shelf. You must supply your own hardware (four #6 or M3.5 screws) for securing the expander(s). Pre-installed Pre-installed Torx screws Torx screws Pre-installed mounting ear Pre-installed mounting ear ountIng... -
Page 7: M Ounting O N T He W All
QUICK-START GUIDE Align mounting holes on expander mounting ears with pilot holes. Insert four #6 or M3.5 screws and tighten. ountIng Mounting hardware is not provided. Select your own hardware based on your specific installation needs. Determine location for the mount. Using expander as a guide (and level if needed), mark four mounting hole locations with a pencil. -
Page 8: Connections
A laptop/PC/MAC, other audio devices, or VC codec with the Audio USB port via the Type A to Type B USB cable, • A remote control serial device (such as ClearOne’s Touch Panel Controller, or any 3 -party controller) with the RS232 port via the 3... -
Page 9: B Ack P Anel
QUICK-START GUIDE anel The CP2 USB Expander can be powered by a standard PoE injector, or a P-Link connection. Set the Power Select switch towards P-Link In or PoE In based on the power source. The P-Link In and Out ports enable you to connect with a CP2 unit or other P-Link devices. -
Page 10: F Ront P Anel
CONVERGE PRO 2 USB EXPANDER USB Expander Powered by P-Link P-Link Expander CAT5e / CAT6 cable Up to 200 Ft ront anel Power LED Off - not powered Solid Blue - powered Status LED Off - No P-Link plugged in... -
Page 11: Configure The Usb Expander
• Configure USB Transmit and Receive channel settings • Configure gating settings for microphones • View project file status • Send the configurations The steps in these processes are detailed in the CONVERGE Pro 2 CONSOLE User Manual at: http://www.clearone.com/resources#professional_audio... -
Page 12: Part Numbers
US & Canada TechSupport Tel: 801.975.7200 Tel: 801.974.3760 Toll Free: 800.945.7730 e-mail: tech.support@clearone.com Fax: 801.303.5711 International Tel: +1.801.975.7200 e-mail: global@clearone.com © 2017 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0039-001 Revision 1.0 May 2017...
