OAP FIC Module

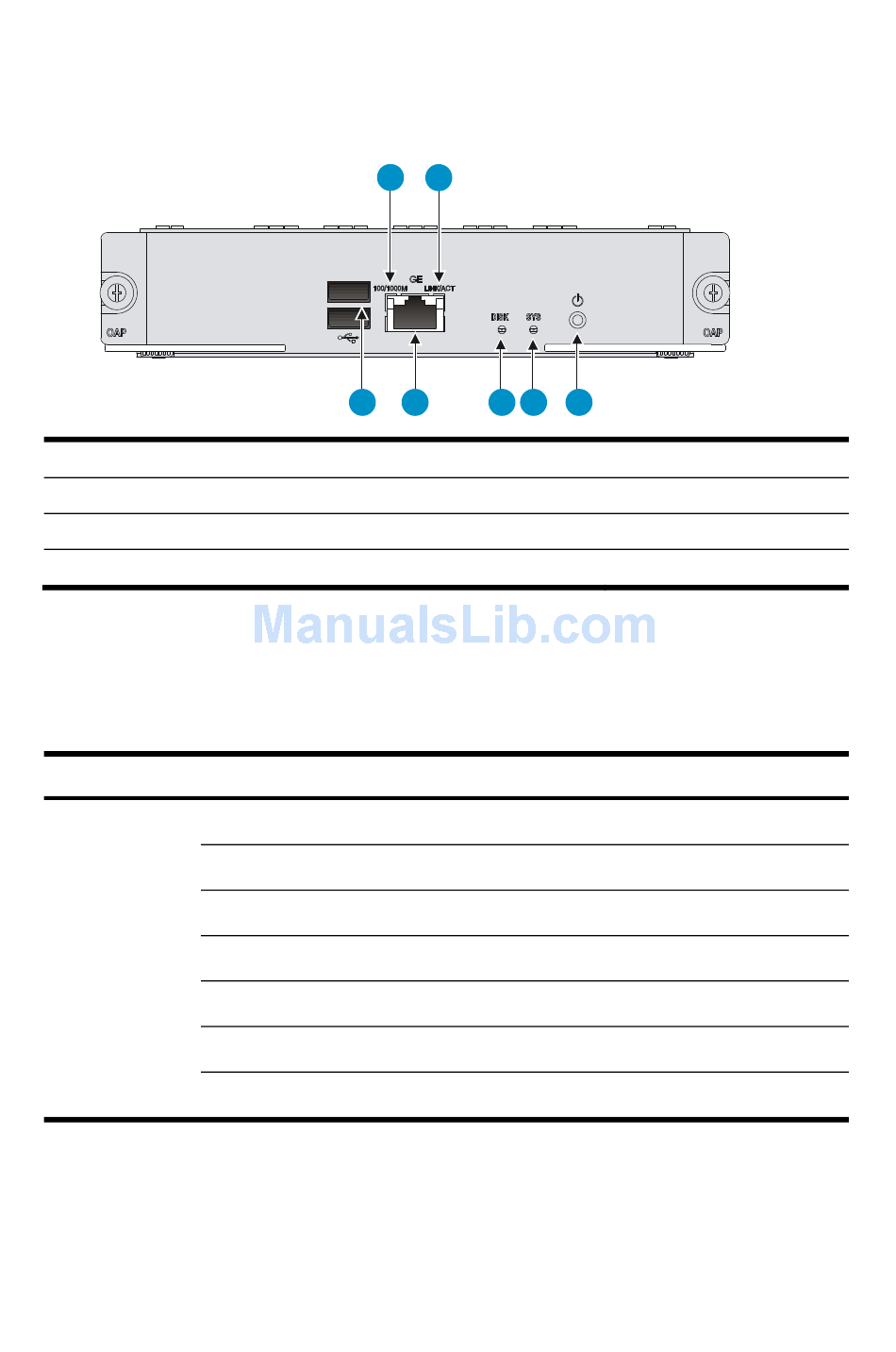

Figure 3 Front panel
(1) 100/1000Base-T Ethernet port LED
(2) LINK LED for the GigabitEthernet management port
(4) System status LED (SYS)
(6) GigabitEthernet management port
LEDs
Table 2 LED description
LED mark
SYS
1
7
Status
Steady green
Fast flashing (green)
Slow flashing (green)
Steady yellow
Fast flashing (yellow)
Slow flashing (yellow)
Off
2
6
5
4
3
Description
A memory test is being performed.
The BIOS is starting up.
The operating system is starting up.
Reserved.
The boot loader does not exist.
The memory test has failed.
The module is powered off.
3
(3) Stand By button
(5) Disk LED
(7) USB port
