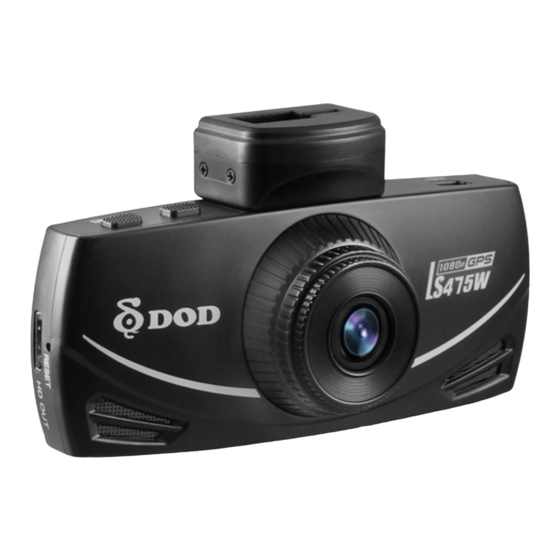

- Page 1 LS475W / LS475W+ User Manual...
-
Page 2: Table Of Contents
Getting Started ......................... 13 Installing Your Camera ....................16 Basic Camera Operation ....................18 Camera Modes ......................... 19 Camera Settings ......................21 System Settings ....................... 25 Transferring Files ......................28 Firmware Update ......................29 LS475W Specifications ....................30 LS475W+ Specifications ....................30... -
Page 3: Product Features
Please follow all traffic rules and drive safely. Parking Surveillance Ensure your peace of mind by recording continually even when you have parked and left your car. Record and lock a file if unusual shock or motion is detected. *DOD DP4 hardwiring kit required... - Page 4 4X storage compatibility compared to predecessor models, supports up to 128GB with more than 18 hours of recording. DOD GPS Player The DOD GPS Player generates 1080p video recordings with real-time driving data such as speed and location clearly at a glance. 145º Wide Angle of View Wide angle, wide view, without distortion.
-
Page 5: Loop Recording
Loop Recording When the storage space is full, it can automatically overwrite the unprotected files. Path Analysis Calculate the distance, time and average speed of your journey from location A to B. It´s a very economical and practical way to save your time and fuel consumption. -
Page 6: Safety Precautions
The battery in the device self-discharges naturally over time whether the battery is used or not. Charge the dash camera for 5 minutes with the supplied DOD power cord if you are unable to turn on the camera. -
Page 7: Package Contents
Package Contents Dash Cam User Guide Bracket Car Power Adaptor [LS475W+] Note: Supplied accessories may vary by region. -
Page 8: Optional Accessories
Optional Accessories DA2S DA2S Suction Savior provides a DP4 hardwiring kit offers constant long lasting adhesion to suction source and prevent battery drain cups. with low-voltage protection. -
Page 9: Camera Controls
When in stand by (not recording): Press to switch between recording and playback mode. Power Button ON/OFF【 】 ● Turns unit on/off Micro USB Port【 】 ● For use with the supplied DOD Car Power Adaptor or USB data cable. - Page 10 Camera Controls LS475W LS475W+ Speaker ●...
- Page 11 Camera Controls LS475W LS475W+ Micro SD Slot ● Requires a micro SDHC/SDXC card, class 10 or above. Supports up to 128GB. HDMI Output Slot ● Outputs live view or recorded files to external display. *Recording function is disabled while HDMI output is connected.
- Page 12 Camera Controls LS475W LS475W+ Arrow Keys【/】 ● Standby Mode: Used to navigate through menus and select videos for playback. Recording Mode: Press【】to capture snap shot of current recording. Press【】to change notification/alert volume. SOS Emergency File Lock【 】 ● While recording, press this button to lock the current recording file and protect it from being over written.
- Page 13 Camera Controls Menu / Return【 】 ● When not recording, press to access menus, or to exit sub menu. Press 【 】once for recording options. Press 【 】twice for system options. * Recording must be stopped before accessing menus. OK / REC【 】...
-
Page 14: Getting Started
Memory card must be in FAT32 format to function properly. Card slot is directional and may be damaged if SD card is inserted incorrectly. To save recorded videos stably, DOD Tech recommends formatting your SD card every two weeks from in the camera Note: After formatting the SD card, all of your data will be deleted. - Page 15 Note: In specified cars, the power may be constantly supplied to the device even when the engine is turned off. This may drain the vehicle battery. The optional DOD DP4 kit equipped with low-voltage protection and is designed to prevent battery drainage.
- Page 16 Getting Started 4. Turn on/off Your Camera Manually. Press【 】to turn on or turn off the unit manually. *The Dash Cam will turn on and off automatically with the power supply from your vehicle. 5. Select Language➔Set the Time Zone➔Select the Speed Unit of Your Choice Upon powering up the camera for the first time or after upgrading the firmware on the device, you will need to go through and input the Settings below.
-
Page 17: Installing Your Camera
Installing Your Camera... - Page 18 6. Remove the Lens Protector Film Your camera is now installed and ready for daily use. Note: Always use the supplied DOD car power adaptor to avoid the unexpected damage. If grease, fingerprints, or blots are found on the external/internal windshield of the car, please wipe it clean or replace the windshield.
-
Page 19: Basic Camera Operation
Continuously powered electrical outlet allows the camera to capture videos while you are away but it will result in vehicle battery drainage and may eventually prevent your car from starting. DOD Tech recommend to use DP4 power kit for needs of parking surveillance. -
Page 20: Camera Modes
Camera Modes Standby Mode: Press【 】to switch in between Video Recording and Playback Mode. Press 【 /OK】to stop recording before pressing 【 】to switch modes. 1.Recording Mode ISO Sensitivity Memory Card Status Power Status Date File-Lock Indicator Current Time Exposure Value Recording Time Record Audio (On/Off) GPS Status... -
Page 21: Playback Mode
Camera Modes 2.Playback Mode You can watch previously recorded videos in Playback Mode. Press【 】to switch into the Playback Mode when unit is not recording. Play the Video Press【/】to choose file. Press【 】to play or pause. While playing video, press【/】to forwards/backwards. ... -
Page 22: Camera Settings
Camera Settings Each mode has a unique set of settings. See the description below. Two Camera Settings menus are accessible: Functional Settings System Settings The menu settings can be switched by pressing【 】. If you move the cursor before pressing 【 】... - Page 23 Note: Parking Surveillance requires consistent power supply via vehicle battery. (It is recommended to use optional DOD DP4 kit equipped with low-voltage protection design to prevent battery drainage. Please ensure to enable G-sensor function in setting menu before switch to Parking Surveillance.
- Page 24 Camera Settings ISO Stamp Imprints ISO value (light sensitivity value) on the video file. On/Off Default: On. Set Time Zone Sets the current time zone for GPS time and date auto calibration. Note the time zone must be manually adjusted for daylight savings Speed Units Select metric or imperial units.
- Page 25 Camera Settings Speed Stamp Imprinting speed in video footages. This can be turned on/off. Time-Lapse The time-lapse function is used to create a sped-up video. When set, the camera will record one frame every 200ms (milliseconds)/500ms/1 second/5 seconds. Default: Off. Note: Time-Lapse cannot work with Parking Surveillance, this function will automatically turn off when Parking Surveillance is enabled.
-
Page 26: System Settings
Format Memory Card Completely deletes all files including locked footage from the SD card and optimizes the card for recording. DOD Tech suggest formatting via the menu every two weeks to ensure proper SD card functionality. Factory Reset Reverts all settings back to the original factory default. - Page 27 Play on DOD Player Please transfer the video files to your electronic device for smooth viewing and or storage. The DOD Video Player is a user-friendly program to playback videos and to visualize your position and speed on your PC or Mac.
- Page 28 Play on DOD Player Open Video Files Add your file to the list of videos: Click “File”, click “Open”, and navigate to the location of your files. Press the “ADD” button located below the list of videos. Video Player Features Once the video is playing, your position, speed and G-Force will be displayed at the bottom of the player window.
-
Page 29: Transferring Files
Transferring Files Video files can be transferred to your electronic device for viewing and storage. USB Cable 1. Connect a USB cable from the camera’s USB port to computer. 2. Camera will automatically turn on and should show “Mass Storage” on display. 3. -
Page 30: Firmware Update
DOD is NOT responsible for the loss of any recorded video during operation due to unexpected factors or force majeure when driving. -
Page 31: Ls475W Specifications
LS475W Specifications Video Resolution 1920x1080@60fps Sensor SONY STARVIS CMOS sensor Wide-Angle Lens 145° Aperture f/1.6 ISO Sensitivity up to ISO 12800 Display 2.7" 16:9 TFT LCD Video Format H.264 MOV Recording Media micro SDHC/SDXC Card (Up to 128GB) Audio Mic and Speaker(Mono)Equipped Battery 3.7V 180mAh Lithium Battery... - Page 32 Copyright ©2017 DOD Tech All Rights Reserved Under the copyright laws, this manual may not be copied, in any way, shape, or form, without the written consent of DOD Tech.
