Summary of Contents for Marmitek AMM31

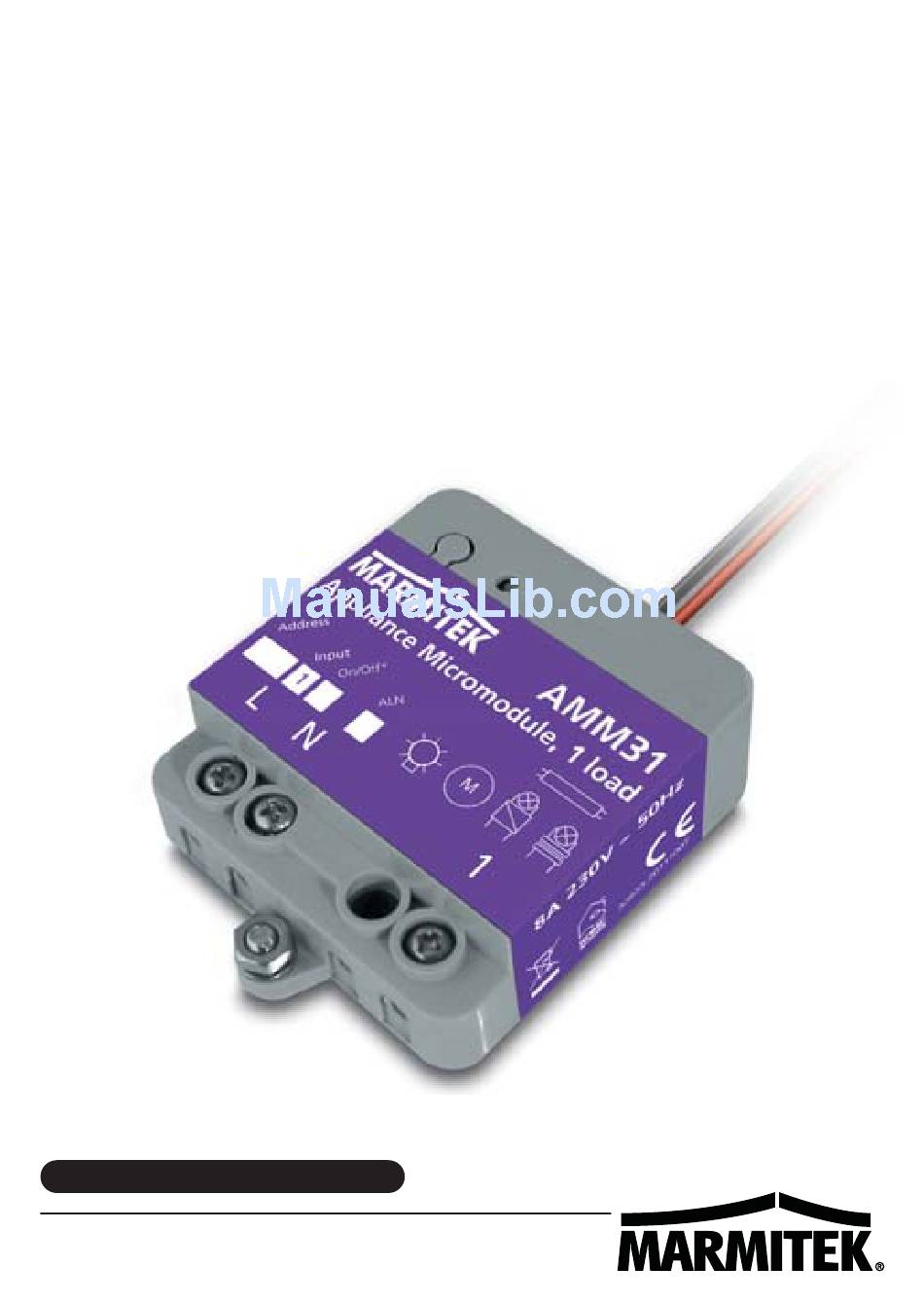

- Page 1 AMM31 AMM31 ™ Appliance Micromodule, 1 load USER MANUAL ™ 20396/20111018 • AMM31 ALL RIGHTS RESERVED MARMITEK ©...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS............2 SAFETY WARNINGS ............3 HOW DOES MARMITEK X-10 WORK? ......4 ADRESSES ................. 4 SIGNAL RANGE ..............5 ONE-LOAD APPLIANCE MICRO MODULE....... 7 FUNCTIONS ..............7 INSTALLATION ..............9 PROGRAMMING............10 FREQENTLY ASKED QUESTIONS ........11 TECHNICAL DATA ............ -
Page 4: Safety Warnings
In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek... -
Page 5: How Does Marmitek X-10 Work
HOW DOES MARMITEK X-10 WORK? Marmitek X-10 components use the existing mains wiring to communicate (using Marmitek X-10 signals). You can build a complete system using the three different kind of components of the Marmitek X-10 System: 1. Modules: These components will receive Marmitek X-10 signals and will switch or dim the attached lamp or appliance. -
Page 6: Signal Range
FD10’s. 2. It is possible that Marmitek X-10 signals are attenuated by devices and lights which are connected to the power line. In a normal home situation this effect is negligible (the Marmitek X-10 system is using active gain control to eliminate the effects). - Page 7 TALK mode (continuous transmission). When these kind of signals are present on the power line it is possible that the Marmitek X-10 signals will not come through. 5. The mains do not stop at the front door of your home.
-
Page 8: One-Load Appliance Micro Module
• Can be used in combination with ‘designer’ switching material. • Operation of the unit with Marmitek X-10 Commands takes place via the mains wires, which means no extra wiring is necessary. • Controllable from a distance with the Marmitek X-10 commands On/Off. - Page 9 The lights and appliances connected to the MicroModule can be controlled by the Marmitek X-10 system. You will be able to use your switch in the normal way. The MicroModule uses one-way X-10 communication. • Remote and local control On and Off •...
-
Page 10: Installation
For more information see chapter “Programming”. • Install the wall switch at its original place after the MicroModule is programmed. • Please note: due to heat generation, apply no more than one module per flush socket / central socket! AMM31... -
Page 11: Programming
SWITCH PRIOR TO PROGRAMMING. Programming the address and the optional function All Lights On: The factory setting for the AMM31 is to address A1 and no response to the optional function All Lights On. Unlike most Marmitek X-10 Modules the AMM31 does not have code wheels. -
Page 12: Freqently Asked Questions
What is the reason for modules to switch on/off spontaneously? It is possible that a Marmitek X-10 System is installed at one of your neighbours using the same House Code. To solve this problem try to change the House Code of your system, or have FD10 Phase Coupler/Filter installed at your incoming mains. - Page 13 The Transceivers will wait for a quite power line before transmitting their data. To prevent your Marmitek X-10 System to become slow or to prevent dimming from becoming less smooth, make sure that the transceiver units are placed as far away from each other as possible.
-
Page 14: Technical Data
1 meter between the micro module and the switch Ambient temperature: -10°C tot +50°C (Operation) Dimensions: 43.25mm x 47mm x 18.9mm Specifications may be modified without prior notice. AMM31... - Page 15 For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product. © MARMITEK...
-
Page 16: Declaration Of Conformity
DECLARATION OF CONFORMITY Hereby, Marmitek BV, declares that this AMM31 is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2004/108/ec of the european parliament and of the council of 15 December 2004 on the approximation of... -
Page 17: Copyrights
COPYRIGHTS Marmitek is a trademark of Pattitude B.V. ׀AMM31™ is a trademark of Marmitek B.V. All rights reserved. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. - Page 18 AMM31...
- Page 19 © MARMITEK...
