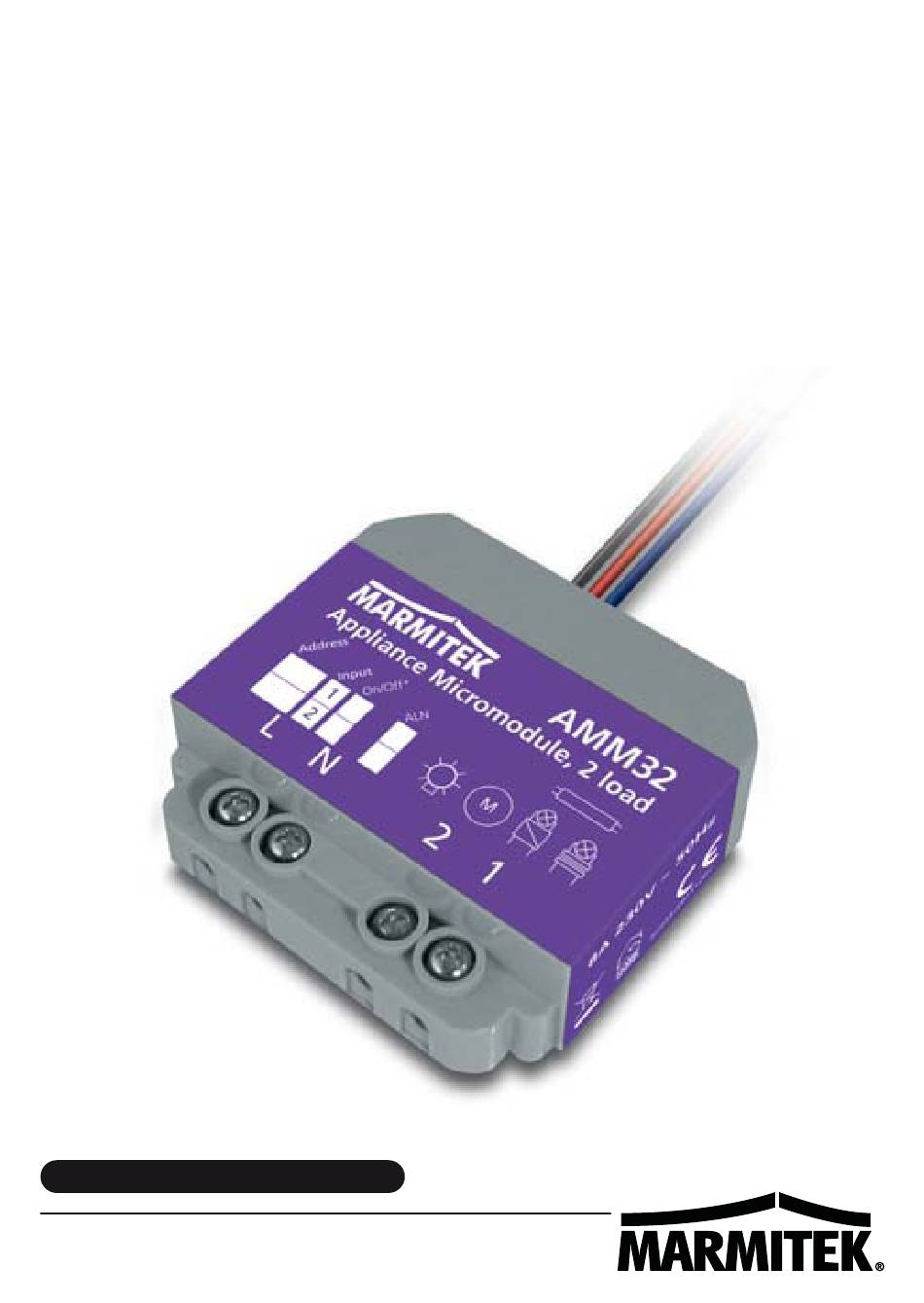

- Page 1 AMM32 AMM32 ™ Appliance Micromodule, 2 load USER MANUAL 20402/20120119 • AMM32 ™ ALL RIGHTS RESERVED MARMITEK ©...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS............2 SAFETY WARNINGS ............3 HOW DOES MARMITEK X-10 WORK? ......4 ADRESSES ................. 4 SIGNAL RANGE ..............5 TWO-LOAD APPLIANCE MICRO MODULE...... 7 FUNCTIONS ..............7 INSTALLATION ..............8 PROGRAMMING.............. 9 FREQENTLY ASKED QUESTIONS ........10 TECHNICAL DATA ............ -
Page 4: Safety Warnings
In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek... -
Page 5: How Does Marmitek X-10 Work
HOW DOES MARMITEK X-10 WORK? Marmitek X-10 components use the existing mains wiring to communicate (using Marmitek X-10 signals). You can build a complete system using the three different kind of components of the Marmitek X-10 System: 1. Modules: These components will receive Marmitek X-10 signals and will switch or dim the attached lamp or appliance. -
Page 6: Signal Range
FD10’s. 2. It is possible that Marmitek X-10 signals are attenuated by devices and lights which are connected to the power line. In a normal home situation this effect is negligible (the Marmitek X-10 system is using active gain control to eliminate the effects). - Page 7 TALK mode (continuous transmission). When these kind of signals are present on the power line it is possible that the Marmitek X-10 signals will not come through. 5. The mains do not stop at the front door of your home.
-
Page 8: Two-Load Appliance Micro Module
• Can be used in combination with ‘designer’ switching material. • Operation of the unit with Marmitek X-10 Commands takes place via the mains wires, which means no extra wiring is necessary. • Controllable from a distance with the Marmitek X-10 commands On/Off. -
Page 9: Installation
10 appliance module which can be fitted behind any installed switch or outlet. The lights and appliances connected to the MicroModule can be controlled by the Marmitek X-10 system. You will be able to use your switch in the normal way. The MicroModule uses one-way X-10 communication. -
Page 10: Programming
Lights On: The factory setting for the AMM31 is to address A1 and no response to the optional function All Lights On. Unlike most Marmitek X-10 Modules the AMM31 does not have code wheels. To change the address and the optional setting for the All Lights On function, the module needs to be set to the program mode. -
Page 11: Freqently Asked Questions
What is the reason for modules to switch on/off spontaneously? It is possible that a Marmitek X-10 System is installed at one of your neighbours using the same House Code. To solve this problem try to change the House Code of your system, or have FD10 Phase Coupler/Filter installed at your incoming mains. -
Page 12: Technical Data
TECHNICAL DATA Supply voltage: 230VAC +10% -10% 50 Hz Power Consumption < 1W Making capacity: 1800W for resistive (ohm) load 300W for inductive/capacitive load 1100W for light bulbs and halogen lighting Control Load QTY: Dimmable: Signal sensitivity: better than 25 mVpp at 120 kHz X-10 Key codes to respond to: All units Off, All Lights On, On, Off X-10 All Lights ON by set Input switch:... - Page 13 For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product. © MARMITEK...
-
Page 14: Declaration Of Conformity
Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment MARMITEK BV – P.O. BOX 4257 - 5604 EG EINDHOVEN – THE NETHERLANDS AMM31... -
Page 15: Copyrights
COPYRIGHTS Marmitek is a trademark of Pattitude B.V. ׀AMM32™ is a trademark of Marmitek B.V. All rights reserved. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. - Page 16 AMM31...
- Page 17 © MARMITEK...
- Page 18 AMM31...
- Page 19 © MARMITEK...
