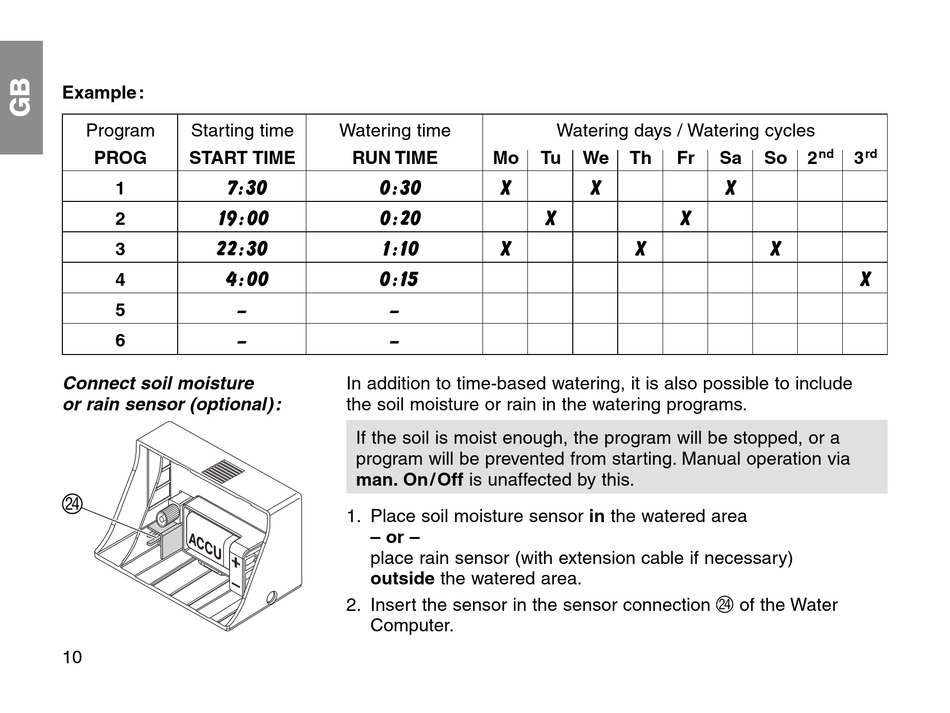

Example :
Program Starting time
PROG START TIME
7: 30
1
19 : 00
2
22 : 30
3
4 : 00
4
–
5
–
6
Connect soil moisture
or rain sensor (optional) :
N
10
Watering time
RUN TIME Mo
0 : 30 X
0 : 20
1 : 10 X
0 : 15
–
–
In addition to time-based watering, it is also possible to include
the soil moisture or rain in the watering programs.
If the soil is moist enough, the program will be stopped, or a
program will be prevented from starting. Manual operation via
man. On / Off is unaffected by this.
1. Place soil moisture sensor in the watered area
– or –
place rain sensor (with extension cable if necessary)
outside the watered area.
2. Insert the sensor in the sensor connection
Computer.
Watering days / Watering cycles
Tu We Th Fr Sa
X
X X
X
N
nd rd
So 2 3
X
X
X
of the Water
