Summary of Contents for Triax TSS 400 SAT

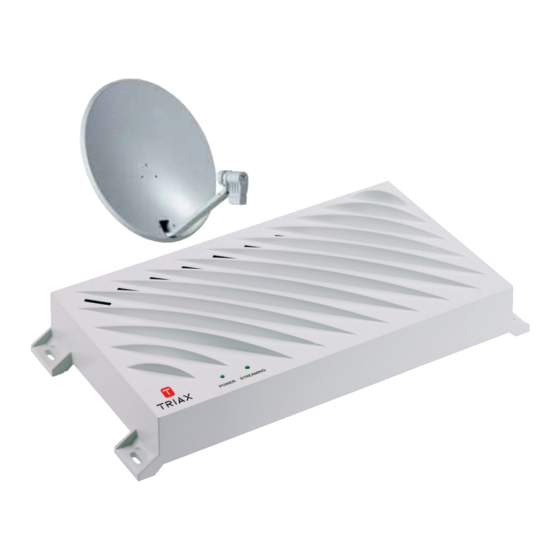

- Page 1 Quick starting guide TSS 400 SAT>IP Converter Model Item no. TSS 400 SAT>IP Converter triax.com Version 310101A 10 - 2012...
-
Page 2: Safety Instructions
Safete instruction Safety instructions Read the safety instructions carefully before using the converter operating. Follow all warnings and information on the device and in the manual. Basic Safety Information Electrical Connection In case of malfunction, disconnect the converter from the power source. ... -
Page 3: Network Setting
Content Check the delivery after purchase. Pos. Description Converter Power supply Quick starting guide User Manual (not shown) General With this SAT>IP converter, you can receive unencrypted (free-to-air) digital satellite (DVB-S and DVB-S2) channels. Different satellite FTA live channels (DVB-S and DVB-S2) can be sent out to up to 4 connected users simultaneously. -
Page 4: Product Description
Product description Connect your SAT>IP Converter Product description Converter top side ①. DC in (12V / 3A) ②. Power Switch On/Off ③. Reset to Default Button ④. Ethernet (10 / 100 / Giga) ⑤. USB 1.1 / 2.0 ⑥. RF4 (F-type connector, support DVB-S/S2 and 950 ~ 2150MHz), connect to Horizontal High H/H (18V/22KHz) port from Quattro LNB, or any port from Quad LNB. - Page 5 Connect your SAT>IP converter Connect your converter via a coaxial cable to the antenna LNB and via Network cable to your WLAN router All cables are not supplied with this package. Attention! Connect the converter to the mains when you have connected it to all equipment and the antenna. Otherwise, the converter may be damaged.
-
Page 6: Technical Data
Technical data Technical Data Hardware Feature • Platform: STi7108: 2200 DMIPS • Flash: 1 MB NOR Flash / 128 MB NAND Flash • RAM: 512 MB DDR3 1066 Mhz • Interface: – 4 x DVB-S/S2 Tuners/Demodulators – 10/100/Gigabit Ethernet – USB 2.0 Host for Software Upgrade Software Feature •... -
Page 7: Your Notes
Your notes... -
Page 8: Declaration Of Conformity
- your ultimate connection 10 - 2012 Copyright © 2016 TRIAX. All rights reserved. The TRIAX Logo and TRIAX, TRIAX Multimedia are registered trademarks or trademarks of the TRIAX Company or its affiliates. - your ultimate connection 10 - 2012 All specifications in this guide are subject to change without further notice.
