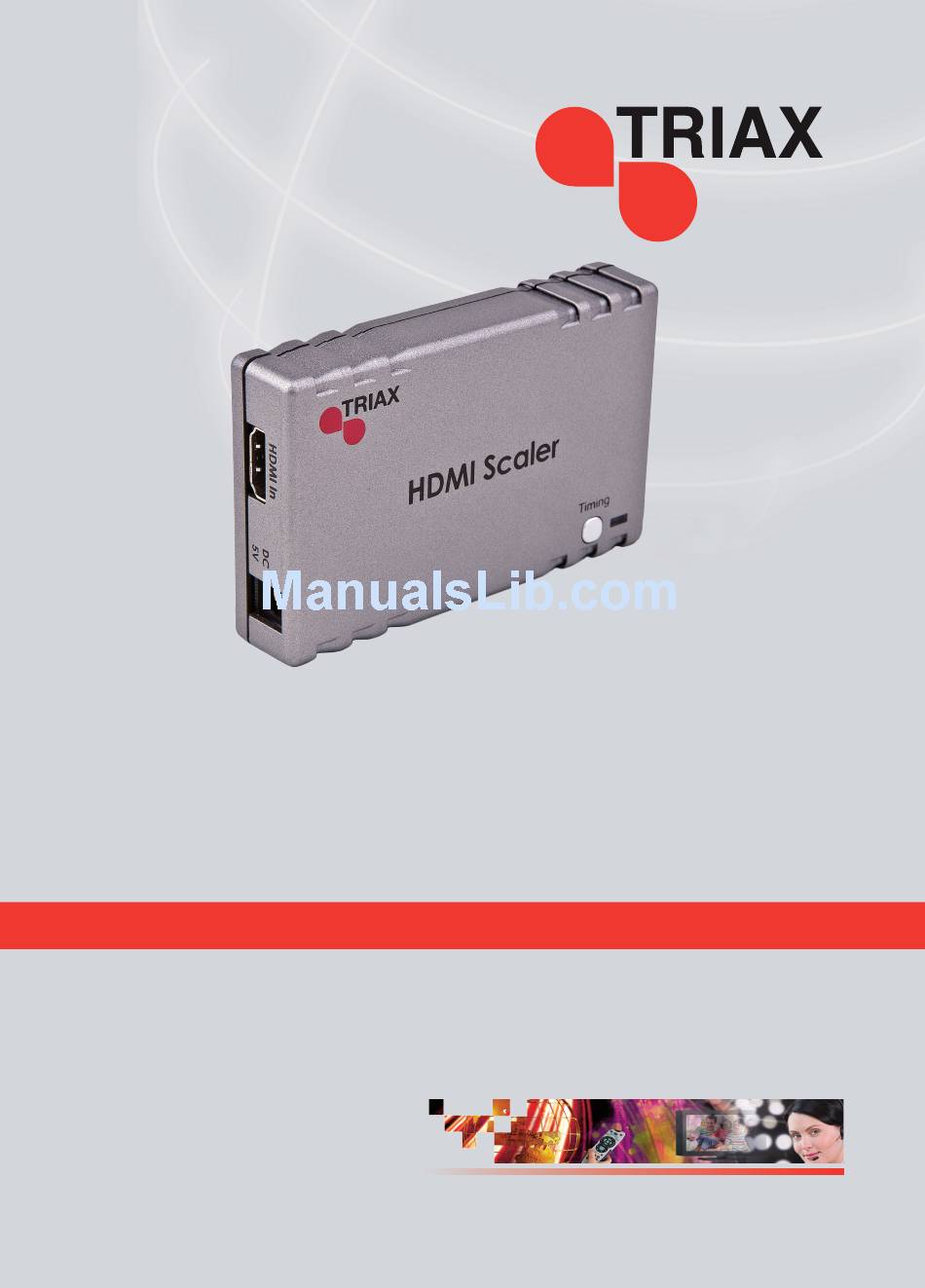

- Page 1 HMX Scaler HDMI to HDMI Resolution Scaler Part No. 310010 Operating Manual TRIAX - your ultimate connection...
-
Page 2: Table Of Contents
The examples used throughout this manual are based on the HMX Scaler. Dear Triax customer Thank you for purchasing the TRIAX HMX Scaler To ensure safety and many years of trouble-free operation, please read the Important Safety Precautions carefully before using this product. -
Page 3: Safety Precautions
Important Safety Precautions • Cleaning - Unplug the AC power from the mains supply before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product, do not use a chemical cloth to clean it. -
Page 4: Introduction
Introduction The HMX Scaler is design to display your HD pictures on an HDTV. It can upscale the HDMI input sources to HDMI output for wide-range of HD resolutions; the supported resolutions are XGA/UXGA/720p/1080p/1366 x 768/1440 x 900/1400 x 1050. The unit provides the user with a variety of output resolutions in order to give you the best picture quality. -
Page 5: Hardware Description And Panel Overview
Hardware Description and Panels Overview HDMI IN: This slot is where you plug your input source equipment with HDMI cable for source signal sending. DC 5V: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet. -
Page 6: Connection And Installation
Connection and Installation DVD / BluRay Laptop / PC Set Top Box HDTV / LCD Monitor... -
Page 7: Specifications
Specifications TMDS Clock Frequency 225MHz Input Port 1 x HDMI Output Port 1 x HDMI Power Supply 5V/1A DC (US/EU Standards, CE/FCC/UL certified) Dimensions (mm) 114 (W) x 65 (D) x 26 (H) Weight (g) Chassis Material Plastic Silkscreen Colour Black Power Consumption 2.7W... - Page 8 Issue 2 *Triax reserves the right to change the specifications without prior notification...
