TEoC Rx+
Quick User Guide
A. Contents:
This document outlines the basic functionality of the TEoC Rx+.
•
Connections
•
Front and Rear panel configuration
•
How to Pair and Unpair
•
How to Reset the Controller and Receiver
•
Web GUI access

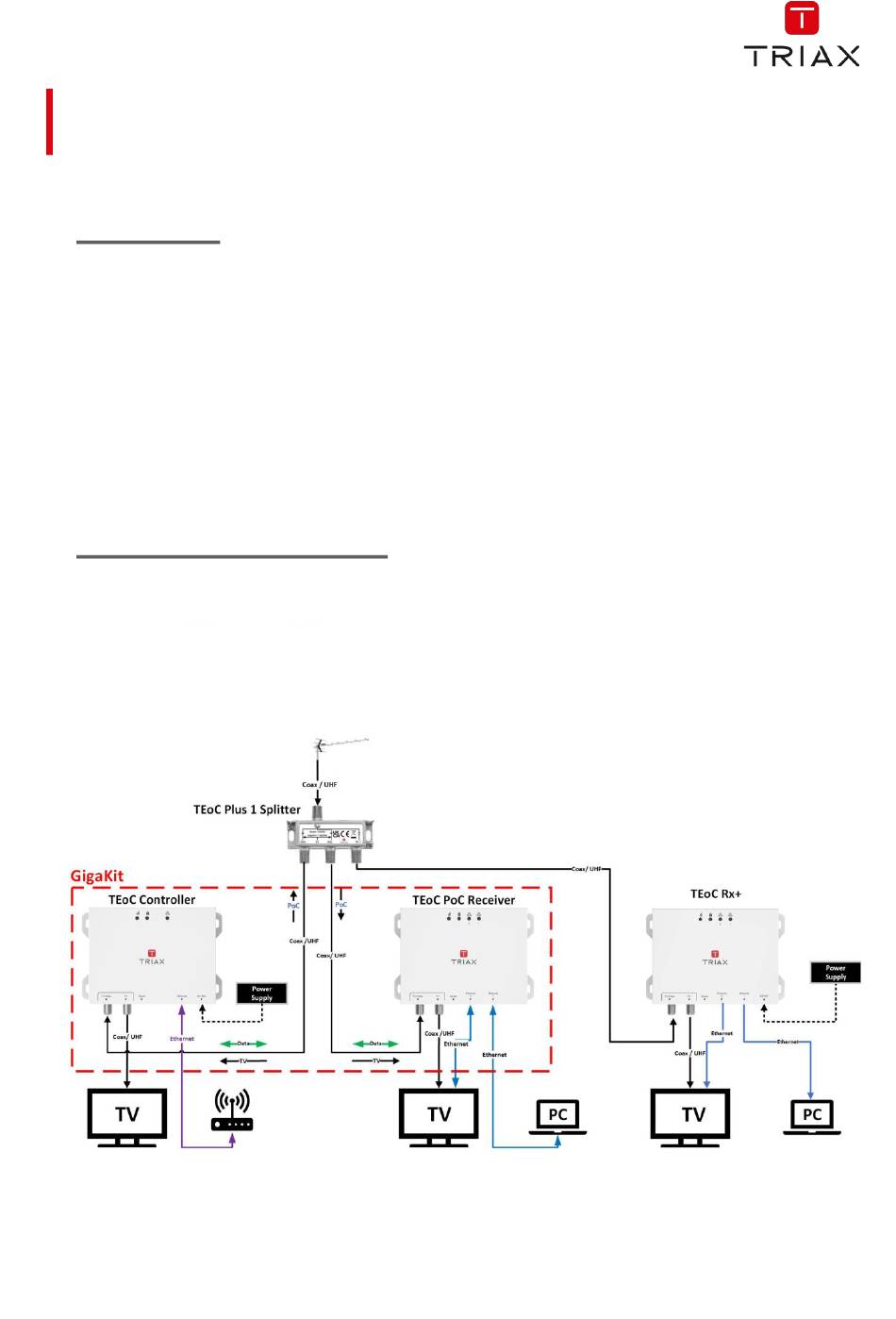

B. Connection Diagram:
Connect the TEoC Rx+ as shown in the diagram below and follow 'Section E'
to pair the devices:
Part Number: 310502
