Installation Considerations:

See the Setup Guide for any details related to the steps in this guide; such as power
requirements, rack mounting considerations, and other more in-depth instructions.
The Setup Guide is available in the software kit, or via download at: http://www.avid.
com/US/support. Click the link titled Knowledgebase on the right side of the screen
and search for ISIS 5000 Setup Guide. You will need to download Adobe's Acrobat
Reader
or a similar PDF viewer before viewing the guide.
®
Unpack and make sure you have all of the components detailed in the section below
before you continue. A second person is recommended for lifting and securing the
system in place.

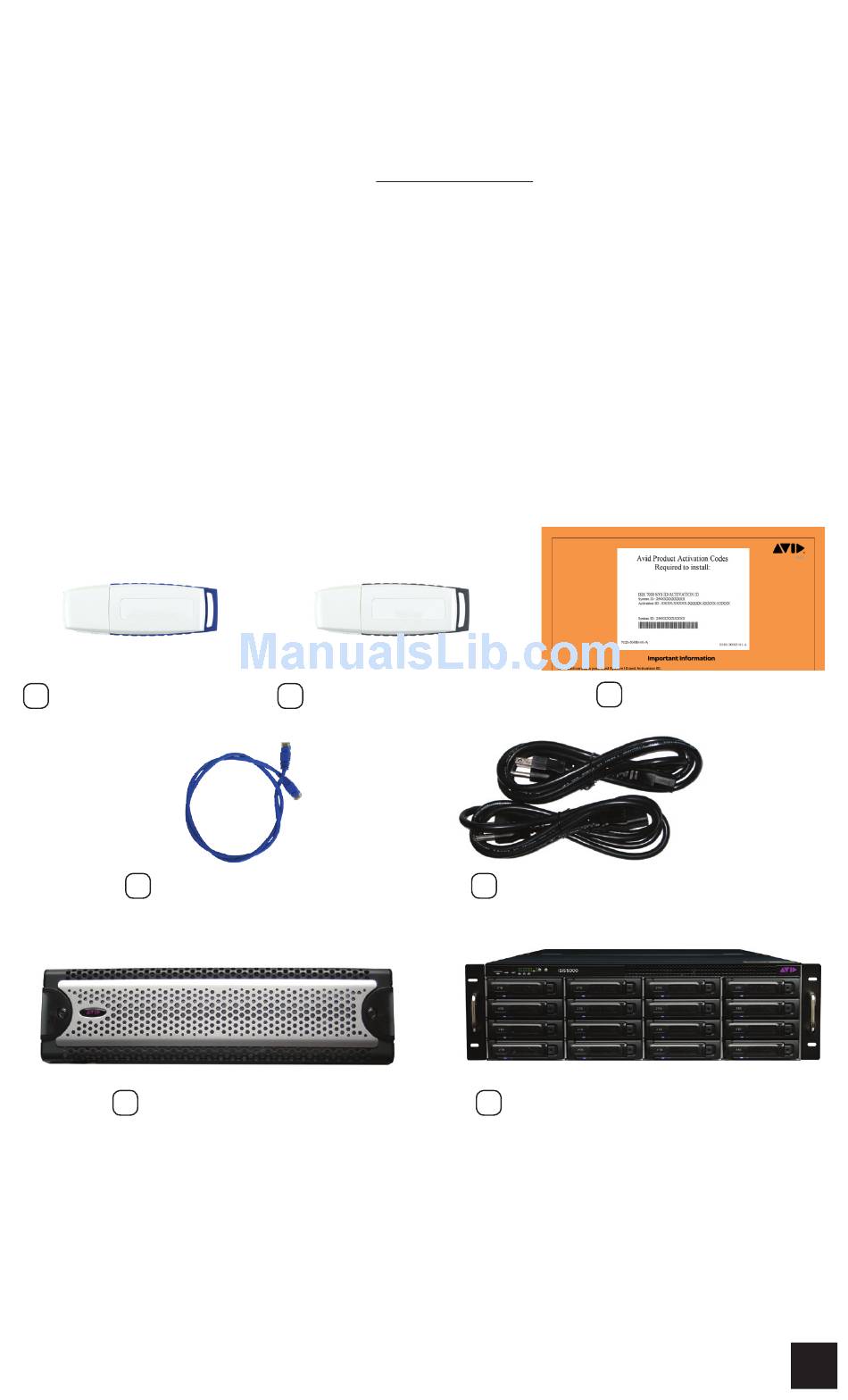

Included:
4 GB USB Drive (1)
16 GB USB Drive (1)
License (1)
Ethernet Cables (4)
Power Cables (2)
Front Bezel (1)
Engine (1) and Drives (16)
Not Included:
USB Keyboard, USB Mouse, Monitor, Workstation or Laptop (PC or Macintosh).
1
