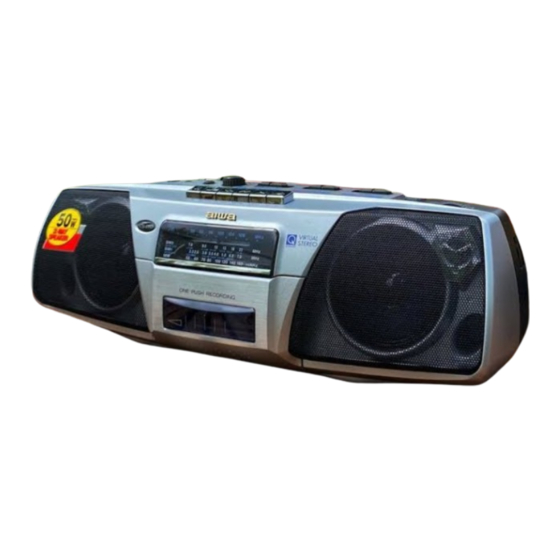

Stereo radio cassette recorder
Hide thumbs Also See for CS-130:
Table of Contents

Advertisement

Quick Links

Download this manual
CS-130
HCJ
SERVICE MANUAL
STEREO RADIO
BASIC TAPE MECHANISM : TN-21ZVC-1727
CASSETTE RECORDER
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-994-327-2T3).
S/M Code No. 09-994-327-2R4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiwa CS-130

Summary of Contents for Aiwa CS-130

  • Page 1 CS-130 SERVICE MANUAL STEREO RADIO BASIC TAPE MECHANISM : TN-21ZVC-1727 CASSETTE RECORDER This Service Manual is the "Revision Publishing" and replaces "Simple Manual" (S/M Code No. 09-994-327-2T3). S/M Code No. 09-994-327-2R4...

  • Page 2: Specifications

    SPECIFICATIONS • Design and specifications are subject to change without notice...

  • Page 3: Electrical Main Parts List

    TRANSISTOR ILLUSTRATION ELECTRICAL MAIN PARTS LIST REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION C403 87-010-545-080 CAP, ELECT 0.22-50V C404 87-010-545-080 CAP, ELECT 0.22-50V 87-A20-851-040 C-IC,TA2111F C405 87-010-401-080 CAP, ELECT 1-50V E C B 87-A20-569-010 IC,BA3308 C406 87-010-401-080 CAP, ELECT 1-50V...
  • Page 4 WIRING FM ANT MIC1 MAIN BOARD (PARTS SIE) SW401 VR501 SW302 SW202 SW101 Q SOUND FUNCTION FM MODE/OSC BAND LED605 PHONES OPE/BATT POWER RADIO FM MONO FM STEREO CNP302 STANDBY TAPE (-6) (-2) (-1) (LCH) (-5) (-3) (-4) (LCH) (RCH) (RCH) C112 12 13...

  • Page 5: Schematic Diagram

    SCHEMATIC DIAGRAM PVC1 MAIN C.B L101 VC1-4 BAR-ANT TC1-4 C138 L107,TC2 MW OSC MW ANT 0.01 L104 FM SENS. ADJ. 3.9P L101,TC4 L104,TC102 MW SENS. ADJ. MW FREQ. ADJ. L108,TC1 FM FREQ. ADJ. L108 SW OSC 270P SW ANT L102 L105,TC3 SW SENS.

  • Page 6: Voltage Chart

    VOLTAGE CHART...

  • Page 7: Electrical Adjustment

    ELECTRICAL ADJUSTMENT MAIN C.B L102 L108 L101 TC102 L104 L105 L107 L109 L301 < RADIO SECTION > 1. MW/SW IF Adjustment 5. FM Frequency Range Adjustment L109 ............... 455kHz L108 ................ 87MHz TC1 ................ 109MHz 2. MW Tracking Adjustment L101 ............... 600kHz 6.

  • Page 8: Practical Service Figure

    PRACTICAL SERVICE FIGURE < TAPE RECORDER SECTION > < RADIO SECTION > 1. Tape speed Adjustment Sensitivity: Condition: • Test tape: TTA-100 (IHF, THD 3%) FM Less than 25dB • Test point: PHONES JACK (S/N 20dB) MW Less than 60dB •...
  • Page 9 IC BLOCK DIAGRAM IC, TA2111F FM RF AM RF IN RF VCC FM OSC AM OSC DET OUT MPX IN LPF2 LPF1 L-OUT R-OUT DECODE BUFF DIVIDE MUTE ST/MO FM/AM LEVEL FM RF IN RF GND MIX OUT TUN LED ST LED QUAD LOW CUT...

  • Page 10: Mechanical Parts List

    SPR,BATT - 3 8Z-CS3-004-010 BOX,CASS 33 8Z-CS3-208-010 SPR,BATT + 4 8Z-CS4-051-010 CABI,FR EX ASSY 34 8Z-CS3-209-010 SPR,BATT +/- 5 84-CD8-083-010 BADGE,AIWA 30.5-5.2 2.5LEAD 35 8Z-CS3-008-010 LID,BATT 6 8Z-CS3-206-010 SPR,CASS 36 S1-027-000-101 DIAL DRUM 7 8Z-CS4-001-010 WINDOW,DIR 37 87-A90-146-010 SW,SL 1-1-2...

  • Page 11: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW 1/1 GRILL,SP L TN-21ZVC-1727 PLATE,CONTACT ANT P.C.B GRILL,SP R...

  • Page 12: Tape Mechanism Exploded View

    TAPE MECHANISM EXPLODED VIEW 1/1 TAPE MECHANISM PARTS LIST 1/1 LUG PLATE REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION 1 S1-921-030-4A0 HEAD BASE 36 S1-921-140-030 REC BUTTON LEVER 2 S1-821-030-070 AZIMUTH SPRING 37 S1-921-140-170 P.S.LEVER SPRING 3 S1-921-030-090 PANEL P SPRING 38 S1-921-073-040...

  • Page 13: Accessories/Package List

    ACCESSORIES/PACKAGE LIST REF. NO PART NO. KANRI DESCRIPTION 1 8Z-CS3-917-010 IB,H(EC-K)S 2 87-A80-089-010 AC CORD SET,HC...
  • Page 14 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111 Printed in Singapore 737004...
