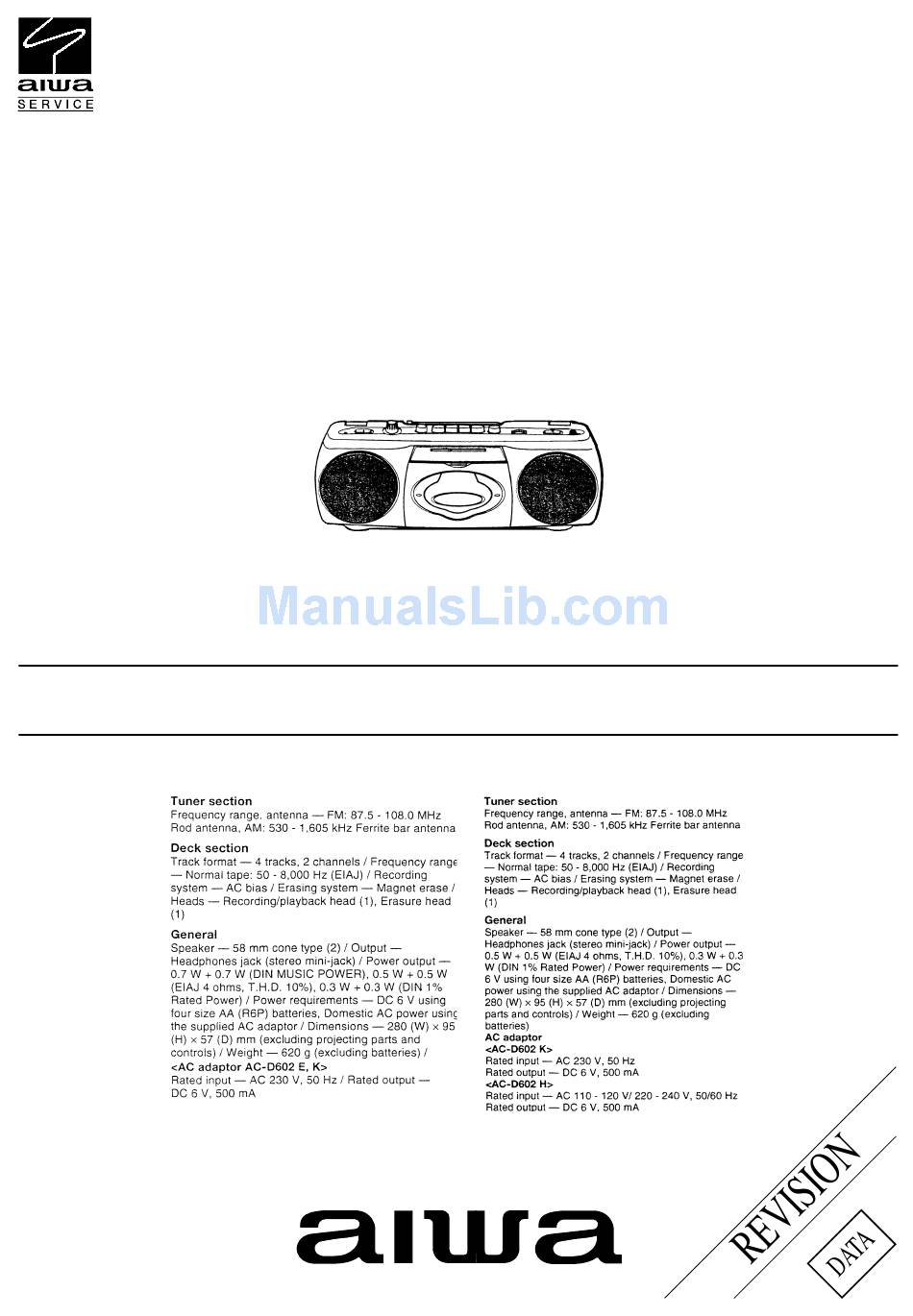

SERVICE MANUAL
STEREO RADIO
CASSETTE RECORDER
EZ, K MODEL
• Design and specifications are subject to
change without notice.
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
CS-P500 AEZ(S), AK(S), AHKJ(S), AHA(S), AHRJ(S)(S/M Code No. 09-003-340-8T2).
CS-P500
• BASIC TAPE MECHANISM : TN-9ZR-215
SPECIFICATIONS
S/M Code No. 09-003-340-8R2
HR, HK MODEL
• Design and specifications are subject to
change without notice.
AEZ(S), AK(S),
AHKJ(S), AHRJ(S),
AHA(S)
Advertisement
Table of Contents
Related Manuals for Aiwa CS-P500
Summary of Contents for Aiwa CS-P500
- Page 1 • Design and specifications are subject to • Design and specifications are subject to change without notice. change without notice. This Service Manual is the “Revision Publishing” and replaces “Simple Manual” CS-P500 AEZ(S), AK(S), AHKJ(S), AHA(S), AHRJ(S)(S/M Code No. 09-003-340-8T2). S/M Code No. 09-003-340-8R2...
-
Page 2: Electrical Main Parts List
ELECTRICAL MAIN PARTS LIST REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION C253 87-A10-168-010 CAP,CER 220P-50 K B C254 87-A10-168-010 CAP,CER 220P-50 K B 87-A20-955-010 IC,LA1828 C301 87-010-400-080 CAP, ELECT 0.47-50V 87-027-761-010 IC,AN7310 C302 87-010-400-080 CAP, ELECT 0.47-50V 86-YW2-618-010 IC,KA2209 C303... -
Page 3: Block Diagram
BLOCK DIAGRAM • Regarding connectors, they are not stocked as they are not the initial order items. The connectors are available after they are supplied from connector manufacturers upon the order is received. TRANSISTOR ILLUSTRATION E C B E C B 2SK439E(F) 2SC1923 SS8050... -
Page 4: Schematic Diagram
SCHEMATIC DIAGRAM MAIN C.B L104, PVC101(1/4) L105, PVC101(2/4) SW301 FM SENS. ADJ. FM FREQ. RANGE ADJ. QSOUND SW101 BAND FM ST Q - SOUND AM/FM FRONT END AM SENS. ADJ. AM IF ADJ. POWER FM IF ADJ. PHONES T106, PVC101(4/4) AM FREQ. RANGE ADJ. SW102 REC/PB FUNCTION... - Page 5 WIRING SW101 SW102 BAND FUNCTION SW202 MAIN C.B TAPE RADIO BEAT STEREO SW301 QSOUND SW201 VR302 PLAY VOLUME TC104 TC102 PVC101 PVC101 TC103 PVC101 TC101 PHONES PVC101 DC 6V MIC1 (MOTOR) NOTE BATTERY AAx4 DC 6V SPEAKER SPEAKER...
-
Page 6: Electrical Adjustment
ELECTRICAL ADJUSTMENT 1. SET-UP PROCEDURES... -
Page 7: Equipment Connection Diagram
2. EQUIPMENT CONNECTION DIAGRAM... -
Page 8: Practical Service Figure
PRACTICAL SERVICE FIGURE < TUNER SECTION > < DECK SECTION > < FM SECTION > Tape speed: 3000Hz+90Hz/-60Hz Quieting sensitivity: Less than 23dB Distortion: Less than 3% (PB) (THD 3%) (at 76/88MHz) Less than 8% (REC) Less than 23dB Wow & Flutter: Less than 0.45% (at 90/98/108MHz) Test tape:... -
Page 9: Ic Block Diagram
IC BLOCK DIAGRAM VOLTAGE CHART IC, KA2402 IC, AN7310 IC, MM1434XF IC, LA1828... -
Page 10: Mechanical Exploded View
MECHANICAL EXPLODED VIEW 1/1 TN-9ZR-215 P.C.B P.C.B P.C.B CUSH,MIC MIC1 P.C.B P.C.B P.C.B P.C.B... -
Page 11: Mechanical Parts List
MECHANICAL PARTS LIST 1/1 REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION 1 8A-CS8-005-010 WINDOW,CASS 19 8A-CS8-010-010 KEY,CASS REW 2 8A-CS8-033-010 BOX,CASS EX 20 8A-CS8-009-010 KEY,CASS FWD 3 8A-CS8-031-010 WINDOW,DIAL EX 21 8A-CS8-008-010 KEY,CASS STOP <AHRJSC,AKSC,AHKJSC> 22 88-CS8-212-010 SPR-E,BATT - 3 8A-CS8-030-010... -
Page 12: Tape Mechanism Exploded View
TAPE MECHANISM EXPLODED VIEW 1/1... -
Page 13: Tape Mechanism Parts List
TAPE MECHANISM PARTS LIST 1/1 REF. NO PART NO. KANRI DESCRIPTION REF. NO PART NO. KANRI DESCRIPTION 1 S1-877-013-120 CHASSIS ASSY 31 S1-867-020-040 RPH COLLAR 2 S1-877-120-010 MOTOR PULLEY 32 S1-877-033-010 SENSING PLATE ASSY 3 S6-002-070-100 MOTOR FR-410CA-12250T 33 S9-400-312-000 SPR,HEAD 4 S1-877-010-170 AUTO LEVER... - Page 14 2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 931196 Printed in Singapore...
