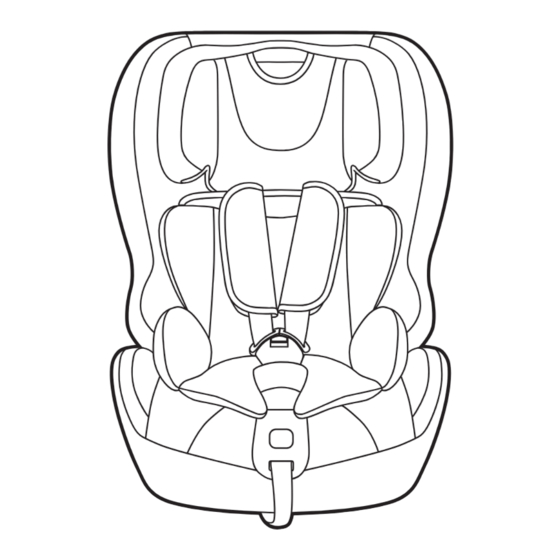

Phil & Teds columbus User Manual

Group i+ii+iii (9 – 36kg)
Hide thumbs
Table of Contents

Advertisement

Quick Links

The product has been approved according to the strict-
est European safety standards (ECE R 44/04) and is
suitable for Group I+II+III (9-36KG).
columbus
™
Group I+II+III (9 – 36kg)
Isofix Class B1
9-18 KG
SUITABLE FOR
UNIVERSAL /
SEMI-UNIVERSA L
BS01N-B/S
15-3 6 KG
BS01N-BE/SE
BS01N-BC/SC
04444313
BS01N-BCE/SCE

Advertisement

Table of Contents
loading

Related Manuals for Phil & Teds columbus

Summary of Contents for Phil & Teds columbus

  • Page 1 ™ Group I+II+III (9 – 36kg) Isofix Class B1 9-18 KG SUITABLE FOR UNIVERSAL / SEMI-UNIVERSA L The product has been approved according to the strict- BS01N-B/S 15-3 6 KG BS01N-BE/SE est European safety standards (ECE R 44/04) and is...

  • Page 2: Table Of Contents

    Contents Contents 4.0 Installation in the vehicle 17 - 19 4.1 tightening the harness Introduction 4.2 Installation of group I with ISOFIX & top tether Important for children who weigh 9 - 18kg 17 - 18 5 - 7 4.3 Installation of group I I for the children Know your car seat 8 - 9 who weigh 15 - 25kg.

  • Page 4: Introduction

    Introduction The columbus ™ complies with requirements applicable in market of sale Dear parents Thank you very much for purchasing our product. The function and design of this seat delivers the For rights & remedies, refer www.philandteds.com/warranty highest levels of safety and comfort when your child is in this child restraint.

  • Page 6: Important

    Important Important approved according to ECE R16 or an equivalent standard. • The product may be used on either the front or • WARNING: Read this instruction manual carefully. the back seat. However, we recommend that it is • WARNING: The correct fitting of the ISOFIX and fitted on the back seat.
  • Page 7 Important • It is recommended that the car seat should not • In hot weather the plastic and metal parts of the be used more than 5 years from the date of product will be hot. You should cover the seat production.

  • Page 8: Know Your Car Seat

    Know your car seat Headrest Handle 2. Shoulder Belt Guide 3. Harness Strap 4. Shoulder Pads 5. Buckle Pads 6. Recline Adjustment Knob 7. Headrest 8. Harness Slots 9. Baby Insert 10. Harness Buckle 11. Adjustment Device 12. Harness Adjustment Strap...
  • Page 9 Know your car seat 13. Top Tether Release Button 14. Top Tether Strap 15. Top Tether Hook 16. ISOFIX Connecter 17. Cover 18. Snap Button 19. Instructions 20. ISOFIX Release Button...

  • Page 10: Certification

    Suitability 1.0 Suitability as a child safety seat installed in a vehicle 1.1 Certification The child safety seat has been designed, tested Tested and certified and certified according to the requirements of the WELLDON / PG07-TT according to ECE* R 44/04 European Standard for Child Safety Equipment (ECE Child Safety Seat Group...

  • Page 11: Use In The Vehicle

    Use in the vehicle 2.0 Use in the vehicle You can use your child car seat as follows: 2.1 Use in the vehicle DO NOT use with a 2-point belt - use with a vehicle’s 3-point seatbelt. Please observe the regulations applicable to your particular country.
  • Page 12 Use in the vehicle 1. The use of a 2-point belt substantially against the direction of travel increases the risk of injury to your child no 1) in the event of an accident. with 2-point belt yes 2) 2. The safety belt must be approved to with 3-point belt ECE R 16 or a comparable standard (see yes 4)

  • Page 13: Securing Your Baby

    Securing your baby 3.0 Securing your baby Always secure your baby in the car seat using the harness. 3.1 Securing your baby using the Never leave your baby unattended in the car seat when placing it on elevated surfaces (e.g. a table, baby insert nappy changing unit, etc.).

  • Page 14: How To Adjust The Belts, Headrest And Seat Positions

    Securing your baby 3.4 Ten heights of the headrest 3.2 How to adjust the belts, headrest and seat positions • Group 1: The headrest can be set at five different heights with the shoulder belts axle in place. Groups 2 The correct belt height of the shoulder belts and 3: five additional positions once the shoulder belts is attained when the belt dissapears into the...

  • Page 15: Stepless Adjustment Device

    Securing your baby 3.5 Stepless adjustment device 3.6 Securing your baby using the harness • The recline angles of the car seat can be adjusted by front knob. (3d) • Loosen the harness straps by pressing the release • Rotate clockwise to add the recline angles, to button and pulling the harness straps as far as you reduce in the opposite, as shown by the icon on can.

  • Page 16: Tightening The Harness

    Securing your baby 3.7 Tightening the harness 3.8 Checklist to ensure your baby is buckled up correctly Pull the straps end straight towards you, not upwards or downwards. For the safety of your baby please check that... Please pay attention to the strap end. Whilst •...

  • Page 17: Installation In The Vehicle

    Installation in the vehicle 4.0 Installation in the vehicle 4.2 Installation of Group I with ISOFIX and Top tether for children 4.1 Tightening the harness who weigh 9-18kg Please do not leave your child unattended in First please check if there are 2 ISOFIX the child safety seat in the vehicle.
  • Page 18 Installation in the vehicle If the top tether is tightened correctly, a green • Pull out the top tether and press the tether strap release mark will turn up on the other end of the strap button to extend the strap until it is long enough to hook the user-ready tether anchorage behind.

  • Page 19: Installation Of Group I I For The Children

    Installation in the vehicle 4.3 Installation of Group II for children who weigh 15-25kg • Before the installation, please take away the Harness system of baby car seat. (4a) Note: The Baby insert, Harness strap, Harness buckle, Buckle pads and Shoulder pads should be stored away safely for future use (see 5.1 Removing the S-point harness system and cover).

  • Page 20: Installation Of Group Iii For Children

    Installation in the vehicle 4.4 Installation of Group III for children 22-36kg. • Adjust the height of the headrest to suit your child (3b). • Refer to the Group II installation instructions. Details please refer to P17. Please make sure that any lap strap is worn low down, so that the pelvis is firmly engaged.

  • Page 21: Care Instructions

    care instructions 5.0 Care instructions 5.1 Removing the 5-point harness system and cover • Unbutton the cover at back of the seat, and remove it (5a). • Push down the adjustment device and pull the harness strap out off the strap yoke to unlock it (5b). •...

  • Page 22: Refitting The 5-Point Harness System And Cover

    Care instructions 5.2 Refitting the 5-point harness system and cover • After washing, place the cover on the shell (5g). • Loosen the bottom part of the cover and pull the strap clip through the strap clip slot. Then pull the buckle clip through the buckle clip slot (5h) (5i).

  • Page 23: Cleaning

    Care Instructions 5.3 Cleaning 5.4 Warranty Please be sure to use only original seat covers, as The warranty period starts from the date of purchase and is the seat cover is important to the proper functioning valid for a period of 12 months. The warranty is only applicable of the system.
  • Page 24 Notice with positions approved as ISOFIX positions (as 1. This is a child restraint system approved detailed in the vehicle handbook), depending on Regulation No.44,04 standards, for three different the category of the child seat and of the fixture. types of installation: using the ISOFIX and Top Tether anchoring systems, the device is classified 4.
  • Page 25 Instructions...
  • Page 26 © Phil and Teds Most Excellent Buggy Company Ltd 2012. We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the phil~teds, adapt~survive!, ~, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our intellectual property.
  • Page 27 Instructions...
  • Page 28 AUS/NZL phil&teds 102-112 Daniell Street Newtown, Wellington 6021 New Zealand + 64 4 3800 833 USA/CAN phil&teds USA Inc 221 Jefferson Street Fort Collins, CO 80524 USA. 1 800 839 4985 phil&teds UK 71-73 Victoria St Windsor, Berkshire SL4 1EH, United Kingdom +44 (0) 20-30519264 USA/CAN phil&teds Spain...
