3. Place hands on each side of the monitor to tilt the LCD panel 20-degree angle and lift up to the highest position.

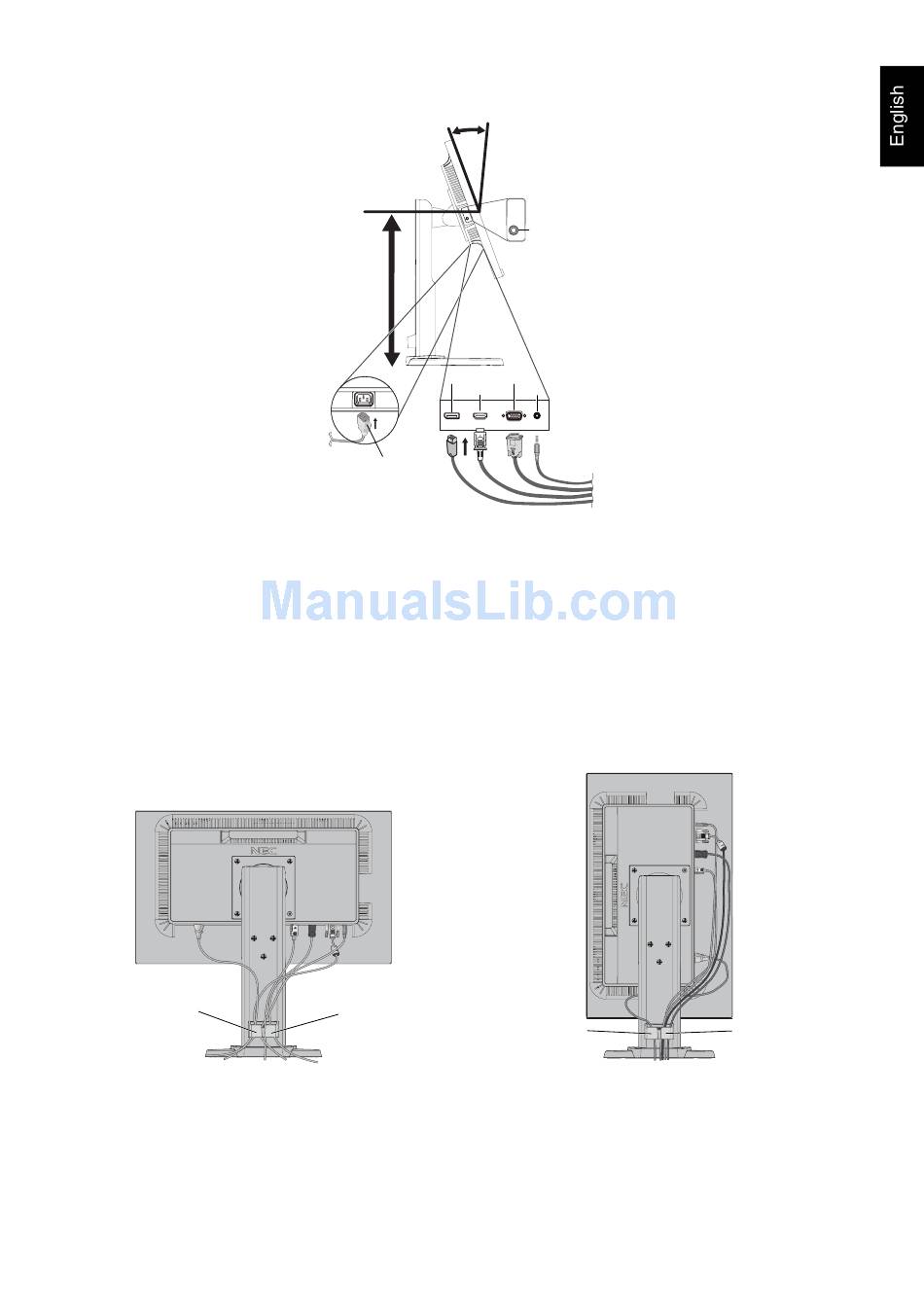

4. Connect all cables to the appropriate connectors (Figure C.1).
NOTE: Incorrect cable connections may cause abnormal operation, damage display quality/components of LCD module and/
or shorten the module's life.
Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
NOTE: Adjustment of the volume control as well as the equalizer to other settings than the center position may increase the
ear-/headphones output voltage and therefore the sound pressure level.
5. To keep the cables neatly organized, place them into the cable management system that is built into the stand.
Place the cables in the hooks fi rmly and evenly (Figure C.2 and Figure C.3).
NOTE: Cable cover is not removable.
6. Please check that you can still rotate, raise and lower the monitor screen after you have installed the cables.
Power Cord
Figure C.2
7. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet.
NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.
