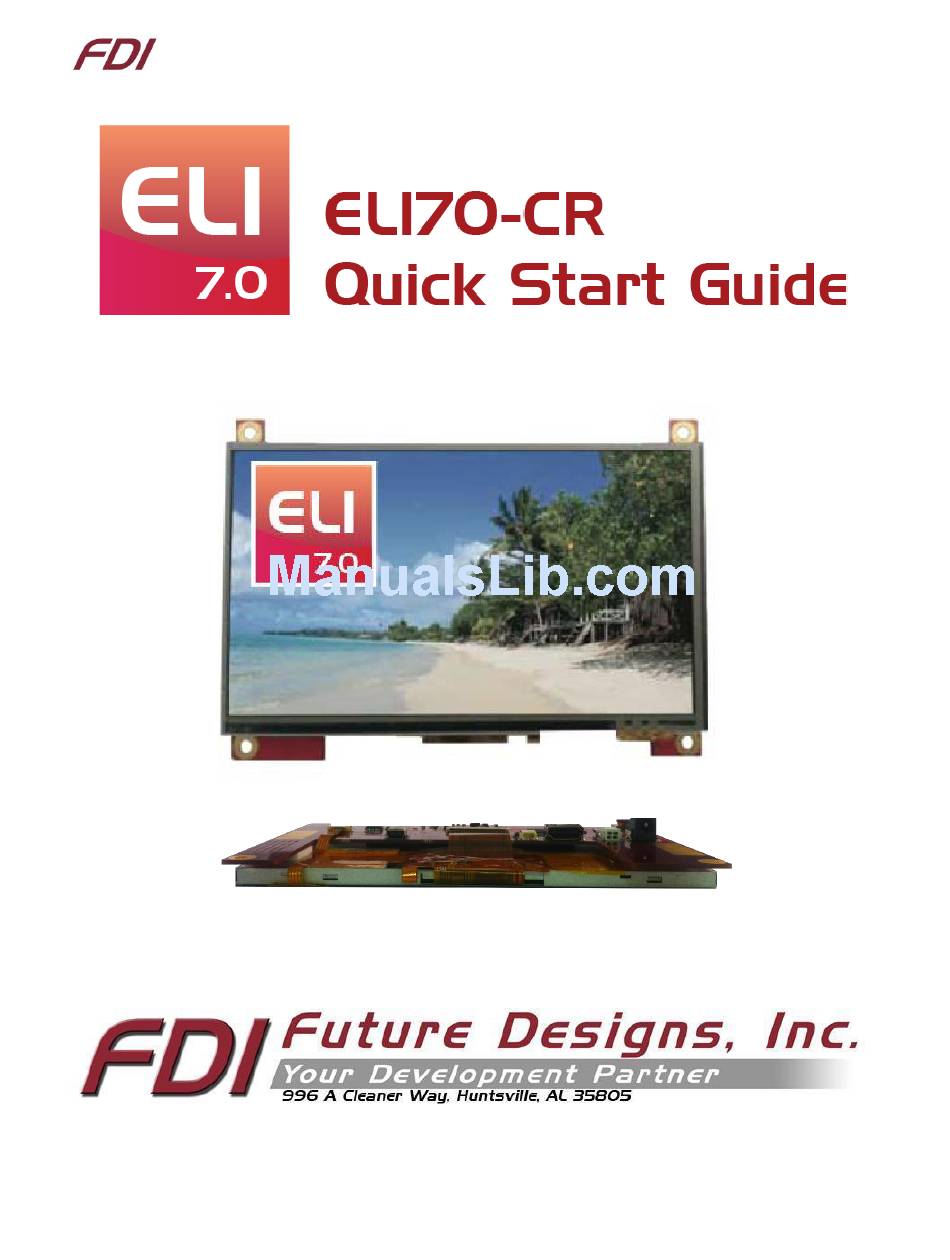

FDI ELI70-CR Quick Start Manual

Hide thumbs Also See for ELI70-CR:

Need help?

Do you have a question about the ELI70-CR and is the answer not in the manual?

Page 2 BeagleBone Black, Raspberry Pi and other popular Single Board Computers (SBC’s). ELI is designed, manufactured and tested here in the US, by FDI’s skilled production team, and every unit is fully supported by our US based team of engineers and technical specialists.
Page 3 ELI70-CR Quick Start Guide Page ELI70-CR Connections Power may be supplied either via the 2-pin terminal block J8 or via the 2.1mm power jack P2 (center positive) 9/18/2014 Revision 1.2 Copyright ©2014, Future Designs, Inc.
Page 4 Tape used for the LCD to PCB Attachment: 3M VHB 4959 ½” width ● 4 screw holes on the ELI70-CR accept up to #8 size screws for mounting into an enclosure ● All 4 screw holes connect to the system ground directly.
Page 5 T1071-P5P-ND to be used for quick demos or prototyping across the entire ELI Family. However, for volume production applications, the input power can be optimized for your particular ELI unit. The ELI70-CR requires 400 6. EDID Specifications EDID – what is it and why is it important to ELI users? In simple terms, EDID is the data that is communicated by ELI over the HDMI interface back to your SBC, which allows the SBC to automatically configure the display timings and screen resolution for a particular ELI display.
