User's Manual
ELI70-CR
Revision 1.05
Copyright ©2018, Future Designs, Inc., All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELI70-CR and is the answer not in the manual?

Questions and answers

Summary of Contents for FDI ELI70-CR

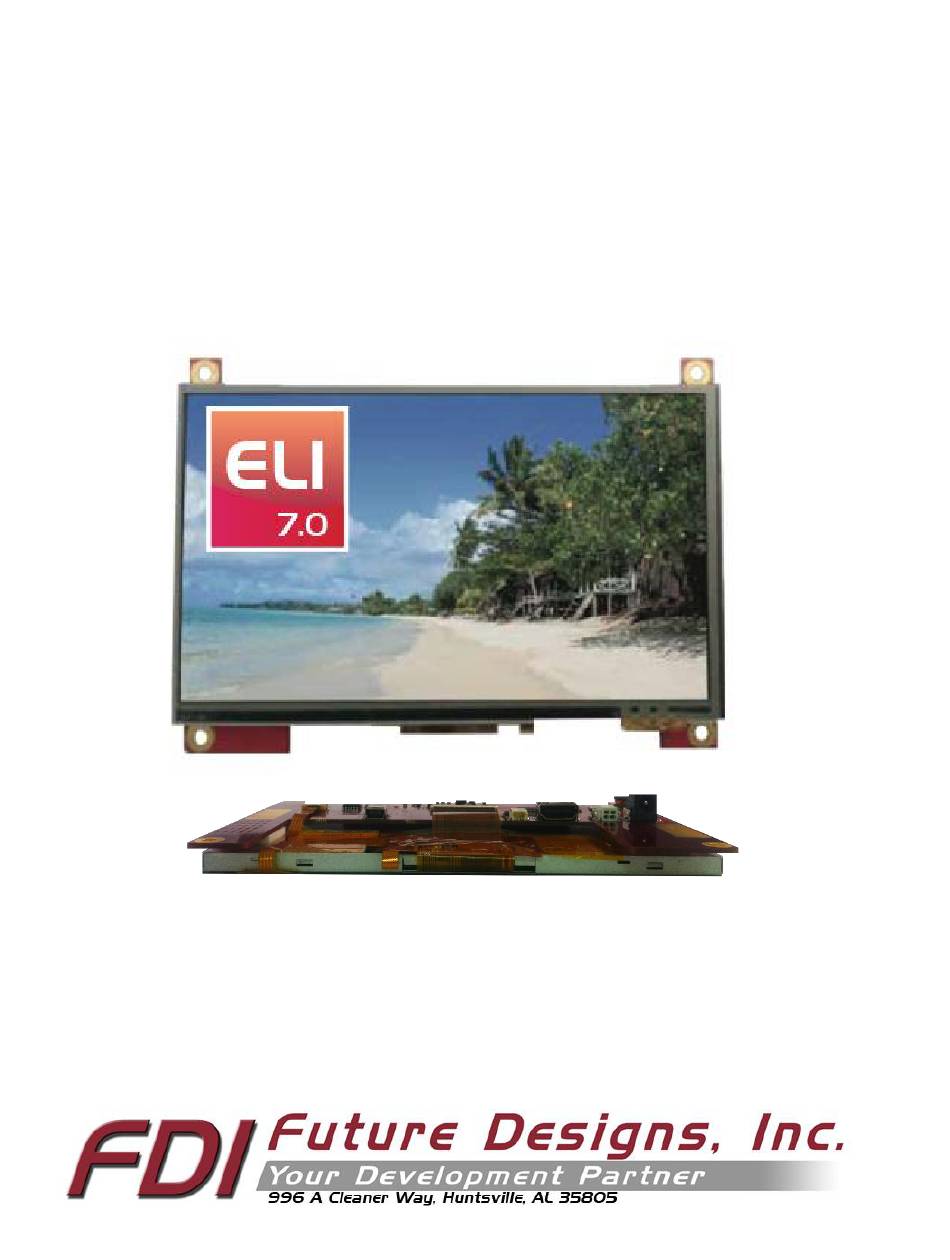

  • Page 1 User’s Manual ELI70-CR Revision 1.05 Copyright ©2018, Future Designs, Inc., All Rights Reserved...
  • Page 2: Important Legal Information

    ELI70-CR Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc.
  • Page 3: Table Of Contents

    User’s Manual ELI70-CR Important Legal Information .......................... 2 Introduction ............................4 ELI70-CR Box Contents ........................4 Optional Accessories Recommended for Use (Purchased Separately) ..........4 ESD Warning ............................5 Determining the Revision of your ELI ....................5 Technical Specifications ........................6 Connections ............................
  • Page 4: Introduction

    HDMI or DVI output. To submit a question about ELI’s compatibility with a platform or operating system that is not included in the table, contact a member of the FDI support team at Support@teamfdi.com.
  • Page 5: Esd Warning

    User’s Manual ELI70-CR ESD Warning Figure 1. Electrostatic Sensitive Device Our ELI units are shipped in a protective anti-static package. Do not subject the module to high electrostatic potentials. Exposure to high electrostatic potentials may cause damage to the boards that will not be covered under warranty. General practice for working with static sensitive devices should be followed when working with this device.
  • Page 6: Technical Specifications

    User’s Manual ELI70-CR Technical Specifications Table 1. Technical Specifications Screen Size: 7.0 inches (diagonal) Display Technology: a-Si TFT LCD Resolution: 800x480 (WVGA) Brightness: 280 nits (typ) Contrast Ratio: 500:1 (typ) Aspect Ratio: 15:9 Interface Input Mode: HDMI/DVI Colors: 16.7M (24 bit) Horizontal Viewing Angle: 70°...
  • Page 7: Connections

    On the ELI70-CR plug power into the (P2) connector. In cases where the barrel connector is not desired, you can use the alternate power input connector (J8) which supports directly plugging in 20- 26 AWG wire with maximum 5A current per contact.
  • Page 8: Extended Display Information Data (Edid)

    User’s Manual ELI70-CR On ELI70-CR units of Revision ≥2.3 and above, the input power range is expanded from +5 to 24V DC ± 5% (2.0A) for greater design flexibility. To verify that the ELI70-CR unit is correctly powered you may check input voltage with a Fluke multi-meter or scope by probing the +12V and GND contacts shown below.
  • Page 9: Pwm Control Of Backlight

    User’s Manual ELI70-CR PWM Control of Backlight Figure 4. PWM Backlight Control J5 mating connector housing information: • Manufacturer: Hirose • Part Number: DF12-3S-1.25C • Digi-Key Link: https://www.digikey.com/products/en?keywords=H2180-ND • Pre-terminated wires https://www.digikey.com/products/en?PPV=1811-9-566967 ELI provides an input so an external processor can control the display backlight to vary the display brightness or to reduce power consumption (the display backlight is typically one of the larger sources of power consumption in the system).
  • Page 10 PWM Dimming Input. If the external system is capable of directly driving the PWM dimming signal at 3.3VDC, there is no need to connect pin 1 to the cable. Figure 5. ELI70-CR Backlight Curve in Nits Copyright ©2024, 3/18/2024 Future Designs, Inc.
  • Page 11 ELI70-CR Figure 6. Raspberry Pi Signal and Ground The ELI backlight can be controlled from a Raspberry Pi. See Figure 6 for a wiring diagram. Our software is available on the FDI website at https://www.teamfdi.com/product-details/eli70-cr#software or you may copy the code from here:...
  • Page 12 User’s Manual ELI70-CR #include<iostream> #include<bcm2835.h> #include<string> using namespace std; #define LED RPI_GPIO_P1_12 // PWM pin number for backlight control #define RANGE 20 // Range for PWM steps #define CLOCK 192 // Clock rate int main(int argc, char *argv[]){ data = 0;...
  • Page 13: Mechanical View

    ● Tape used for the LCD to PCB Attachment: 3M VHB 4959 ½” width ● 4 screw holes on the ELI70-CR accept up to #8 size screws for mounting into an enclosure and connect to the system ground directly. ●...
  • Page 14: Support

    User’s Manual ELI70-CR Figure 9. Front View with Measurements Figure 10. Partial Profile View Support 12.1 Where to Get Help Online technical support is available at https://www.teamfdi.com/support/. 12.2 Useful Links • Future Designs, Inc. Forums: https://www.teamfdi.com/forum Copyright ©2024, 3/18/2024 Future Designs, Inc.
  • Page 15 User’s Manual ELI70-CR • ELI70-CR Product Page: https://www.teamfdi.com/product-details/eli70-cr/ • ELI Software User’s Manual: https://www.teamfdi.com/wp-content/uploads/ELI-Software- Users-Manual.pdf • Tell us about your ELI experience: https://www.teamfdi.com/edid/#edidform • EDID Information Page: https://www.teamfdi.com/edid/ Copyright ©2024, 3/18/2024 Future Designs, Inc. Page 15 of 15...
  • Page 16 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Future Designs, Inc. (FDI) ELI70-CR...
